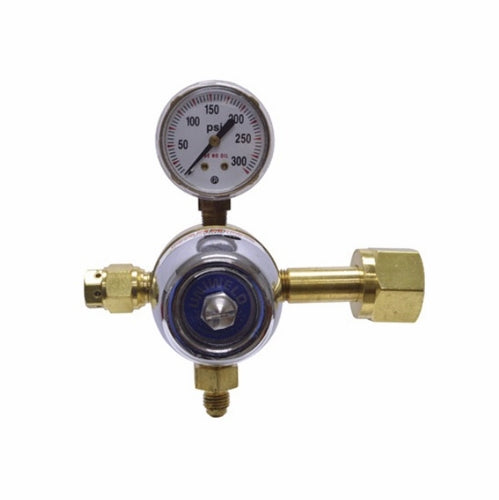

Uniweld R1349 CO2 regulator 5-175 psig (Single 1-1/2 inches gauge) G84

Product Description

Uniweld R1349 is a CO2 regulator intended for soft drink dispensing and general pressurizing applications. The regulator provides adjustable outlet pressure from 5 to 175 psig via an adjustable pressure screw with locking nut and displays system pressure on a single 1-1/2 inch gauge. It uses a CGA320 inlet and 1/4 inch SAE flare male outlet and includes a tri-layered reinforced neoprene diaphragm and built-in reverse flow check valve on CO2 models.

• Delivery pressure adjustable 5 to 175 psig with locking adjustment screw
• Single 1-1/2 inch gauge (G84; 300 psi) with rubber protective gauge boot
• CGA320 inlet, 1/4 inch SAE flare male outlet
• Tri-layered reinforced neoprene diaphragm
• Built-in reverse flow check valve on CO2 models

Product Highlights

Single-gauge CO2 regulator, 5-175 psig delivery, CGA320 inlet with 1/4 inch SAE flare outlet, replacement gauge G84 (300 psi)

Product Information

Standard Information

• Brand: UNIWELD
• Manufacturer Part Number: R1349
• Country of Origin: Unknown

Technical Specifications

• Brand: Uniweld
• Manufacturer Part Number: R1349
• Model / Series: 1300 Series
• Gas Type: CO2
• Delivery Pressure: 5-175 psig
• Gauge Size: 1-1/2" (single)
• Gauge Range: 0-300 psi
• Replacement Gauge: G84 (300 psi)
• CGA Inlet: CGA320
• Outlet Connection: 1/4 inch SAE flare (male)
• Diaphragm: Tri-layered reinforced neoprene (specified as 1-5/8" nominal seat/diaphragm dimension)
• Reverse Flow Check Valve: Built-in on CO2 models
• Inlet Filter: Not installed on CO2 models (porous metal inlet filter provided on nitrogen and air regulators)
• Adjustment: Adjustable pressure screw with locking nut
• Protective Features: Rubber protective gauge boot
• Intended Use: Soft drink dispensing systems and pressurizing applications (not for beer)
