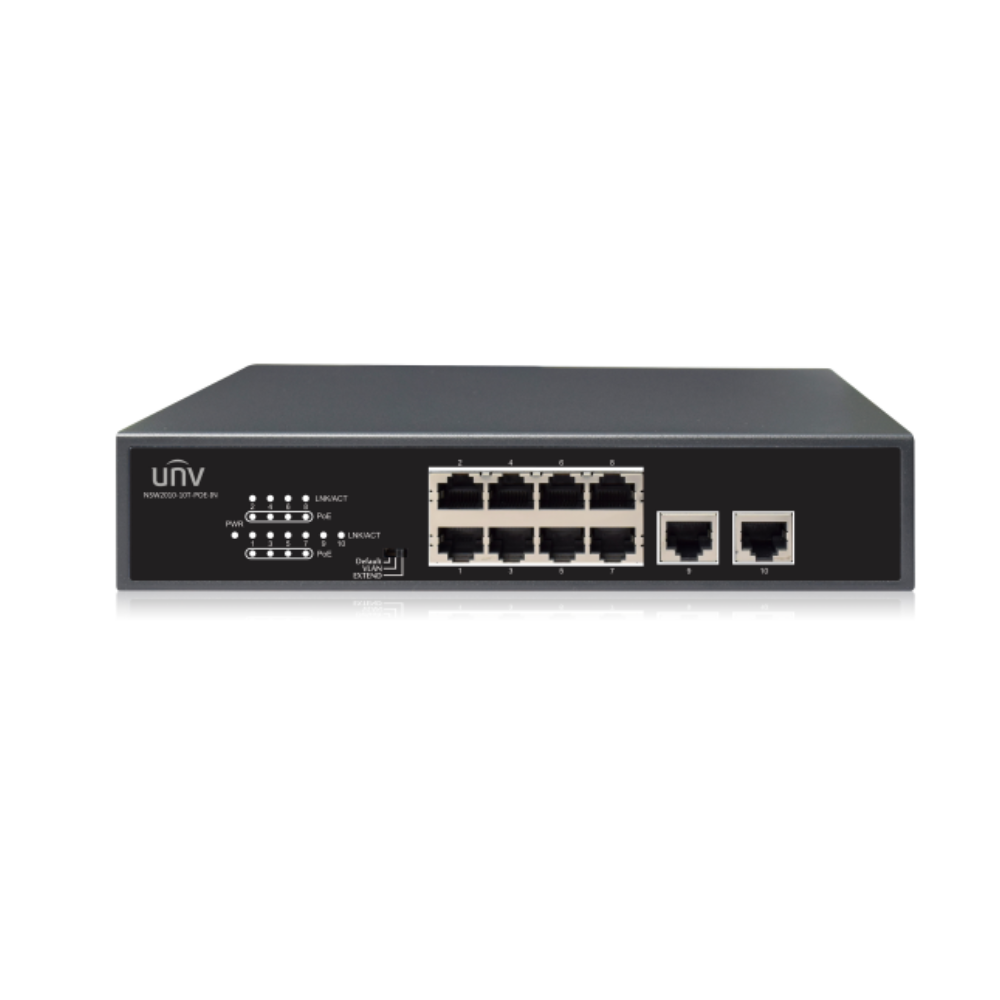

Uniview nsw2010-10t-poe-in 8-port Poe Network Switch

Product Description

The UNIVIEW nsw2010-10t-poe-in is a 10-port unmanaged PoE network switch designed for IP surveillance and small business network deployments. It provides eight 100 Mbps PoE-capable RJ45 ports alongside two standard 100 Mbps uplink ports, delivering 2 Gbps switching capacity and 1.49 Mpps forwarding performance. The switch operates across three selectable working modes — Default, VLAN, and EXTEND — allowing installers to match network behavior to the deployment scenario. All-metal housing and fanless cooling make it suited for rack or surface mounting in equipment rooms or remote install points where quiet operation is required.

This switch is intended for use in residential and light commercial IP camera installations, access control networks, and small office environments. In EXTEND (Surveillance mode), the switch stretches PoE transmission distance up to 250 meters, reducing the need for additional infrastructure in large properties or perimeter coverage layouts. In VLAN (Secure mode), all downlink ports communicate only with the uplink ports, isolating connected devices from each other — a common requirement in multi-tenant or secured surveillance networks. Network and security technicians are the primary trade installing this device.

Key Features

• Eight 100 Mbps PoE ports supporting IEEE 802.3af and IEEE 802.3at standards
• EXTEND mode enables PoE transmission up to 250 meters for long-run camera drops
• VLAN (Secure mode) isolates downlink ports, restricting communication to uplink ports only
• Fanless design with all-metal housing for silent, reliable operation
• 2 Gbps switching capacity with 1.49 Mpps forwarding performance
• MTBF rated at greater than 50,000 hours

Compatibility

Designed as an OEM-style replacement or new-install switch compatible with IEEE 802.3af and IEEE 802.3at powered devices including IP cameras, VoIP phones, and access control readers operating at 100 Mbps.

Installation Notes

Installation is typically performed by a licensed network technician or security systems integrator. Power down all connected PoE devices before swapping an existing switch to prevent surge damage to endpoints. Verify working mode selection matches the intended network topology before going live, as VLAN mode restricts inter-port communication by design. Follow local low-voltage wiring codes and structured cabling standards for all RJ45 terminations.

Technical Specifications

• Port Count: 10 total (8 PoE + 2 standard), 100 Mbps RJ45
• Switching Capacity: 2 Gbps
• Forwarding Performance: 1.49 Mpps
• PoE Standards: IEEE 802.3af, IEEE 802.3at
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x
• MAC Address Table: 4K
• Packet Buffer: 1.625 Mbit
• Max PoE Transmission Distance: 250 meters (EXTEND mode)
• Dimensions (W x D x H): 8.7 inches x 5.9 inches x 1.7 inches
• Weight: Less than 2.69 pounds
• Cooling: Fanless
• Housing: All metal
• MTBF: Greater than 50,000 hours
• Operating Humidity: 10% to 90% non-condensing

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: nsw2010-10t-poe-in
