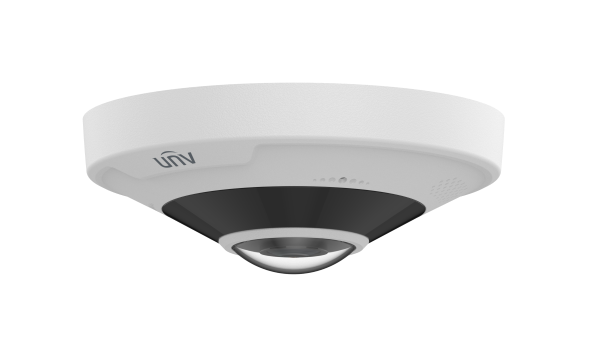

Uniview ipc86ceb-af18kc-i0 12MP Fisheye Network Camera

Product Description

The UNIVIEW ipc86ceb-af18kc-i0 is a 12-megapixel fixed fisheye network camera built for wide-area surveillance in demanding environments. It uses a 1/1.7-inch CMOS sensor paired with a 1.8 mm fixed lens to deliver a full 180-degree horizontal, vertical, and diagonal field of view with a maximum resolution of 4000 x 3000 pixels. Embedded 850 nm IR illuminators provide up to 15 meters of infrared coverage with 360-degree fill-in light. The camera supports Ultra 265, H.265, H.264, and MJPEG compression and outputs triple simultaneous video streams. A built-in dual microphone and speaker enable two-way audio. It is installed by licensed security integrators and surveillance technicians in commercial and institutional settings.

This camera is suited for ceiling, table, or wall-mount deployment in retail, transportation, warehouses, lobbies, and other large open areas where a single device must cover an entire zone. Multiple hardware and software decoding modes allow flexible live view layouts including fisheye, panorama, and virtual PTZ views. The heatmap analytics function works with a compatible video management platform to visualize movement patterns in real time. Edge storage via microSD card up to 512 GB supports local recording independent of network storage, and ANR and NAS (NFS) network storage options are also available.

Key Features

• 12 MP (4000 x 3000) resolution with 1/1.7-inch CMOS sensor
• Full 180-degree field of view in all planes via 1.8 mm fixed fisheye lens
• 360-degree IR fill-in light reaching up to 15 meters, auto or manual control
• Ultra 265, H.265, H.264, and MJPEG compression with triple video streams
• Built-in dual microphone and speaker for two-way audio
• IK10 vandal resistance and IP67 weatherproof protection
• Heatmap statistical analysis, cross-line detection, and intrusion detection

Compatibility

Supports ONVIF Profile S, Profile G, Profile T, and Profile M for integration with compatible video management systems. Client software includes EZStation desktop application and mobile app. Compatible web browsers for plug-in live view include IE 10 and later, Chrome 45 and later, Firefox 52 and later, and Edge 79 and later.

Installation Notes

Installation should be performed by a qualified security technician familiar with IP camera deployment and low-voltage cabling practices. Power down or disconnect PoE switch ports before connecting or disconnecting the camera. The camera accepts DC 12 volts or PoE (IEEE 802.3af) power; verify the power source before installation. Mount location and cable routing should comply with applicable local electrical and building codes.

Technical Specifications

• Resolution: 12 MP (4000 x 3000)
• Sensor: 1/1.7-inch CMOS
• Focal Length: 1.8 mm
• Field of View: 180 degrees horizontal, 180 degrees vertical, 180 degrees diagonal
• IR Illumination Distance: 15 meters (49.3 feet)
• IR Wavelength: 850 nm
• Min. Illumination: 0.03 Lux color (F2.0, AGC ON), 0 Lux with IR
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Video Bit Rate: 128 Kbps to 16 Mbps
• Audio Compression: G.711U, G.711A
• Edge Storage: MicroSD, up to 512 GB
• Network Interface: 1 x RJ45 10M/100M Base-TX Ethernet
• Power Input: DC 12 volts plus or minus 25%, PoE (IEEE 802.3af)
• Power Consumption: Max. 12.0 W
• Dimensions: 5.9 inches diameter x 2.2 inches height
• Weight: 1.16 pounds
• Material: Metal and Plastic
• Working Temperature: -22 degrees F to 140 degrees F (-30 degrees C to 60 degrees C)
• Working Humidity: 95% RH or less, non-condensing
• Surge Protection: 4 KV
• Ingress Protection: IP67 (IEC 60529)
• Impact Protection: IK10 (IEC 62262)
• Certifications: CE-EMC, FCC Part 15B, CE LVD, CB (IEC 62368-1), UL/CUL (UL 62368-1), CE-RoHS, WEEE, ONVIF Profile S/G/T/M

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc86ceb-af18kc-i0
