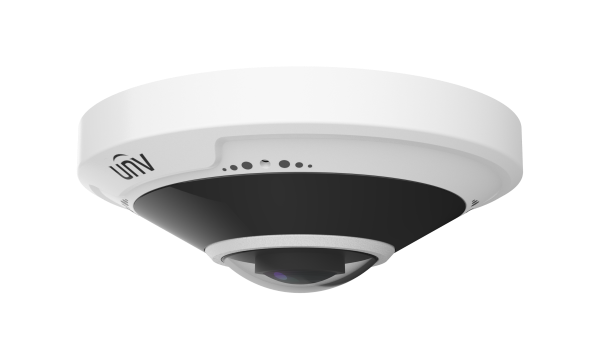

Uniview ipc815sb-adf14k-i0 5MP Fisheye Network Camera

Product Description

The UNIVIEW ipc815sb-adf14k-i0 is a 5-megapixel fixed IR fisheye network camera designed for indoor and outdoor IP surveillance installations. Built around a 1/2.8-inch CMOS sensor, it delivers full 5 MP resolution at up to 30 frames per second with support for Ultra 265, H.265, H.264, and MJPEG compression formats. The 120 dB true wide dynamic range handles high-contrast lighting scenes without washing out detail. Licensed CCTV technicians and low-voltage security installers are the primary trades for this unit.

This camera is suited for wide-area coverage in commercial and residential applications where a single-lens fisheye view eliminates blind spots. The fixed-lens fisheye design makes it a practical choice for lobbies, retail floors, server rooms, and open warehouse spaces. Built-in dual microphones provide onboard audio capture, and the alarm I/O configuration supports basic intrusion detection integration. Power is supplied over the network cable via PoE, simplifying cable runs and eliminating a separate power circuit.

Key Features

• 5 MP resolution at 2592 x 1944 pixels, up to 30/25 fps
• 1/2.8-inch CMOS sensor with 120 dB true WDR for strong-light scenes
• Ultra 265, H.265, H.264, and MJPEG compression support
• Smart IR illumination with up to 10 meters (32.8 feet) IR distance
• Built-in dual microphones with 1-in/1-out audio I/O and 1-in/1-out alarm I/O
• MicroSD card slot supporting up to 512 GB local storage
• IK10 vandal-resistant construction and IP66 weatherproof rating
• PoE power supply eliminates separate power wiring

Compatibility

Designed as an OEM-style network camera compatible with standard ONVIF-compliant NVR systems and PoE network switches that supply 802.3af or 802.3at power.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with local electrical codes and NEC Article 725 for low-voltage wiring. Power down the PoE switch port before connecting or disconnecting the camera. Verify the mounting surface can support the camera and conduit entry requirements before drilling. Do not expose the unit to voltages outside its rated PoE input range.

Technical Specifications

• Resolution: 5 MP (2592 x 1944)
• Frame Rate: 30/25 fps
• Image Sensor: 1/2.8-inch CMOS
• Compression: Ultra 265, H.265, H.264, MJPEG
• Wide Dynamic Range: 120 dB true WDR
• IR Distance: Up to 10 meters (32.8 feet)
• Audio I/O: 1 in / 1 out
• Alarm I/O: 1 in / 1 out
• Local Storage: MicroSD, up to 512 GB
• Ingress Protection: IP66
• Impact Resistance: IK10
• Power Supply: PoE

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc815sb-adf14k-i0
