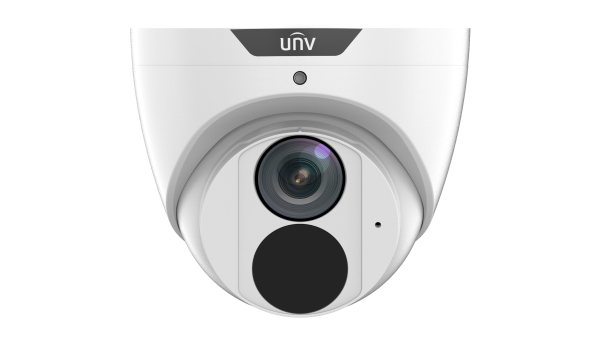

Uniview ipc3618sr3-adf28km-g 8MP Ir Eyeball Network Camera

Product Description

The UNIVIEW ipc3618sr3-adf28km-g is an 8-megapixel fixed IR eyeball-style IP network camera designed for professional security installations. Built around a 1/2.7-inch CMOS sensor, it delivers up to 3840x2160 resolution at 20 fps and supports multiple lower-resolution modes down to 1080p at 30 fps. Compression options include Ultra 265, H.265, H.264, and MJPEG, keeping bandwidth and storage demands manageable. Smart IR illumination reaches up to 30 meters, and the 120 dB true WDR engine maintains detail in high-contrast lighting. Easystar low-light technology achieves color imaging down to 0.005 Lux, making it suitable for dimly lit environments.

This camera is used in commercial and residential IP video surveillance systems where fixed wide-angle coverage is required. It supports corridor mode (9:16 aspect ratio), which is useful for hallways, stairwells, and narrow passages. Power is supplied via PoE, eliminating a separate power run. The built-in microphone adds audio capture without additional hardware. On-board MicroSD storage supports cards up to 256 GB for edge recording. Installation professionals in low-voltage and electronic security trades are the primary installers of this unit.

Key Features

• 8 MP 1/2.7-inch CMOS sensor with up to 3840x2160 at 20 fps
• Smart IR with up to 30 meters of illumination distance
• 120 dB true WDR for clear imaging in strong backlight or mixed-light scenes
• Easystar low-light technology rated down to 0.005 Lux (color, F1.6, AGC ON) and 0 Lux with IR active
• Ultra 265, H.265, H.264, and MJPEG compression support
• 9:16 corridor mode, built-in microphone, and MicroSD slot up to 256 GB
• IP67-rated housing and PoE power input

Compatibility

Designed as an OEM-style fixed eyeball IP camera for use within ONVIF-compatible network video recorder systems and PoE network infrastructure supporting IEEE 802.3af or 802.3at standards.

Installation Notes

Installation is typically performed by licensed low-voltage or electronic security technicians. Before mounting or wiring, de-energize the PoE switch port or injector feeding the camera. The pan, tilt, and rotate adjustment range allows precise aiming after mounting — pan 0 to 360 degrees, tilt 0 to 80 degrees, and rotate 0 to 360 degrees. Verify that the MicroSD card is seated before securing the housing cover, as access may require disassembly after install.

Technical Specifications

• Max Resolution: 8 MP (3840x2160)
• Sensor: 1/2.7-inch CMOS
• Frame Rates: 8 MP at 20 fps; 5 MP at 30/25 fps; 4 MP at 30/25 fps; 1080p at 30/25 fps
• Min. Illumination: 0.005 Lux color (F1.6, AGC ON); 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 to 1/100000s
• IR Distance: Up to 30 meters (98.4 feet)
• WDR: 120 dB true WDR
• Compression: Ultra 265, H.265, H.264, MJPEG
• Adjustment Angle: Pan 0 to 360 degrees, Tilt 0 to 80 degrees, Rotate 0 to 360 degrees
• Storage: MicroSD up to 256 GB
• Power Input: PoE
• Ingress Protection: IP67
• Audio: Built-in microphone

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc3618sr3-adf28km-g
