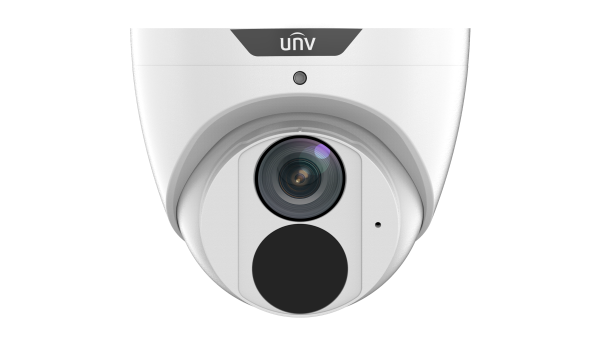

Uniview ipc3615sr3-adf28km-g 5MP Ir Eyeball Camera

Product Description

The UNIVIEW ipc3615sr3-adf28km-g is a 5-megapixel fixed IR eyeball network camera designed for IP-based video surveillance installations. Built around a 1/2.7-inch CMOS sensor, it delivers full 5 MP resolution with a wide dynamic range of 120 dB, making it well-suited for scenes with challenging lighting conditions. The integrated IR-cut filter with auto switch (ICR) provides reliable day-to-night transition, and the Easystar low-light mode achieves color imaging down to 0.003 Lux, with true 0 Lux capability when IR illumination is active. Security system installers and integrators are the primary trades for this product.

This camera is intended for indoor or outdoor fixed-mount surveillance applications in residential and light commercial settings. The eyeball-style housing supports pan adjustment from 0 to 360 degrees, tilt from 0 to 80 degrees, and rotation from 0 to 360 degrees, allowing precise aim after mounting. It suits entry points, parking areas, retail floors, and similar coverage zones where a discreet dome-profile camera is preferred. Network-based deployment means it integrates into existing IP video management systems without analog infrastructure.

Key Features

• 5 MP maximum resolution via 1/2.7-inch CMOS sensor
• 120 dB wide dynamic range for high-contrast scene handling
• Easystar low-light color imaging at 0.003 Lux (F1.6, AGC ON)
• 0 Lux IR capability for complete darkness operation
• ICR day/night filter with automatic switching
• Full 360-degree pan and rotate adjustment with 80-degree tilt range
• Auto and manual shutter control from 1 to 1/100000 second

Compatibility

Designed as an OEM-style fixed network camera for integration into IP-based video surveillance systems supporting standard network camera protocols.

Installation Notes

Installation is performed by a licensed security systems integrator or low-voltage technician. Power down or disconnect the network feed before wiring the camera to the mounting surface. Confirm the network switch or injector supports the required PoE standard before connecting. Follow all applicable local low-voltage and building codes during cable routing and junction box work.

Technical Specifications

• Max Resolution: 5 MP
• Sensor: 1/2.7 inch CMOS
• Min. Illumination (Color): 0.003 Lux (F1.6, AGC ON)
• Min. Illumination (IR): 0 Lux
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 to 1/100000 second
• Pan Adjustment: 0 to 360 degrees
• Tilt Adjustment: 0 to 80 degrees
• Rotate Adjustment: 0 to 360 degrees
• Signal-to-Noise Ratio: greater than 52 dB
• Wide Dynamic Range: 120 dB

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc3615sr3-adf28km-g
