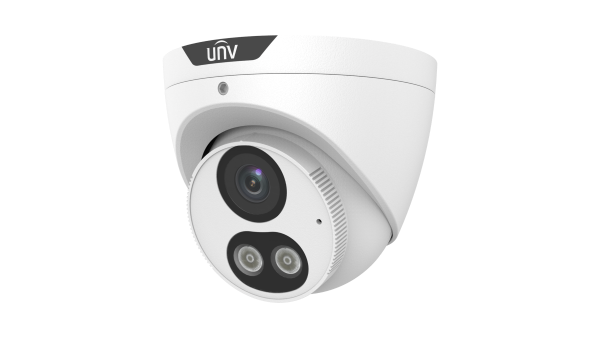

Uniview ipc3615se-adf28km-wl-i0 5MP Turret Network Camera

Product Description

The UNIVIEW ipc3615se-adf28km-wl-i0 is a 5MP fixed warm light turret network camera built for continuous, full-color surveillance. It uses a 1/2.7-inch CMOS sensor to deliver up to 2880x1620 resolution at 30 frames per second and supports multiple compression formats including Ultra 265, H.265, H.264, and MJPEG. ColorHunter technology maintains full-color imaging around the clock without switching to black-and-white in low light. With 120 dB true Wide Dynamic Range (WDR), the camera handles high-contrast scenes such as direct sunlight and deep shadow in the same frame. Installed by security integrators and commercial facility technicians, this unit fits both new builds and retrofit deployments.

This camera is suited for perimeter protection in commercial and institutional settings where accurate event detection is required. Intelligent intrusion detection features include cross-line, intrusion, enter area, and leave area detection. Target classification filters out false alarms triggered by leaves, birds, and lighting changes, focusing alerts on humans, motor vehicles, and non-motor vehicles. People flow counting and crowd density monitoring make it appropriate for retail, transit, and public space applications. A built-in microphone and MicroSD card slot supporting up to 512 GB provide onboard audio capture and local storage without additional hardware.

Key Features

• 5MP resolution at 2880x1620 at 30/25 fps with 1/2.7-inch CMOS sensor
• ColorHunter technology delivers 24-hour full-color imaging using built-in warm light
• 120 dB true WDR for clear imaging in high-contrast lighting conditions
• Intelligent perimeter protection with human, motor vehicle, and non-motor vehicle classification
• Built-in microphone and MicroSD slot supporting up to 512 GB local storage
• IP67-rated weatherproof housing suitable for outdoor installation
• Supports 9:16 corridor mode for stairwells, hallways, and narrow passages

Compatibility

Designed as an OEM-style network camera compatible with ONVIF-compliant video management systems and NVR platforms that support Ultra 265, H.265, or H.264 streams.

Installation Notes

Installation should be performed by a qualified low-voltage security technician familiar with IP camera deployment and network configuration. Power down the network switch port or PoE injector before making wiring connections. Mount the camera to a structurally sound surface using the appropriate hardware for the substrate. Verify local electrical and building codes before routing cable through walls or ceilings.

Technical Specifications

• Max Resolution: 5 MP (2880 x 1620)
• Sensor: 1/2.7-inch CMOS
• Frame Rate: 30/25 fps
• Compression: Ultra 265, H.265, H.264, MJPEG
• Min. Illumination: Color: 0.001 Lux (F1.0, AGC ON)
• Shutter: Auto/Manual, 1 to 1/100000 s
• WDR: 120 dB
• S/N Ratio: Greater than 56 dB
• Adjustment Angle: Pan: 3 degrees to 360 degrees, Tilt: 0 degrees to 80 degrees, Rotate: 3 degrees to 360 degrees
• Local Storage: MicroSD, up to 512 GB
• Ingress Protection: IP67
• Audio: Built-in microphone

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc3615se-adf28km-wl-i0
