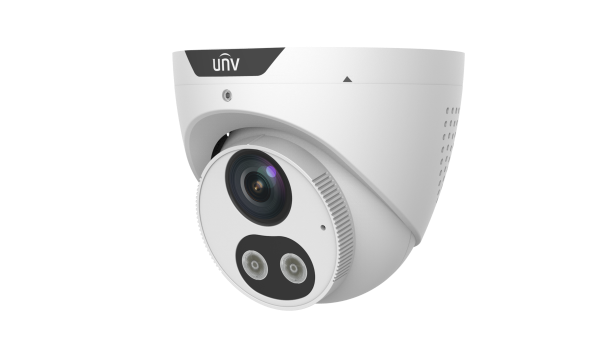

Uniview ipc3614sb-adf28kmc-i0 4MP Turret Network Camera

Product Description

The UNIVIEW ipc3614sb-adf28kmc-i0 is a 4-megapixel fixed turret network camera designed for professional IP video surveillance installations. Built around a 1/2.7-inch CMOS sensor, it delivers clear, detailed imaging at resolutions up to 2688 x 1520 at 30 frames per second. The dual-light design supports both white light and infrared illumination, giving installers flexibility for full-color or low-light monochrome coverage depending on scene requirements. Video compression options include Ultra 265, H.265, H.264, and MJPEG, allowing network bandwidth optimization to suit the recording infrastructure on site.

This camera is suited for commercial and light-industrial surveillance deployments where perimeter monitoring and intrusion detection are priorities. The Tri-Guard platform integrates smart intrusion prevention analytics directly in the camera, reducing reliance on server-side processing. Typical install scenarios include building entrances, parking areas, and interior common spaces requiring continuous 24-hour coverage. Licensed security integrators and low-voltage installation technicians are the primary trades responsible for mounting, cabling, and commissioning this unit.

Key Features

• 4 MP resolution at up to 2688 x 1520 pixels, 30 fps
• 1/2.7-inch CMOS sensor for reliable low-light performance
• Dual-light illumination: white light and infrared in a single unit
• Ultra 265, H.265, H.264, and MJPEG compression supported
• Built-in smart intrusion prevention: cross line, intrusion, enter area, and leave area detection
• Multiple resolution modes: 4 MP, 3 MP, and 1080p selectable

Compatibility

Designed as an OEM-style replacement or new-install turret network camera compatible with standard IP video management systems supporting ONVIF-profile network cameras.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with local codes and NEC Article 725 for Class 2 wiring. Power down the network switch port or PoE injector before connecting or disconnecting the camera. Ensure the mounting surface is rated for the camera weight and that all cable penetrations are sealed to maintain the enclosure integrity rating. Verify network switch PoE wattage allocation before commissioning.

Technical Specifications

• Resolution: 4 MP (2688 x 1520)
• Sensor: 1/2.7-inch CMOS
• Frame Rate: 30/25 fps at 4 MP, 3 MP, and 1080p
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Illumination Type: Dual-light (white light and infrared)
• Analytics: Cross line, intrusion, enter area, leave area detection

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc3614sb-adf28kmc-i0
