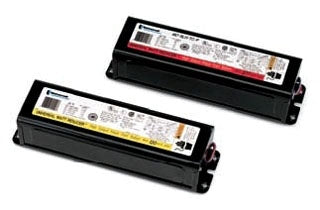

Universal Lighting Technologies 931-LH-TC-P-000I Fluorescent Electromagnetic Ballast 120V (2-F72VHO/PG17) Replacement MPN

Product Description

The Universal Lighting Technologies 931-LH-TC-P-000I is a fluorescent electromagnetic ballast designed for use with two lamps. This ballast operates at one hundred twenty volts and has a maximum output current ranging from fifteen hundred to fifteen hundred eighty milliamperes. It supports lamp wattages of seventy-two to ninety-six watts and is thermally protected for safety.

• Lag type circuit for reliable performance
• Approval by UL and CSA for quality assurance
• Designed for straight lamp style usage

Product Highlights

This ballast is suitable for various lamp types including F72PG17 and F96T12VHO. It has a rapid starting type and is effective at managing power consumption.

Product Information

Standard Information

• Manufacturer: Universal Lighting Technologies
• UPC: 76838605769

Technical Specifications

• Approval: UL, CSA
• Ballast Factor: 0.82/0.8/0.83/0.75/0.93
• Circuit Type: HPF
• Frequency Rating: 60 Hz
• Input Current: 2.77/3.25/2.88/3.83/3.09 Ampere
• Input Power: 303/380/333/431/361 W
• Input Voltage: 120 V
• Lamp Style: Straight
• Lamp Type: F72PG17, F72T12VHO, F96PG17, F96PG17ES, F96T12VHO, F96T12VHOES
• Lamp Wattage: 72/96 W
• Maximum THD: 20/32 Percent
• Minimum Starting Temperature: -20 Deg F, 60 Deg F
• Number Of Lamps: 2
• Output Current: 1500 to 1580 Milliampere
• Power Factor: 0.9
• Size REF: 14.31 IN x 3.19 IN x 2.63 IN
• Starting Type: Rapid
• Type: Electromagnetic
