Universal Lighting ST72-865-SS004C Everline Single-Sided LED Sign Tube

Product Description

The Universal Lighting ST72-865-SS004C Everline LED sign tube serves as a retrofit solution for T12HO or T8HO-lit signs. This single-sided LED tube requires no modifications to existing RDC sockets, making it an efficient replacement. Operating at twenty-four volts DC, it is suitable for outdoor signage and constant voltage applications.

• LED lamp with RDC base for easy installation
• Compatible with T12HO or T8HO lamps for retrofitting

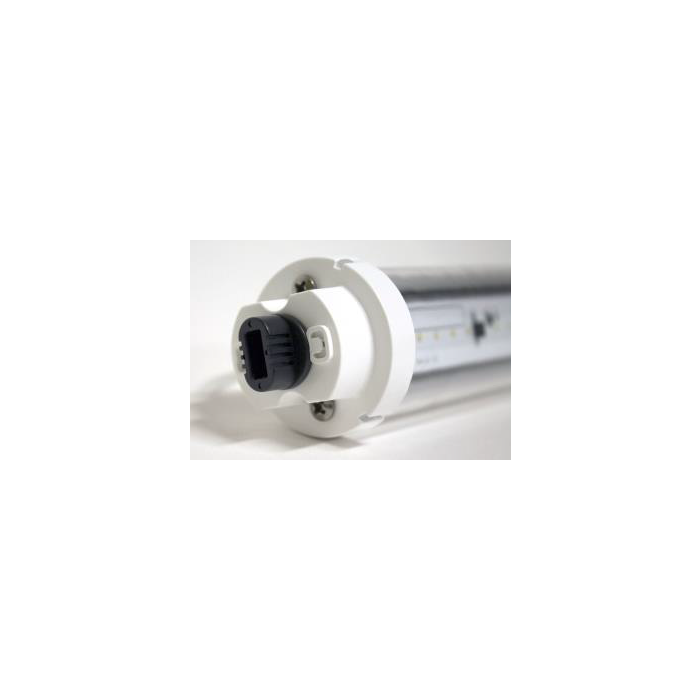

• Features adjustable RDC style endcaps for flexible orientation

Product Highlights

Product Information

Standard Information

• Brand: Universal Lighting
• MPN: ST72-865-SS004C

Technical Specifications

• Kit Type: Single-Sided LED Sign Retrofit Kit
• Lamp Base Type: RDC
• Lamp Type: LED
• Series: ST Series
• Shape: Tube
• Type: Single Sided
• Input Voltage: 24V DC
• Application: Outdoor Signage Constant Voltage Applications
• Standard & Approvals: UL 8750/879/879A, CSA 250.13, CSA 207, cULus Recognized, cULus Listed
• Average Life: 60,000 hr
• Color Rendering Index (CRI): 82 CRI
• Color Temperature: 6500 K
• Lumens: 2040 Lumens
• Power Consumption: 18 W
• Dimensions: 1-1/2 inches Diameter x 72 inches Length
• Rated Hours: 50,000
• Dimmable: Non-Dimmable
• Length: 69.8
• Diameter: 1.5
• Lead Length: 8 Each
• Regulatory: UL8750, CSA250.13-14, RoHS Compliant
