Universal Lighting ST72-865-DS004C LED Sign Tube 6ft Replacement MPN

Product Description

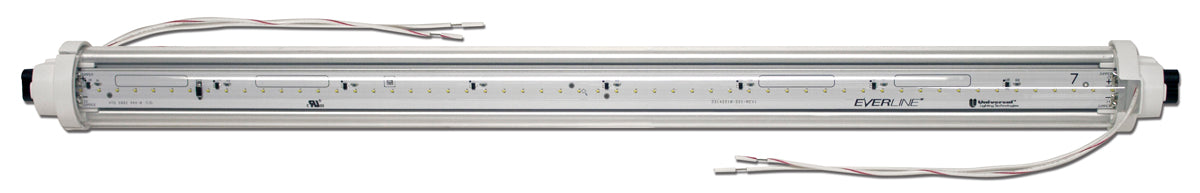

The Universal Lighting ST72-865-DS004C LED sign tube is suitable for retrofitting signs that rely on T12HO or T8HO lighting. This six-foot tube operates on a 24V constant voltage system, allowing for Class II wiring. It can be installed both vertically and horizontally and supports daisy-chain or parallel wiring methods.

• Designed for retrofitting signs that utilize T12HO or T8HO.
• Operates at 24V for easy Class II wiring.

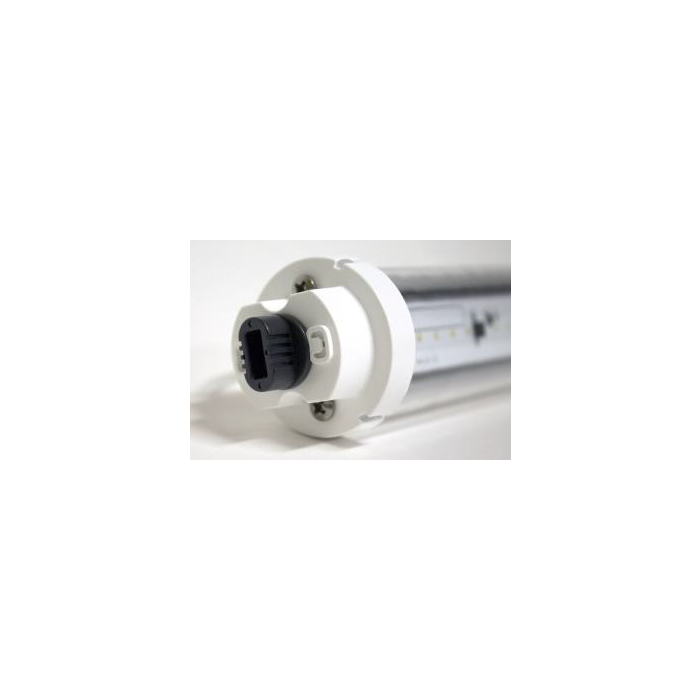

• Features adjustable RDC style endcaps for lamp orientation.

Product Highlights

This LED sign tube maintains standard fluorescent spacing and can be mounted within five inches of the acrylic face. The adjustable endcaps provide versatility in lamp orientation.

Product Information

Standard Information

• Brand: Universal Lighting
• Manufacturer: Universal Lighting Technologies

Technical Specifications

• Voltage: 24V
• Wattage: 18W/36W
• Color Temperature: 6500K
• Rated Hours: 50,000
• Luminous Flux: 2040 Lumens / 4080 Lumens
• Dimmable: Non-Dimmable
• Warranty: 5 Years
• Length: 69.8 inches
• Diameter: 1.5 inches
• Lead Length: 8 Each
• Case Quantity: 4
• Standards: R17D Recessed Double Contact (RDC) lampholders
• Regulatory Compliance: UL8750, CSA250.13-14, RoHS Compliant
