Product Description

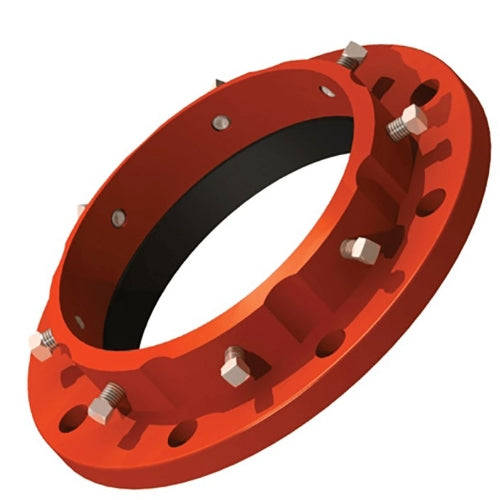

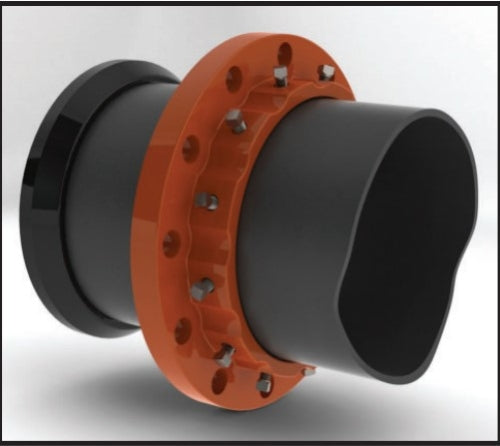

The United Water Products RFS-208-S is an effective flange adapter designed to connect valves, fittings, and equipment with flanged ends to plain end pipe. This product eliminates the need for pipe end preparation such as threading, welding, or grooving. Simply slide the flange over the plain end pipe and use a standard mechanical joint gasket. When mated with an existing flange and bolted securely, it creates a reliable compression seal between the flange and pipe surface. To ensure stability, tighten the set screws for end restraint.
- Material: Steel
- Nominal Size: 8 Inches
- Type: Flange Adapter
Product Highlights
This flange adapter is designed for seamless installation and strong, leak-free connections.
Product Information
Standard Information
-
Brand: United Water Products
-
MPN: RFS-208-S
Technical Specifications
-
Material: Steel
-
Nominal Size: 8 In
-
Type: Flange Adapter
-
Hydrostatic Test Pressure: Model - RFC-2/RFS-2 - 125 lb./150 lb. 2 in. - 8 in. 600 psi, 10 in. - 12 in. 525 psi
-
Gasket: SBR (BUNA-N)
