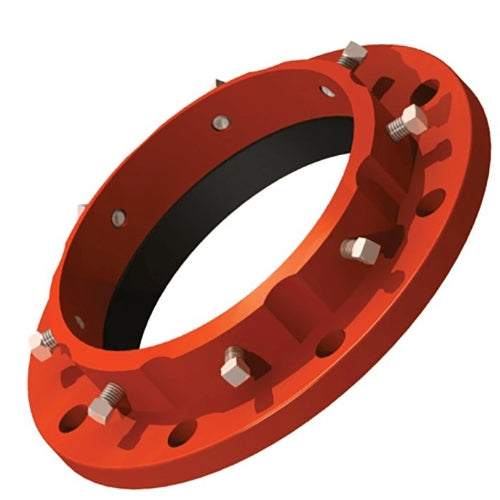

United Water Products RFS-204-S 200S 4 150# Steel Uni-Flange

Product Description

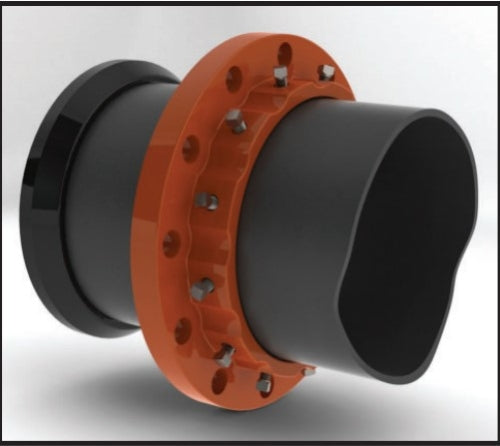

The United Water Products RFS-204-S is a 200S 4 150# steel uni-flange designed for joining valves, fittings, and equipment with flanged ends to plain end pipe. This product requires no pipe end preparation, threading, welding, or grooving. The operation involves sliding the flange over the plain end pipe followed by a standard mechanical joint gasket. Once the flange is tightened against an existing flange, it creates a compression seal. The design also allows for the tightening of set screws for additional end restraint.

• Compatible with plain end pipes
• No additional preparation needed
• Creates a secure compression seal

Product Highlights

Flange easy to install without complex procedures.

Product Information

Standard Information

• Brand: United Water Products
• MPN: RFS-204-S

Technical Specifications

• Material: Steel
• Nominal Size: Four Inches
• Type: Flange Adapter
• Hydrostatic Test Pressure: 125 lb./150 lb. for sizes two inches to eight inches at 600 psi; ten inches to twelve inches at 525 psi
• Gasket Material: SBR (BUNA-N)
