Product Description

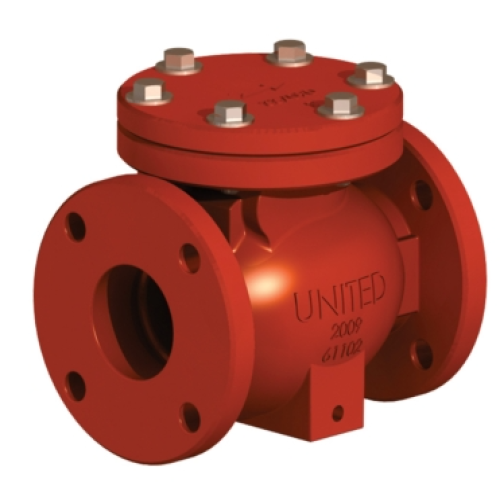

The United Water Products 8700-130 is a swing check valve designed to meet AWWA C508 standards. This valve features flange drilling that conforms to ANSI 125 and 150 specifications. It operates efficiently in temperatures ranging from minus ten degrees Celsius to one hundred twenty degrees Celsius, or fourteen degrees Fahrenheit to two hundred forty-eight degrees Fahrenheit. The maximum working pressure for this model is three hundred psi, making it suitable for various applications.
- Flange drilling to ANSI 125/150
- Face to face dimensions conform to AWWA C508
- Fusion bonded epoxy coating for durability
Product Highlights
The United Water Products 8700-130 Swing Check Valve ensures reliable performance in water and fire protection systems.
Product Information
Standard Information
-
Brand: United Water Products
-
Type: Swing Check Valve
Technical Specifications
-
Nominal Size: 3 In
-
Maximum Working Pressure: 300 psi
-
Working Temperature: -10°C to 120°C (14°F to 248°F)
-
Coating: Fusion Bonded Epoxy
-
Drilling: ANSI 125/150, Metric PN10/PN16 available on request
-
Face to Face Dimensions: AWWA C508
