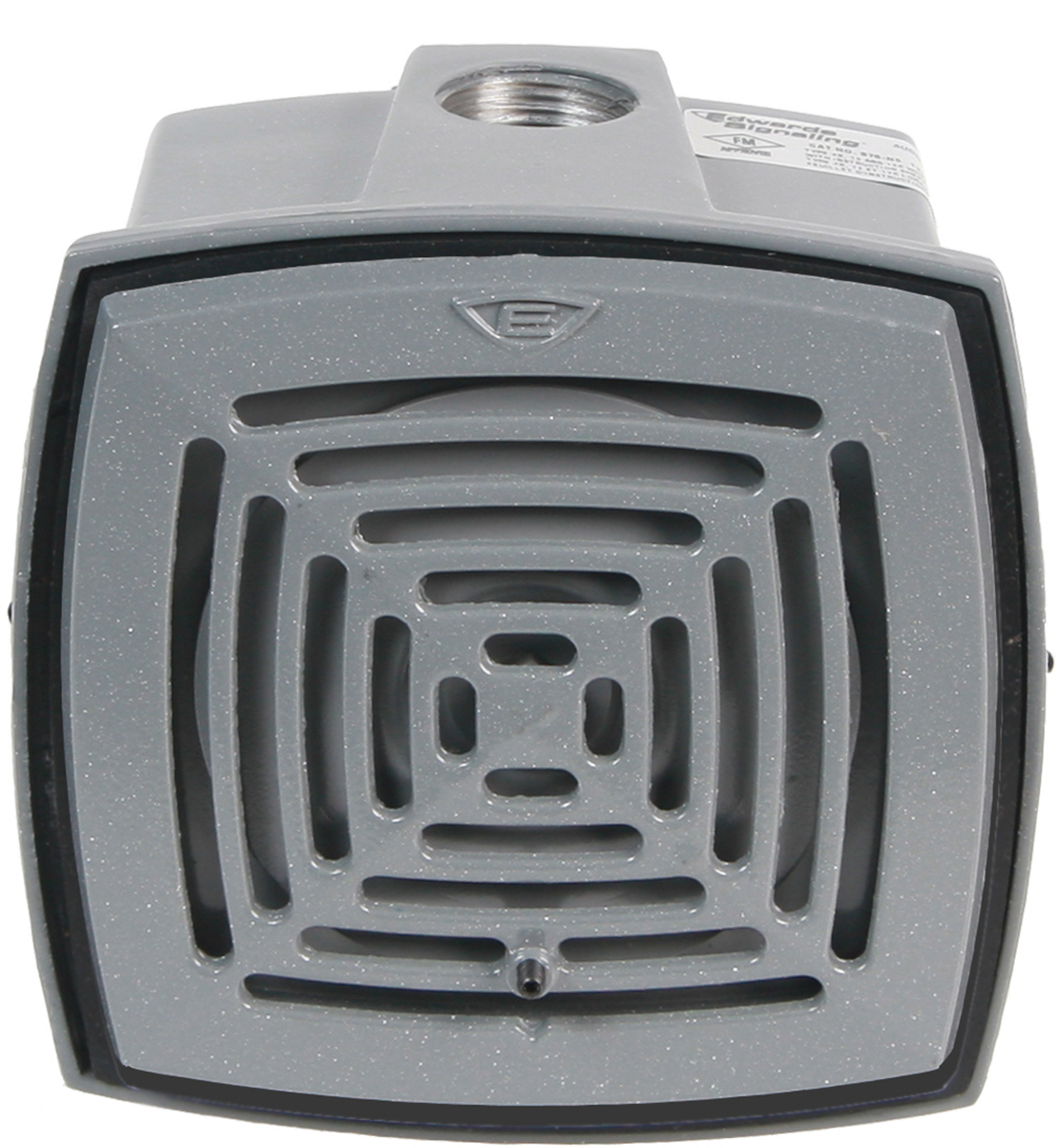

United Technologies 877-G1 EDW 24V DC NEMA 4X AdaptaHorn

Product Description

The United Technologies 877-G1 AdaptaHorn is a heavy-duty vibrating horn designed for industrial, commercial, and institutional use. This horn operates on twenty-four volts DC and draws point sixteen amperes of current while delivering a sound level of one hundred eleven to one hundred one decibels. Its robust design and weatherproof housing meet UL Listed standards, ensuring reliability in various environments.

• Volume adjustable for customizable sound levels
• Weatherproof, suitable for indoor or outdoor use
• Low-current, high-decibel operation

Product Highlights

The AdaptaHorn is engineered to meet the demands of alarm signaling applications. Its durable die-cast construction allows for surface mounting and delivers consistent performance.

Product Information

Standard Information

• Manufacturer: United Technologies
• MPN: 877-G1

Technical Specifications

• Amperage Rating: 0.16 A
• Application: Industrial, Commercial, Institutional, Timing, Paging, Alarm Signaling
• Color: Gray
• Dimensions: 4-7/8 in L x 3-5/16 in W x 4-7/8 in H
• Frequency Rating: 50/60 Hz
• Indoor/Outdoor: Indoor/Outdoor
• Material: Die Cast
• Mounting Type: Surface
• Power Rating: 3.8 W
• Series: 870
• Sound Level: 111/101 dB
• Specifications Met: UL Listed
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant
• Voltage Rating: 24 VDC
