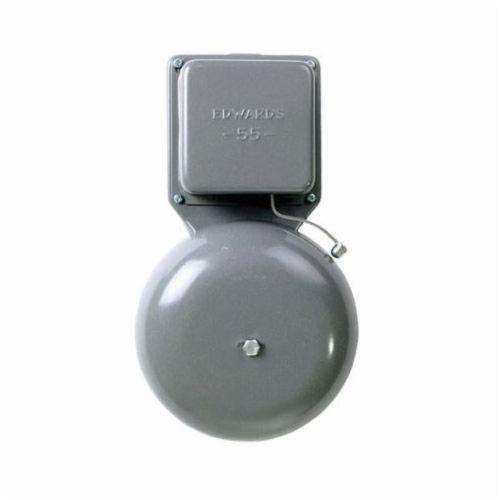

United Technologies 55-4G5 EDW BELL 4IN 24V 60HZ

Product Description

The United Technologies 55-4G5 is a single magnet vibrating bell designed for reliability in signaling applications. This model operates on twenty-four volts alternating current and draws zero point zero two amperes. It is part of the Edwards Signaling product line. This bell is ideal for various environments, including factories and offices.

• Low current drain for extended wire runs
• Suitable for AC powered security systems
• Sturdy construction for industrial use

Product Highlights

This vibrating bell features a compact design with a four-inch gong and a sound output level ranging from seventy-eight to sixty-eight decibels.

Product Information

Standard Information

• Manufacturer: United Technologies
• MPN: 55-4G5

Technical Specifications

• Sound Level: 78/68 dB
• Voltage Rating: 24 VAC
• Power Rating: 4.8 VA
• Amperage Rating: 0.02 A
• Frequency Rating: 60 Hz
• Gong Size: 4 in
• Dimensions: 7-3/8 in H x 4 in W x 2-1/8 in D
• Application: Light duty installations in factories, institutions, and offices
