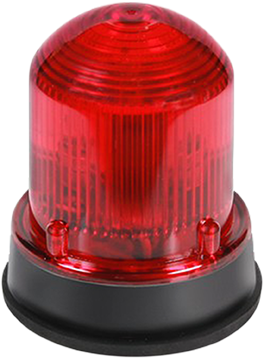

United Technologies 125LEDFR120AB 125 LED Flash Red 120VAC

Product Description

United Technologies 125LEDFR120AB is a signaling device designed for both indoor and outdoor applications. It operates on 120 VAC and features an LED lamp with a red lens. This model is part of the 125LED series and offers reliable performance in various environments.

• Flashing rate of 65 fpm
• Average life of 100000 hours
• NEMA 4X rated for protection against dust and water

Product Highlights

The Edwards Signaling 125LED series includes a cylindrical design ideal for panel mounting. It features a nylon base and a polycarbonate lens that provides resistance to harsh conditions.

Product Information

Standard Information

• Manufacturer: United Technologies
• MPN: 125LEDFR120AB

Technical Specifications

• Amperage Rating: 0.097 A
• Application: Indoor/Outdoor Applications
• Average Life: 100000 hr
• Dimensions: 3-7/8 in H
• Flash Rate: 65 fpm
• Housing Material: Nylon Base/Polycarbonate Lens
• Lamp Type: LED
• Lens Color: Red
• NEMA Rating: NEMA 4X
• Temperature Rating: -31 to 150 deg F
• Voltage Rating: 120 VAC
• Mounting Type: Panel
• Standards/Approvals: UL 1638, cUL Listed, ARRA Compliant, Buy American Act Compliant
