UNITED STRUCTURAL PRODUCTS A62-09-90VO12-18-G UNISTR 6IN H ALUM CLASS 2 9IN R S VERT OUTSIDE 90 DEG ELBOW 12IN RADIUS

Product Description

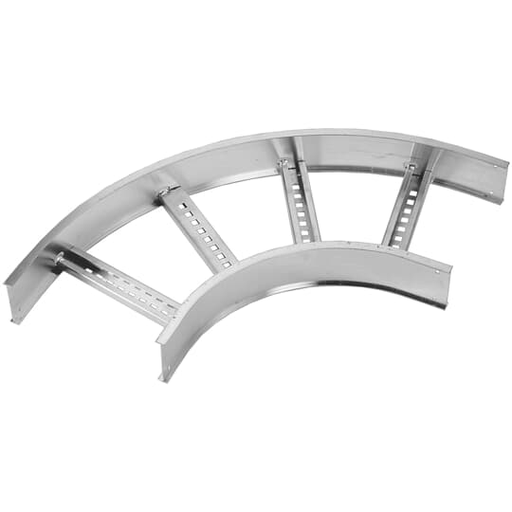

The UNITED STRUCTURAL PRODUCTS A62-09-90VO12-18-G is a vertical outside 90-degree elbow fitting made from aluminum. This product stands six inches tall, with a twelve-inch radius and eighteen-inch width, making it ideal for effective cable management. It is specifically designed for facilitating directional changes in cable runs within cable tray installations. Key features include:

• Functions as a vertical outside 90-degree elbow for cable tray installations.
• Manufactured from aluminum with arc-welded construction for durability.
• Classified by Underwriters Laboratories and certified to meet CSA Std. C22.2 No. 126 requirements for use as equipment grounding conductors per NEC 392.7.

Product Highlights

This elbow fitting is engineered for structural integrity and reliable performance in cable management systems.

Product Information

Standard Information

• Brand: UNITED STRUCTURAL PRODUCTS
• MPN: A62-09-90VO12-18-G

Technical Specifications

• Type: Vertical Outside 90 Degree Elbow
• Material: Aluminum
• Height: 6 inches
• Rung Spacing: 9 inches
• Radius: 12 inches
• Width: 18 inches
• Hardware Type: GEOMET
• Fitting Class: 2
• Side Rail Flange Width (Class 2): 2 inches
• Splice/Connector Screws (Class 2): 4 each
