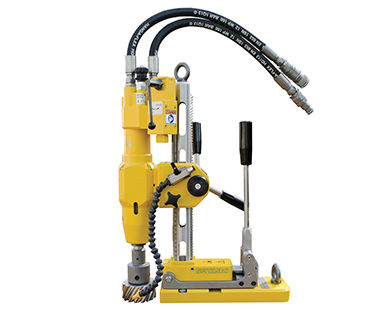

United Pipe & Steel 1345 Portable Hydraulic Magnetic Drill

Product Description

The United Pipe & Steel 1345 Portable Hydraulic Magnetic Drill is designed for industrial and construction tasks. This drill is effective for working with structural steel and various metals, making it suitable for marine and mining applications.

• Reversible motor allows for tapping.
• Variable no load speed ranges from forty to two hundred fifty RPM.
• Magnetic base provides strong hold on metal surfaces.

Product Highlights

This magnetic drill is versatile and powerful, ideal for heavy-duty use in metalworking environments.

Product Information

Standard Information

• Brand: United Pipe & Steel
• Minimum Order Quantity: One

Technical Specifications

• Motor Power (Hydraulic): 3.4 HP
• Weight: 50 lbs.
• Stroke: 12 inches
• Hole Capacity: 4 inches diameter
• Twist Drill Capacity: 1-1/4 inches diameter
• Tapping Capacity: 1-1/8 inches diameter
• No Load Speed (Variable): 40-250 RPM
• Hydraulic Supply: 5.25 to 6 GPM at 2000 PSI (140 Bar)
• Magnetic Base Size: 11-11/16 inches L x 4 inches W (Model 213450010), 12-4/5 inches L x 7-1/2 inches W (Model 213450020)
• Dimensions: 21-1/2 inches H x 15-7/16 inches L x 7-3/4 inches W
• Magnetic Force (3/8 inch plate): 1874 lbs. (Model 213450010), 3306 lbs. (Model 213450020)
