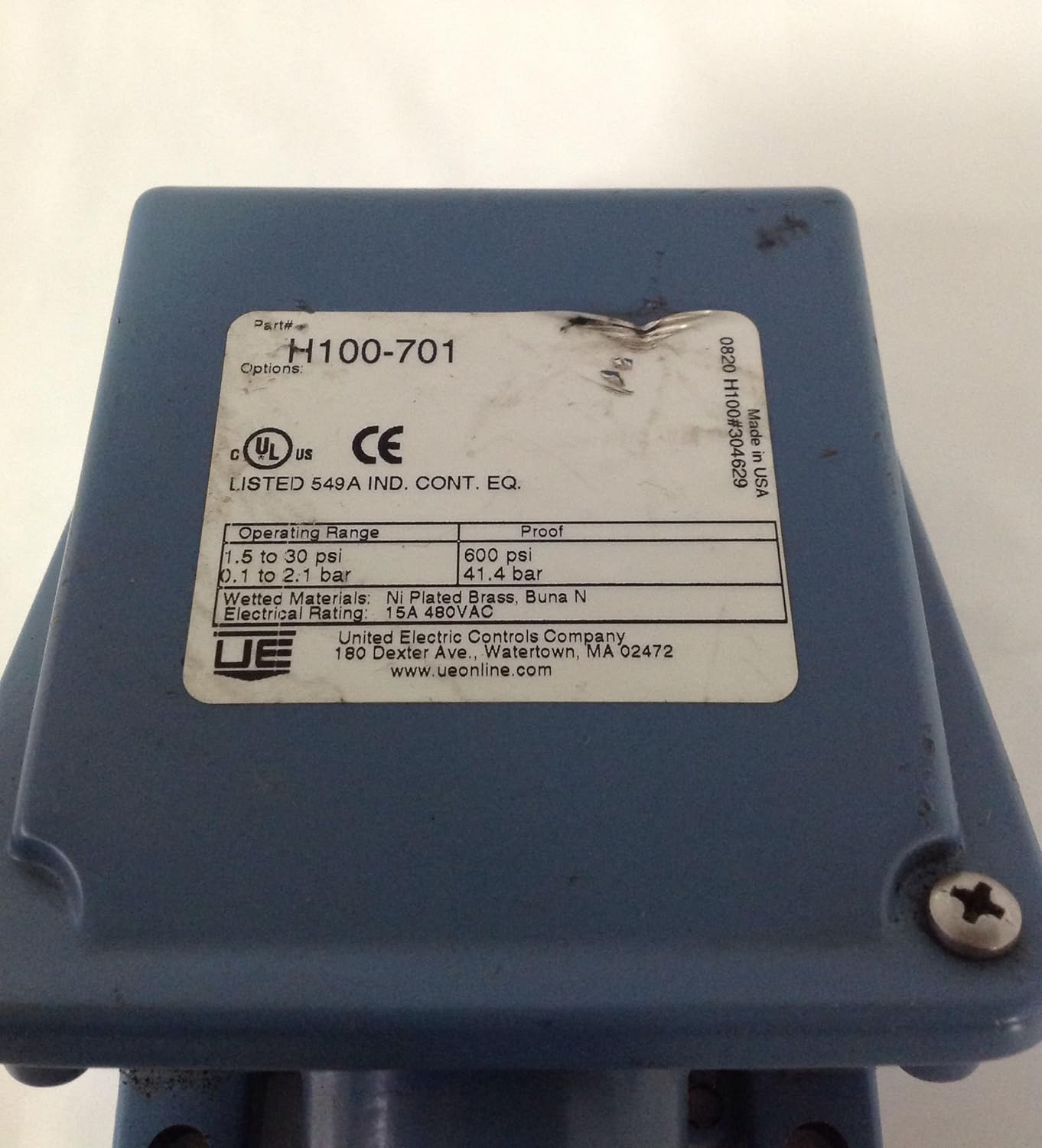

UNITED ELECTRIC H100-701 PRESSURE SWITCH SPDT 1.5-30 PSI NEMA 4X

Product Description

The United Electric model H100-701 is a robust pressure switch designed for precise monitoring and control of pressure levels in various industrial settings. Manufactured by United Electric, the switch is optimized for reliability and durability.

• Adjustable range from 1.5 to 30 PSI
• Single SPDT output, internal adjustment with reference scale
• Constructed with a NEMA 4X epoxy-coated enclosure for enhanced protection

Product Highlights

This pressure switch features an adjustable set point range of 1.5 to 30 PSI, which provides flexibility across different applications. The inclusion of a single SPDT output and internal adjustments with a reference scale simplify usage and adjustments.

Product Information

Standard Information

• Terminal Type: SPDT
• Connectivity Protocol: X-10

Technical Specifications

• National Stock Number: 5930-01-600-6114
• International Protection Rating: IP541
• Deadband: 1 to 2 PSI
• Proof Pressure: 600 PSI
• Overrange Pressure: 500 PSI
