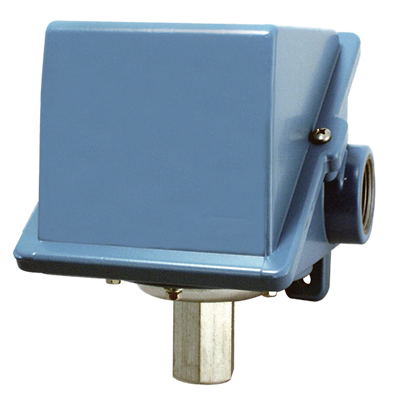

United Electric Controls J402K-157 pressure switch 10 to 100 PSID

Product Description

The United Electric Controls J402K-157 is a differential pressure switch from the 400 Series, featuring 2 SPDT switch outputs. It offers an adjustable range of 10 to 100 PSID, with a working pressure from 30" HgVac to 150 PSI and a proof pressure of 180 PSI. This switch is designed for critical functions in process industries, including industrial gas production and energy generation, providing threshold protection and control.

• Epoxy-coated enclosure designed to meet enclosure type 4X
• UL listed and cUL certified, FM approved
• Adjustable range of 10 to 100 PSID

Product Highlights

Designed for critical threshold protection and control in industrial gas production and energy generation applications.

Product Information

Standard Information

• Brand: UNITED ELECTRIC CONTROLS
• Manufacturer Part Number: J402K-157

Technical Specifications

• Model Number: J402K-157
• Series: 400
• Switch Type: Differential Pressure Switch
• Switch Output: 2 SPDT
• Adjustable Range: 10 to 100 PSID
• Working Pressure: 30" HgVac to 150 PSI
• Proof Pressure: 180 PSI
• Deadband: 0.5 to 3 PSI
• Bellows Material: Brass
• Pressure Connection Material: Nickel-Plated Brass
• Pressure Connection Size: 1/4" NPTF
• Adjustment Mechanism: Internal Hex Screw
• Enclosure Material: Epoxy-Coated Diecast Aluminum
• Enclosure Rating: NEMA 4X
• Certifications: UL listed, cUL certified, FM approved
