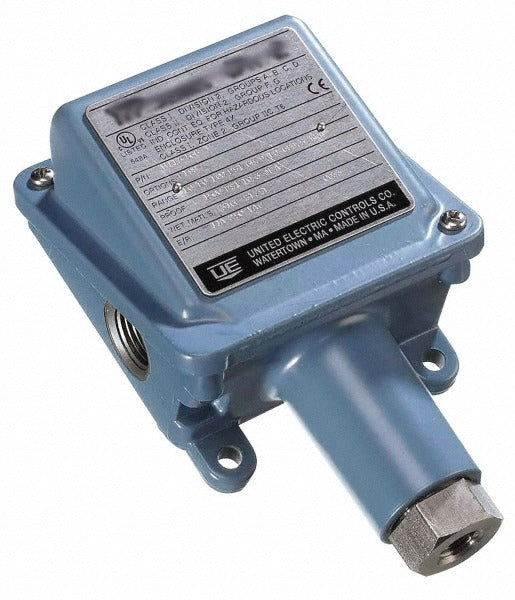

United Electric Controls H100-706 Pressure Switch 2000 Psi

Product Description

The UNITED ELECTRIC CONTROLS H100-706 is a general purpose diaphragm pressure switch designed to monitor and control pressure in industrial and commercial fluid or gas systems. The diaphragm sensing element responds to system pressure changes and actuates the internal switch mechanism, making or breaking a circuit at a set point. Rated to a maximum pressure setting of 2000 psi, this switch covers a broad range of demanding applications. The 1/4 inch NPTF threaded process connection provides a pressure-tight, dryseal fit without the need for thread sealant, reducing the risk of leaks at the port. Licensed technicians and instrumentation specialists are the typical installers.

This pressure switch is suited for use in hydraulic systems, compressed air systems, water systems, and general industrial process lines where reliable pressure detection is required. It is appropriate for both commercial and light industrial installations where a general purpose diaphragm-style switch meets the process requirements. The 1/4 inch NPTF port fits standard instrumentation fittings commonly found in these environments.

Key Features

• Maximum pressure setting of 2000 psi for high-pressure monitoring applications
• Diaphragm sensing element provides responsive and repeatable pressure actuation
• 1/4 inch NPTF dryseal thread connection for a leak-resistant process port
• General purpose design compatible with a wide range of fluid and gas media
• Compact form factor suitable for panel-mount or inline installation

Compatibility

Designed as an OEM-style general purpose diaphragm pressure switch for industrial and commercial pressure control applications requiring a 1/4 inch NPTF process connection rated to 2000 psi.

Installation Notes

Installation should be performed by a qualified instrumentation technician or licensed trades professional familiar with the applicable pressure system codes. De-energize the circuit and depressurize and isolate the system before removing or installing the switch. Use a wrench on the hex body of the switch when threading into the process port to avoid torquing the switch housing. Verify the system pressure range falls within the rated maximum before commissioning.
