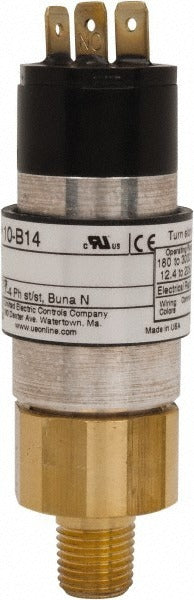

United Electric Controls 10-B14 Pressure Switch 180-3000 Psi

Product Description

The UNITED ELECTRIC CONTROLS 10-B14 is a compact, cylindrical pressure switch designed for industrial and mechanical system applications where reliable pressure sensing across a wide range is required. It offers an adjustable setpoint from 180 psi to 3000 psi, with a maximum rated pressure of 8000 psi, making it suitable for high-pressure environments. The switch supports multiple voltage configurations including 125 volts AC, 250 volts AC, 125 volts DC, and low-voltage DC options of 6, 12, 24, and 30 volts. The aluminum housing keeps the unit lightweight at 0.35 pounds, and the 1/4 inch NPT male thread connection makes installation straightforward for qualified technicians.

This pressure switch is used in commercial and industrial settings where pressure monitoring and control of hydraulic, pneumatic, or fluid systems is necessary. Its wide adjustable pressure range and multi-voltage compatibility make it a practical fit for HVAC compressor circuits, fluid power systems, and process control panels. The 0.25 inch push-on terminals simplify wiring connections during installation. Operating temperature range spans -40 degrees F to 180 degrees F, supporting use in both cold-storage and high-ambient environments. The deadband is adjustable from 50 psi to 400 psi, allowing technicians to tune switch differential to match system requirements.

Key Features

• Adjustable pressure setpoint from 180 psi to 3000 psi with a maximum pressure rating of 8000 psi
• Compatible with multiple voltage ratings: 125V AC, 250V AC, 125V DC, and 6, 12, 24, 30V DC
• Adjustable deadband range from 50 psi to 400 psi for flexible differential control
• 1/4 inch NPT male thread connection for direct inline mounting
• 0.25 inch push-on terminals for fast, tool-free wiring
• Aluminum housing rated from -40 degrees F to 180 degrees F for harsh-environment use
• ATEX, CSA C22.2, CUL, and LVD certified for use in regulated and hazardous-location applications

Compatibility

Designed as an OEM-style replacement or new-installation pressure switch for industrial, HVAC, and fluid system control panels requiring a compact cylindrical form factor with 1/4 inch NPT male thread connections and wide-range pressure setpoint adjustability.

Installation Notes

Installation should be performed by a licensed technician or qualified trades professional familiar with pressure system service. Depressurize and lock out the system before threading the switch into the process connection. Apply appropriate thread sealant to the NPT male threads per the system manufacturer's guidelines. Verify voltage compatibility with the control circuit before making terminal connections, and confirm setpoint and deadband adjustment after installation using a calibrated pressure source.
