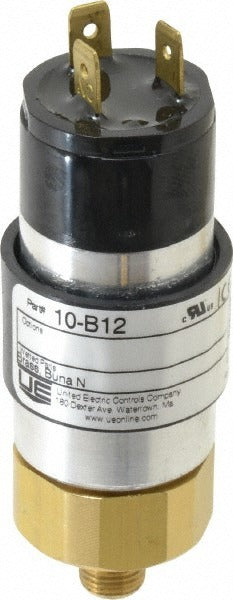

United Electric Controls 10-B12 Pressure Switch 30-600 Psi

Product Description

The UNITED ELECTRIC CONTROLS 10-B12 is a compact, cylindrical pressure switch designed for industrial and commercial pressure monitoring and control applications. It offers an adjustable setpoint range of 30 psi to 600 psi, a maximum pressure rating of 2,500 psi, and operates across a wide voltage range including 125 volts AC, 250 volts AC, and multiple DC voltages. The aluminum housing keeps the unit lightweight at 0.35 pounds while supporting demanding service environments. Licensed HVAC technicians, plumbers, and instrumentation professionals install this switch where reliable pressure-actuated switching is required in fluid or gas systems.

The 10-B12 is suited for residential and commercial systems that require automatic pressure-based switching in hydraulic, pneumatic, water, or process piping applications. The 1/4 inch NPT male thread connection makes it straightforward to mount directly into common piping configurations. Its compact cylindrical form factor simplifies installation in tight spaces. The adjustable deadband range of 8 psi to 60 psi provides flexibility to tune the switch for specific system response requirements. Setpoint adjustability is built in, allowing field calibration without additional hardware.

Key Features

• Adjustable pressure setpoint from 30 psi to 600 psi with built-in field adjustability
• Maximum pressure rating of 2,500 psi for overpressure protection
• Wide voltage compatibility: 6, 12, 24, 30 volts DC and 125, 250 volts AC
• Adjustable deadband from 8 psi to 60 psi for application-specific hysteresis control
• 1/4 inch NPT male thread connection with 0.25 inch push-on electrical terminals
• Aluminum housing rated for operating temperatures from -40 degrees F to 180 degrees F
• ATEX, CSA C22.2, CUL, LVD, PED, and EAC certified for broad compliance

Compatibility

Designed as an OEM-style replacement or new-installation pressure switch for systems requiring a compact cylindrical 1/4 inch NPT male pressure switch with adjustable setpoints in the 30 psi to 600 psi range.

Installation Notes

Installation should be performed by a licensed technician following applicable local codes, including IFGC or IPC as relevant to the system type. Depressurize and isolate the system completely before removing an existing switch or threading in the 10-B12. Use appropriate thread sealant rated for the process media on the NPT connection. Verify voltage and amperage compatibility with the control circuit before making electrical connections to the push-on terminals.
