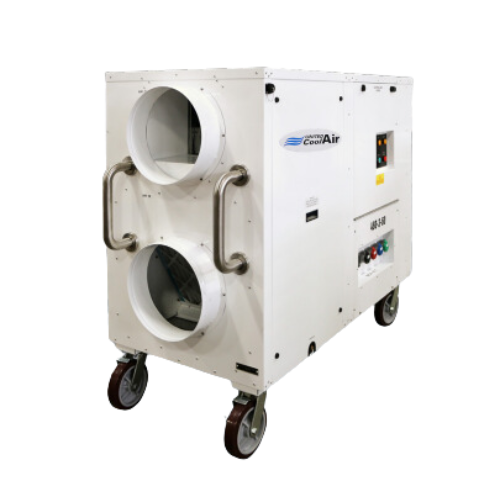

United Coolair PACH5N Narrow 5 Tons Compact Horizontal Cooling & Heating 10 kW & 15 kW Electric Heat

Product Description

The UNITED COOLAIR PACH5N is a narrow, compact horizontal cooling and heating unit designed to fit through a standard 36" door opening. This 5-ton air-cooled unit uses R-410a refrigerant and features a powder-coated heavy-duty steel cabinet. It delivers over 2,000 CFM at 1.5" on the Evaporator and 1.0" on the Condenser.

• Features 14" removable duct collars and 8" swivel casters with brakes for easy mobility.
• Includes 10 kW (single phase) and 15 kW (three phase) electric heat options.
• Equipped with a stainless steel drain pan, condensate P-trap, and refrigerant line vibration absorbers.

Product Highlights

Designed for indoor and outdoor applications, the PACH5N is ideal for rental/temporary industry use, offering increased tonnage and static pressure in a portable design.

Product Information

Standard Information

• Brand: UNITED COOLAIR
• Manufacturer Part Number: PACH5N

Technical Specifications

• Model Number: PACH5N
• Tons: 5
• Voltage/Phase: 230/1, 230/3, 460/3
• MCA: 55.6, 36.6, 17.2
