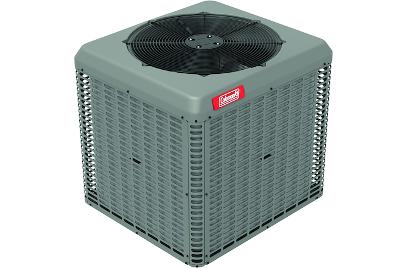

Unitary Products Group THE2B36T21S Heat Pump 3 Ton

Product Description

The Unitary Products Group THE2B36T21S is a three ton heat pump designed for effective heating and cooling. It has a SEER2 rating of 14.3 and uses R-410A refrigerant for improved energy efficiency.

• Enhanced aluminum fins for improved heat transfer
• Field-installed liquid line filter-drier for system protection
• Includes high and low pressure switches for safety

Product Highlights

This heat pump operates at 208/230 volts and is intended for single-phase applications. It features high and low pressure switches along with a high pressure relief valve and temperature sensor for optimal performance.

Product Information

Standard Information

• Brand: Unitary Products Group
• MPN: THE2B36T21S

Technical Specifications

• BtuH Cooling: 35,000
• BtuH Heating Input: 32,600
• COP: 3.42
• Depth: 35.25 inches
• HSPF: 8.2
• Height: 33.25 inches
• Liquid Connection: 3/8 inches
• Maximum Fuse Size: 35
• Minimum Circuit Amps: 20.3
• Motor Type: PSC
• Nominal Tons: 3
• Phase: Single
• Refrigerant: R-410A
• SEER2: 14.3
• Suction Fitting: 3/4 inches
• Volts: 208/230
• Width: 31.75 inches
