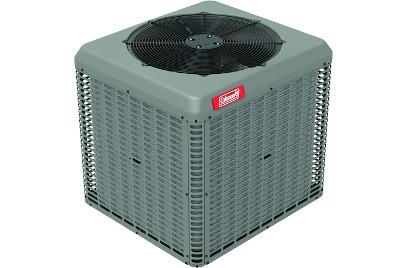

Unitary Products Group TCF2B18S21S Air Conditioning Condensing Unit 1-1/2 Ton

Product Description

The Unitary Products Group TCF2B18S21S is an air conditioning condensing unit with a rated cooling capacity of 18,000 BTU per hour and a 15.2 SEER2 efficiency rating. This single-phase unit uses R-410A refrigerant and is suitable for various installation configurations, either at the indoor coil or the AC unit itself. It operates on a voltage of 208/230.

• Includes a filter-drier for field installation.
• Service valves with 45-degree access ports for easy gauge hook-up.
• Features two easily removable coil guards for maintenance.

Product Highlights

This unit is designed to provide reliable cooling and easy installation for trade professionals.

Product Information

Standard Information

• Brand: Unitary Products Group
• MPN: TCF2B18S21S

Technical Specifications

• BTU Cooling: 18,000
• Depth: 29.25 inches
• EER2: 12.5
• Energy Star: Yes
• Height: 26.75 inches
• Liquid Connection: 3/8 inches
• Maximum Fuse Size: 20
• Minimum Circuit Amps: 13.2
• Motor Type: ECM
• Nominal Tons: 1.5
• Phase: Single
• Refrigerant: R-410A
• SEER2: 15.2
• Suction Fitting: 3/4 inches
• Volts: 208/230
• Width: 29.25 inches
