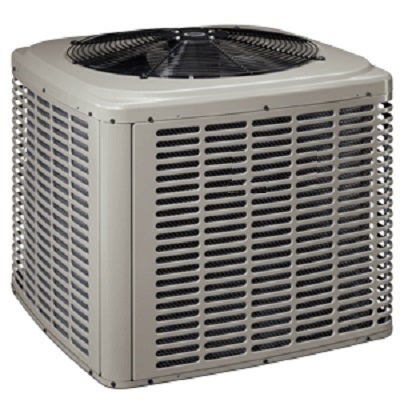

UNITARY PRODUCTS GROUP TC3B4223S Outdoor Unit Central Air Conditioner

Product Description

The Unitary Products Group TC3B4223S is a capable outdoor unit central air conditioner built for residential and light commercial settings. It runs on a power supply of 208-230 volts and operates at a frequency of sixty hertz. With a cooling capacity of 3.5 tons, it efficiently manages temperature control. This unit utilizes R410A refrigerant, respecting environmental standards with zero potential for ozone depletion. Part of the LX Series, it meets the 13 SEER minimum efficiency standards set for the Northern US and Canada.

• 3.5 ton capacity for effective temperature control
• Uses R410A refrigerant for environmental safety
• Suitable for residential and light commercial use

Product Highlights

Designed for efficient cooling, this air conditioner adapts to various settings while ensuring ecological compliance.

Product Information

Standard Information

• Brand: Unitary Products Group
• MPN: TC3B4223S

Technical Specifications

• Cooling Capacity: 3.5 tons
• Voltage: 208-230V
• Phase: Single
• Refrigerant Type: R410A
• SEER Rating: 13
• Nominal Capacity: 42000 BTU
• Amperage Max: 35 A
• Compressor Type: Scroll
• Liquid Line (OD): 3/8 inches
• Vapour/Gas Line (OD): 7/8 inches
• EER Rating: 11.25 EER
• Coil Type: Micro Channel
• Frequency Rating: 60 Hz
• Minimum Circuit Ampacity: 12.9
