Unitary Products Group JHE24B5AC2SS1 Single-Piece Air Handler JHE Series

Product Description

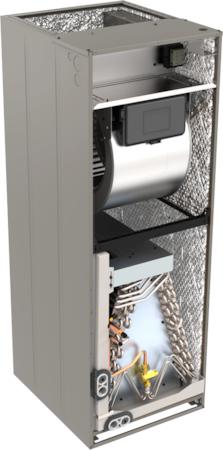

The Unitary Products Group JHE24B5AC2SS1 is a single-piece air handler designed for efficiency and reliability. This unit features a two-stage, ECM motor and includes a factory-installed TXV. It is suitable for multi-position installations and operates using the R-454B refrigerant. Key dimensions include a width of seventeen and one-half inches, height of forty-eight and three-eighths inches, and depth of twenty-one and one-half inches. The total weight of the unit is one hundred and four pounds.

• Two-stage standard ECM motor included.
• Factory-installed TXV enhances performance.
• Compatible with R-454B refrigerant.

Product Highlights

Efficient and reliable air handler designed for optimal airflow and temperature control in residential or commercial settings.

Product Information

Standard Information

• Nominal Tons: 2
• Voltage: 208/230

Technical Specifications

• Nominal CFM: 800
• CFM @ 0.5 ESP: 1,025
• CFM High @ 0.3 ESP: 1,100
• Minimum Circuit Amps: 3.3
• Amps @ 240V: 2.6
• Maximum Fuse Size: 15
• Liquid Connection: 3/8
• Suction Fitting: 3/4
• Refrigerant: R-454B
• Width: 17-1/2
• Height: 48-3/8
• Depth: 21-1/2
• Weight: 104
• Motor Type: ECM
