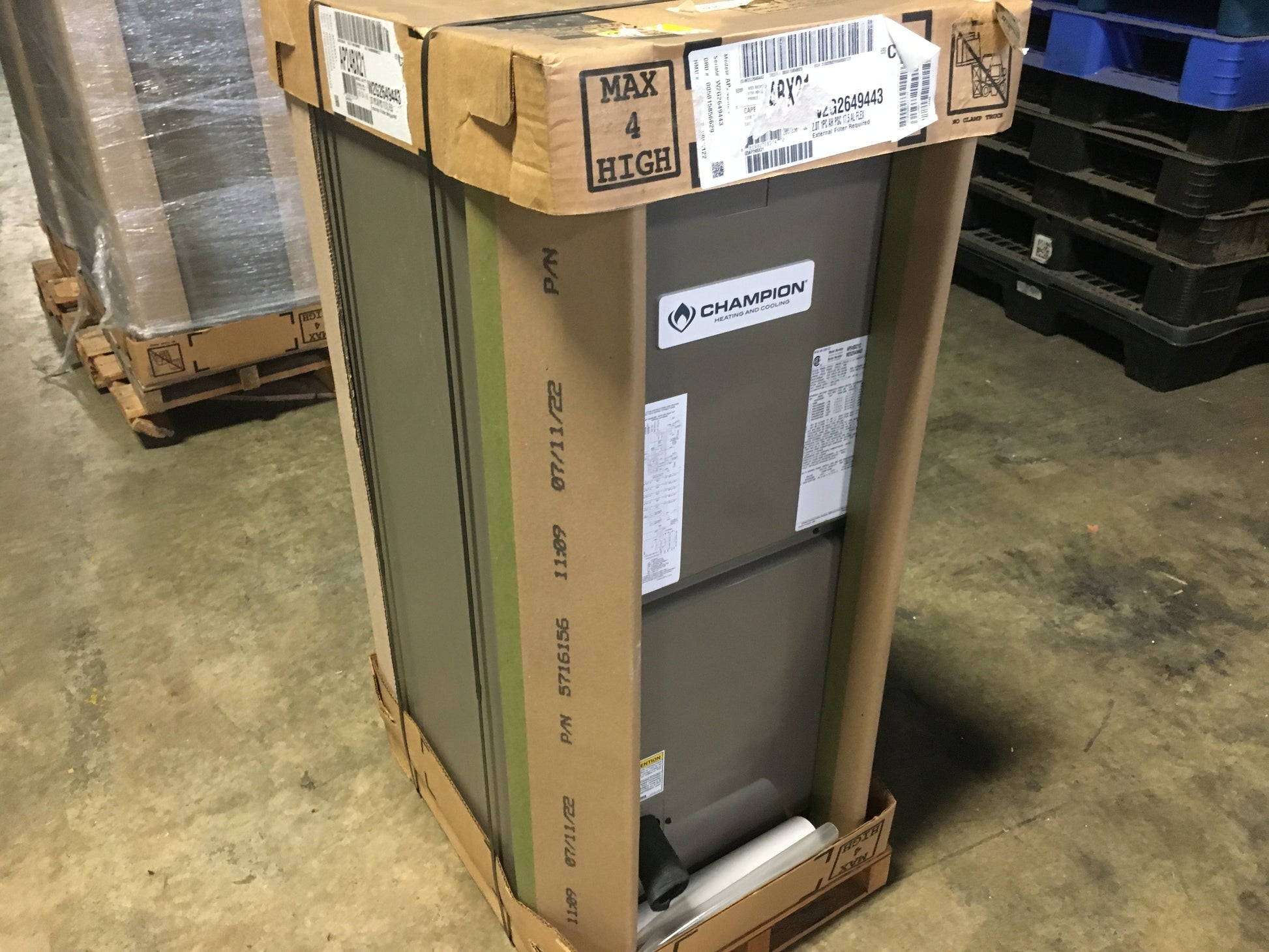

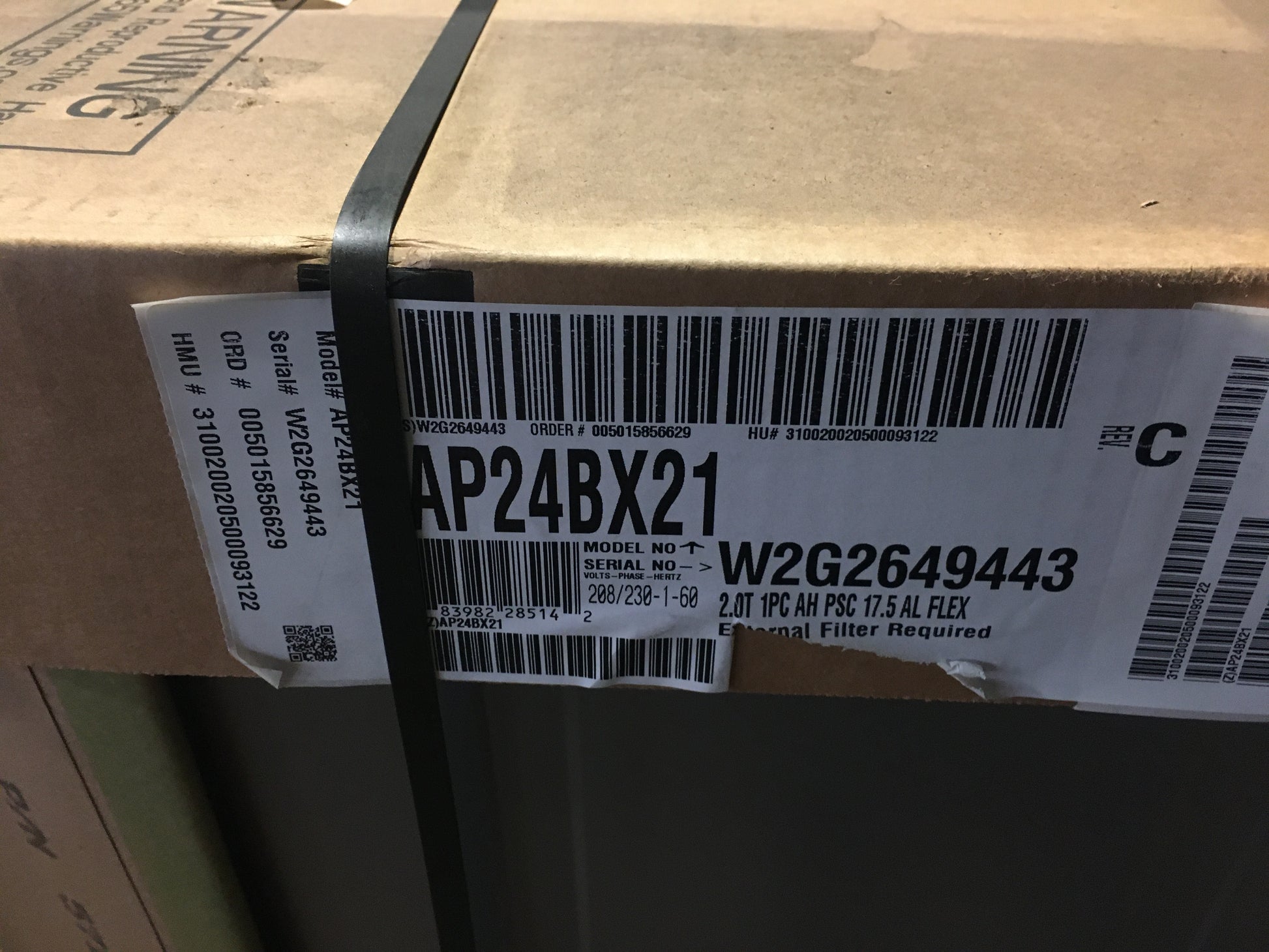

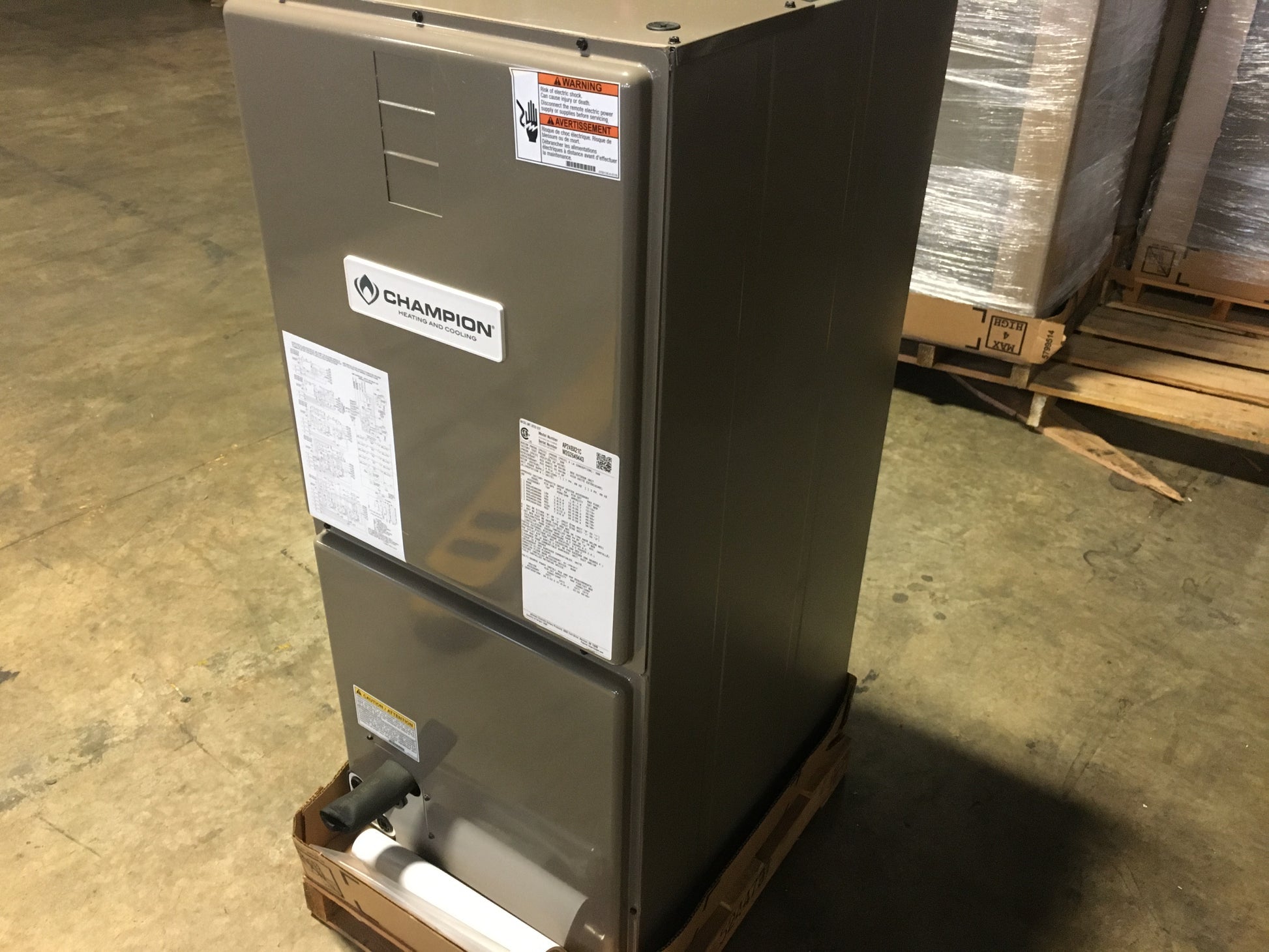

Unitary Products Group AP24BX21 Single-Piece Air Handler

Product Description

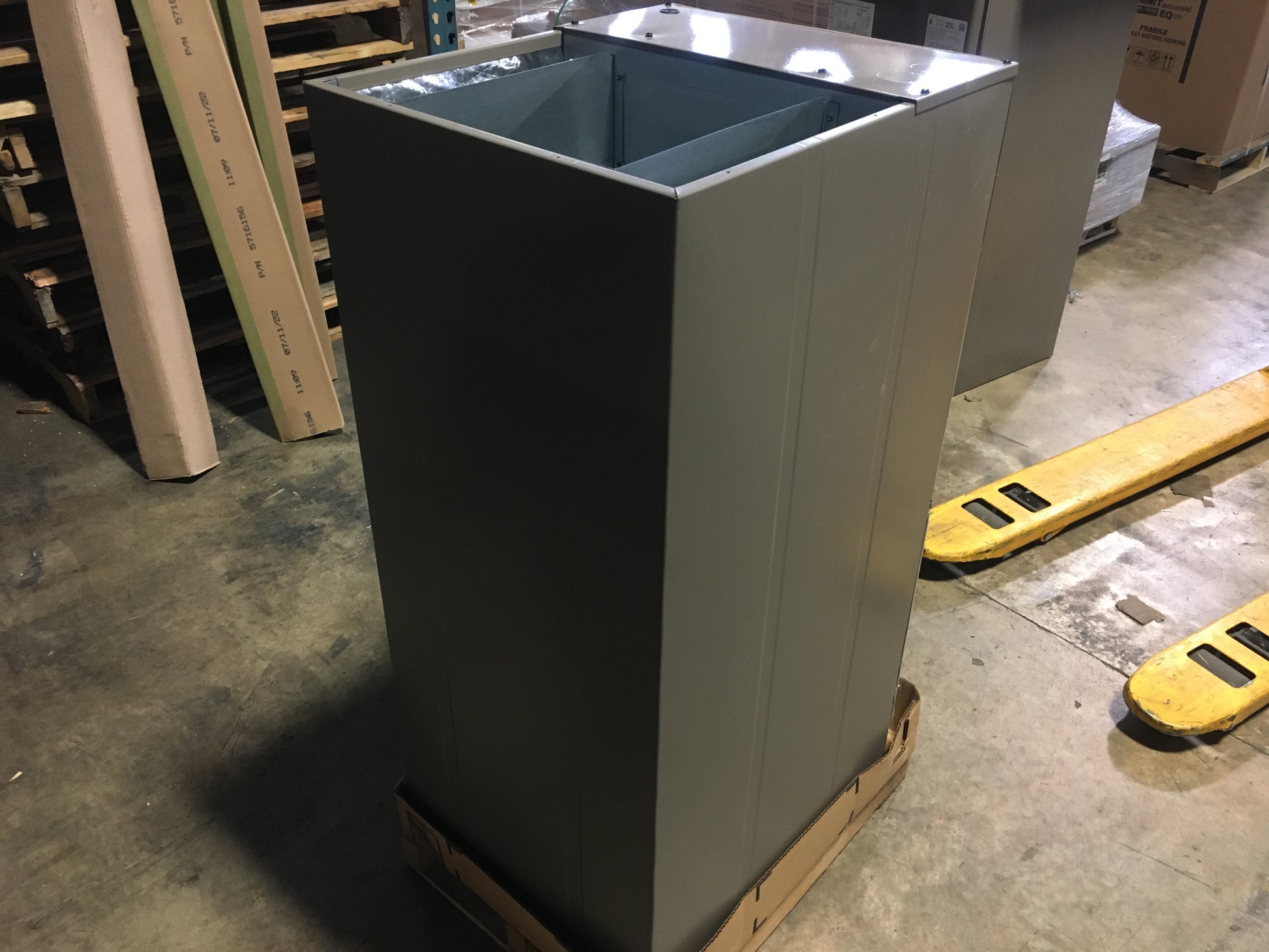

The Unitary Products Group AP24BX21 is a versatile single-piece air handler suitable for various configurations including upflow, downflow, and horizontal left or right. This unit features a strong case construction with an interior endoskeleton and foil-faced insulation to enhance performance.

• Supports multi-position installation options
• Utilizes a direct-drive, multi-speed PSC motor
• Includes a MaxAlloyTM coil and thermoset drain pan

Product Highlights

The AP24BX21 efficiently manages airflow with a total leakage rate of two percent or less. The design accommodates a standard size filter and is compatible with optional heat kits, providing flexibility for varied application needs.

Product Information

Standard Information

• Air Handler Type: Single Piece
• Configuration: Multi-Position

Technical Specifications

• Motor Type: PSC
• Nominal Tons: 2
• Input Voltage: 208/230
• Maximum Hertz: 60
• Circuit Phase: 1
• CFM @ 0.5 ESP: 885
• CFM High @ 0.3 ESP: 953
• Nominal CFM: 800
• Depth: 21.4375 inches
• Height: 41 inches
• Width: 17.5 inches
• Liquid Connection: 3/8 inches
• Suction Fitting: 3/4 inches
• Max. Fuse Size: 70
• Min. Circuit Amps: 64.3
• Weight: 87 pounds
• Capacity: 2
• Category: Multi Position
• Cabinet Size: 17.5 inches
• System Controls: Non-Communicating
