Unistrut P1964 Square Washer 5/8 feet' (1-5/8 inches Series)

Product Description

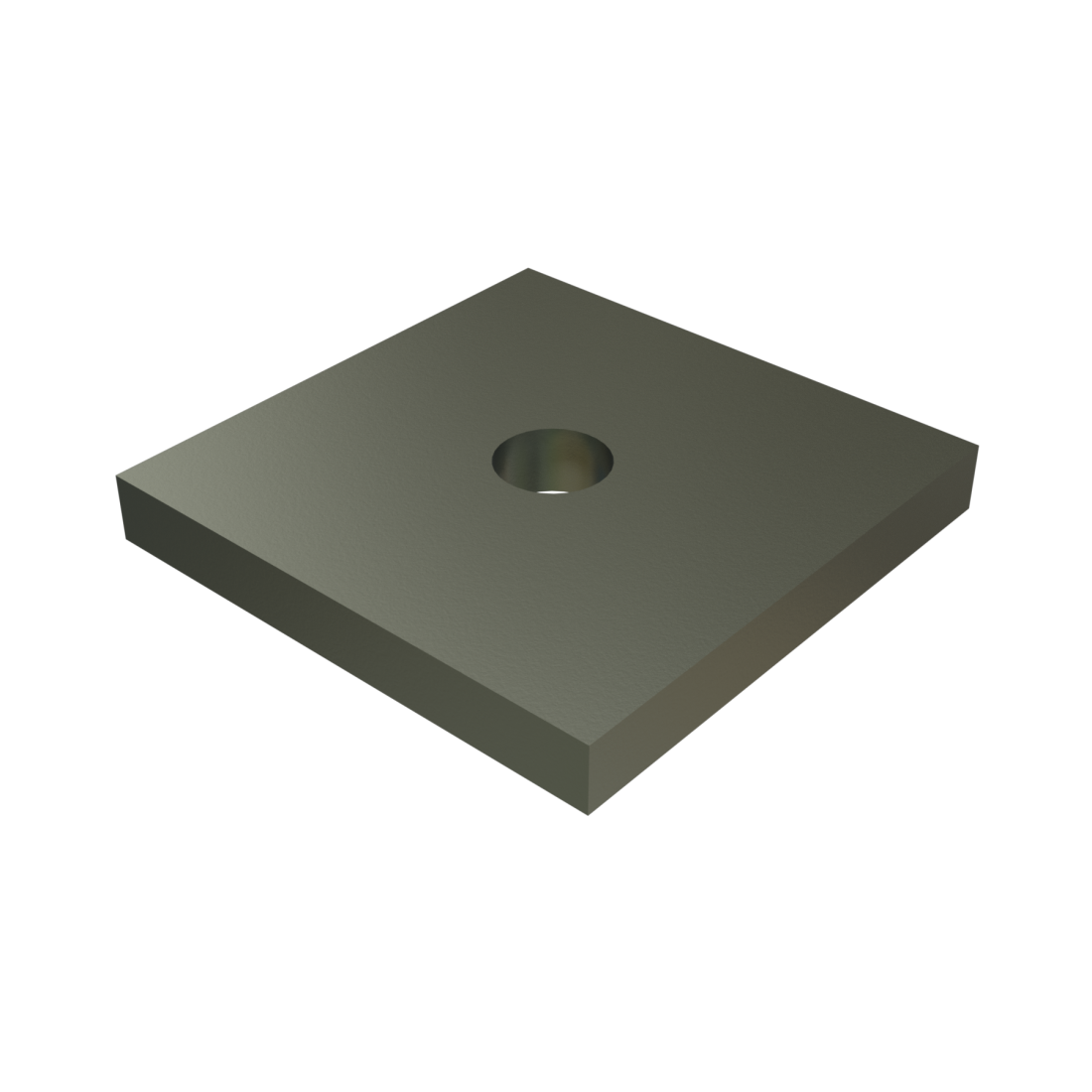

The UNISTRUT P1964 is a 5/8" square washer designed for the 1-5/8" series. Recommended for trapeze applications, this flat plate fitting features an 11/16" hole. It conforms to ASTM A1011 SS Grade 33 standards. The washer is electro-galvanized for enhanced durability.

• 5/8" Bolt Size
• Recommended for trapeze
• ASTM A1011 SS Grade 33

Product Highlights

Square washer for 1-5/8" series, ideal for trapeze applications, and meets ASTM A1011 SS Grade 33 standards.

Product Information

Standard Information

• Brand: UNISTRUT
• Manufacturer Part Number: P1964

Technical Specifications

• Bolt Size: 5/8"
• Width: 1-5/8" (41.3 mm)
• Thickness: 1/4" (6.4 mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or 0.220" (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45
• Finish: Electro-Galvanized
• Hole Diameter: 9/16" (14.3 mm)
• Hole Spacing - From End: 13/16" (20.6 mm)
• Hole Spacing - On Center: 1-7/8" (47.6 mm)
• SKU: P1964-EG
• Pack Size: Each
• Brand: Unistrut
• Web UOM: EACH
