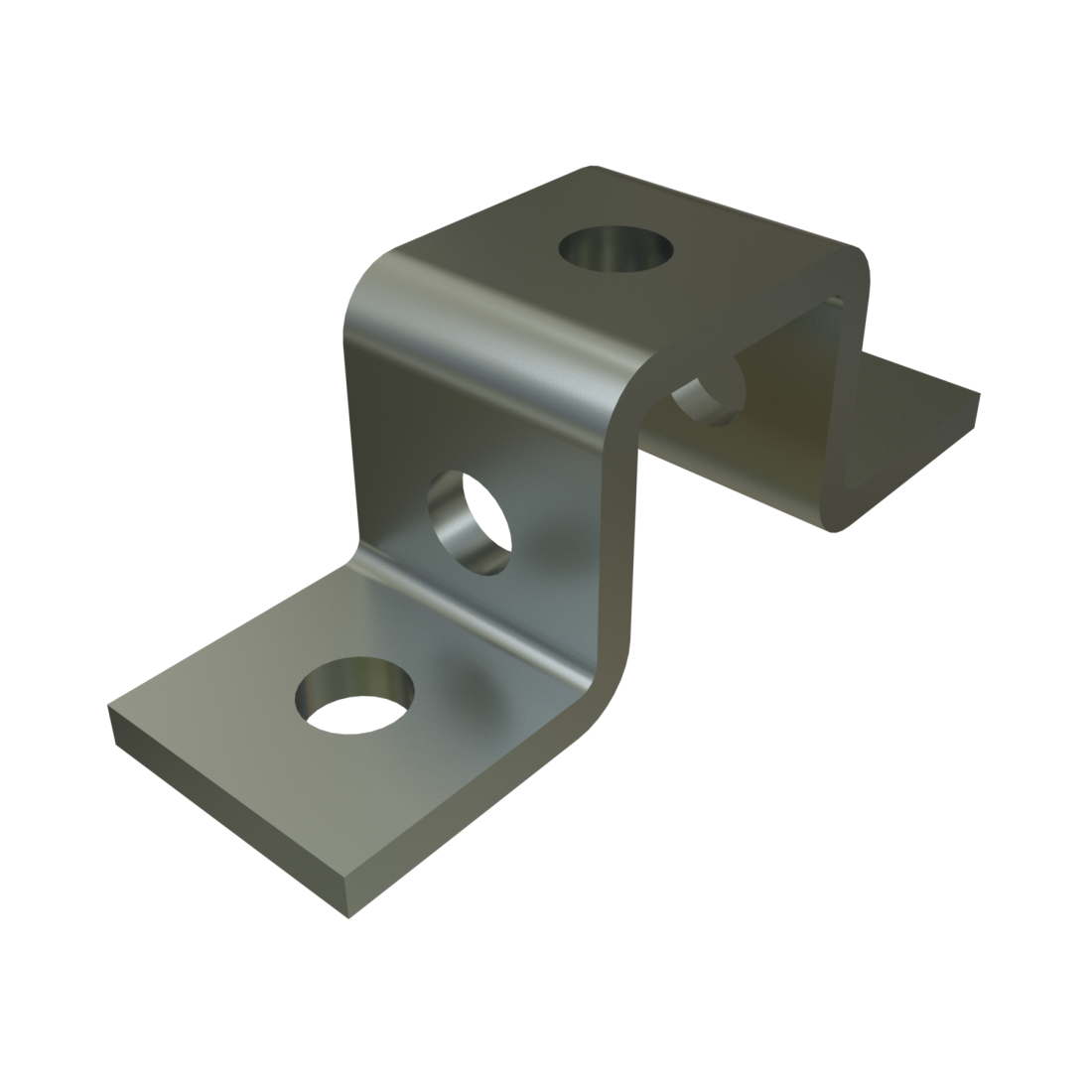

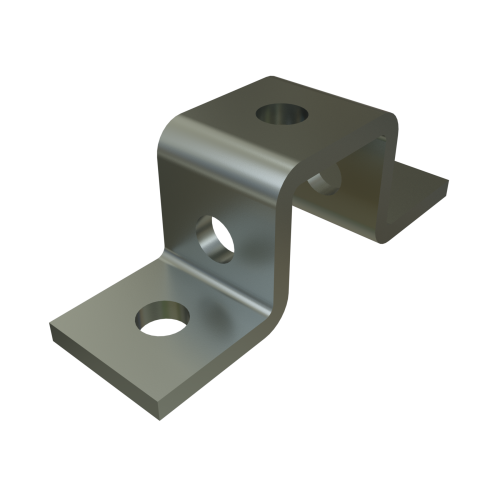

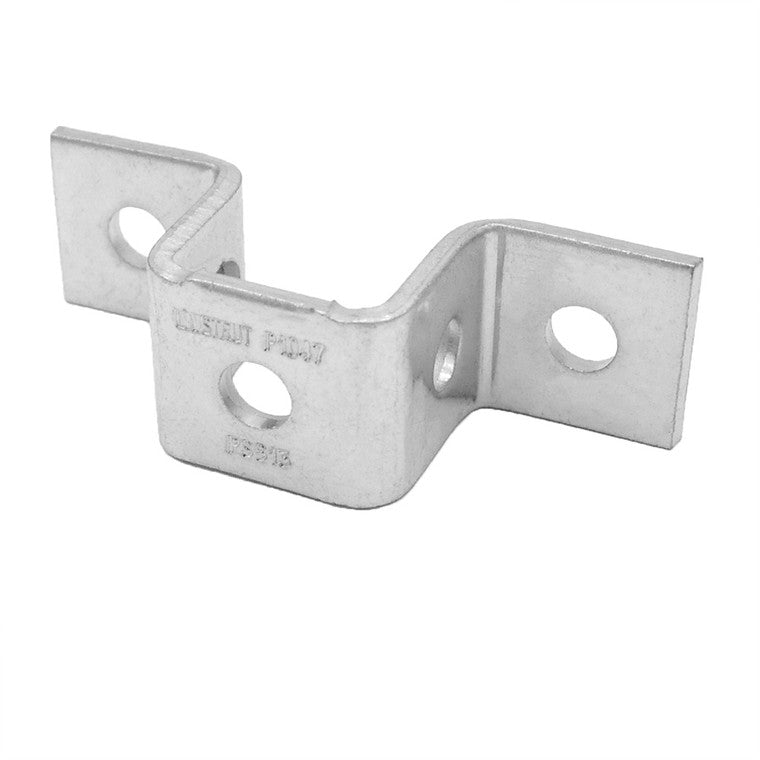

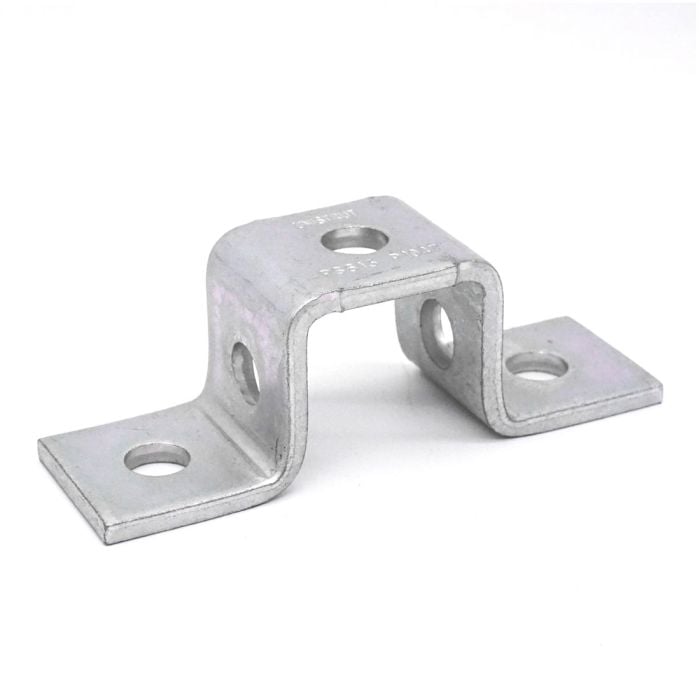

Unistrut P1047-DF U-Shape Bracket Defender Finish

Product Description

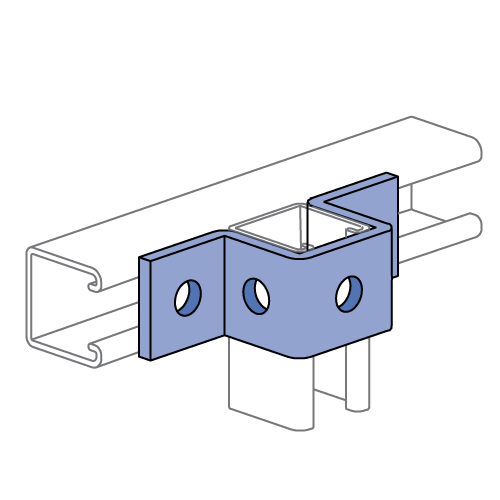

The Unistrut P1047-DF is a U-shaped bracket suitable for connecting stacked Unistrut channel sections. This bracket fits 1-5/8 inch channels and is made from steel that meets ASTM A1011 SS GR 33 standards. It includes holes for 1/2 inch fasteners and has a Defender finish for enhanced corrosion protection. The product complies with American Standard Code for Pressure Piping when used for mechanical supports.

• Designed for joining stacked Unistrut channel sections.
• Defender finish for corrosion resistance.
• Constructed from high-quality steel as per ASTM standards.

Product Highlights

The Unistrut P1047-DF bracket is built for durability and reliability in various construction applications, making it a valuable component for mechanical support systems.

Product Information

Standard Information

• Material Type: Steel
• Finish: Defender

Technical Specifications

• Hole Diameter: 9/16 inches (14mm)
• Hole Spacing (From End): 13/16 inches (21mm)
• Hole Spacing (On-Center): 1 7/8 inches (48mm)
• Width: 1 5/8 inches (41mm)
• Thickness: 1/4 inches (6.4mm)
• Base Metal: ASTM A1011 SS GR 33
• Dimensions: 5-3/8 x 1-7/8 x 1-5/8 inches
• Weight: 0.93 lb/each
• SKU: P1047-DF
