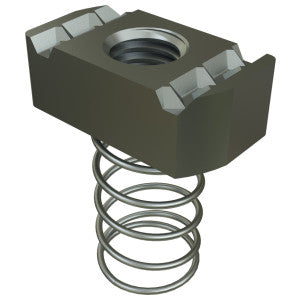

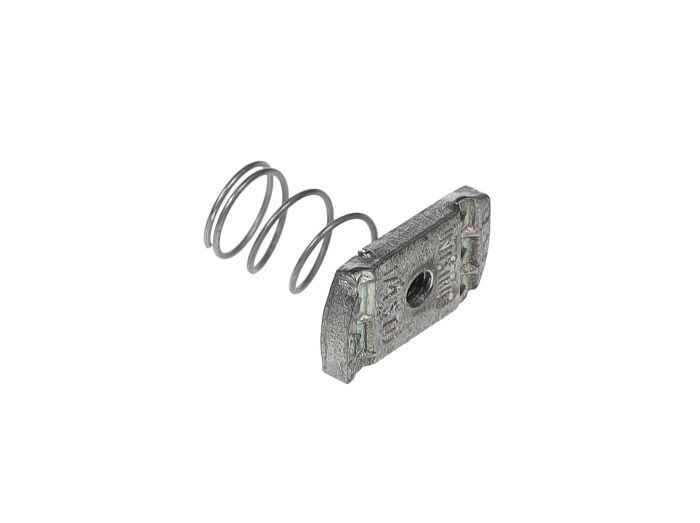

Unistrut P1006-1420EG Spring Nut 1/4 in.

Product Description

The UNISTRUT P1006-1420EG spring nut is a 1/4 in. electrogalvanized steel spring nut designed for 1-5/8 x 1-5/8 in. channels. These channel nuts are manufactured from mild steel cold rolled coil, case hardened for a secure fit, and conform to ASTM A576GR 1015 modified and A1011 SS GR 45.

• Designed to conform to the flanges on the inside of the channel.
• Manufactured from mild steel cold rolled coil.
• Case hardened, assuring positive biting action into the inturned edge of the Unistrut Channel, creating a secure fit.

Product Highlights

The UNISTRUT spring nut can be used with P1000, P1100, P2000 and P3000 Unistrut Channels.

Product Information

Standard Information

• Brand: UNISTRUT
• Manufacturer Part Number: P1006-1420EG
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• UNSPSC: 31161708
• Material: Steel
• Use With: 1-5/8 x 1-5/8 in. Channel
• Fitting Type: Channel Nut Without Spring
• Hole Diameter: 1/4 in.
• No. of Holes: 1
• Description: Channel Nut,W/Spring,1/4in.-20,EG
• Style: Spring Strut Nut
• Comments: Electro-Galvanized
• Gross Weight: 0.06 lbs
• Net Weight: 0.06 lbs
• Bolt Size: 7/8"
• Finishes: Electro-galvanized (EG), conforming to ASTM B633 type III SC1, Hot-dipped galvanized (HG), conforming to ASTM A153, Plain (PL), Unistrut Defender (DF), conforming to ASTM A1059
• Threads: Unified Screw Thread standard, ANSI B1.1, coarse series (UNC) class 2
