Unistrut P1000T_10FT-PG Strut Channel 1.625x1.625 10ft 12GA

Product Description

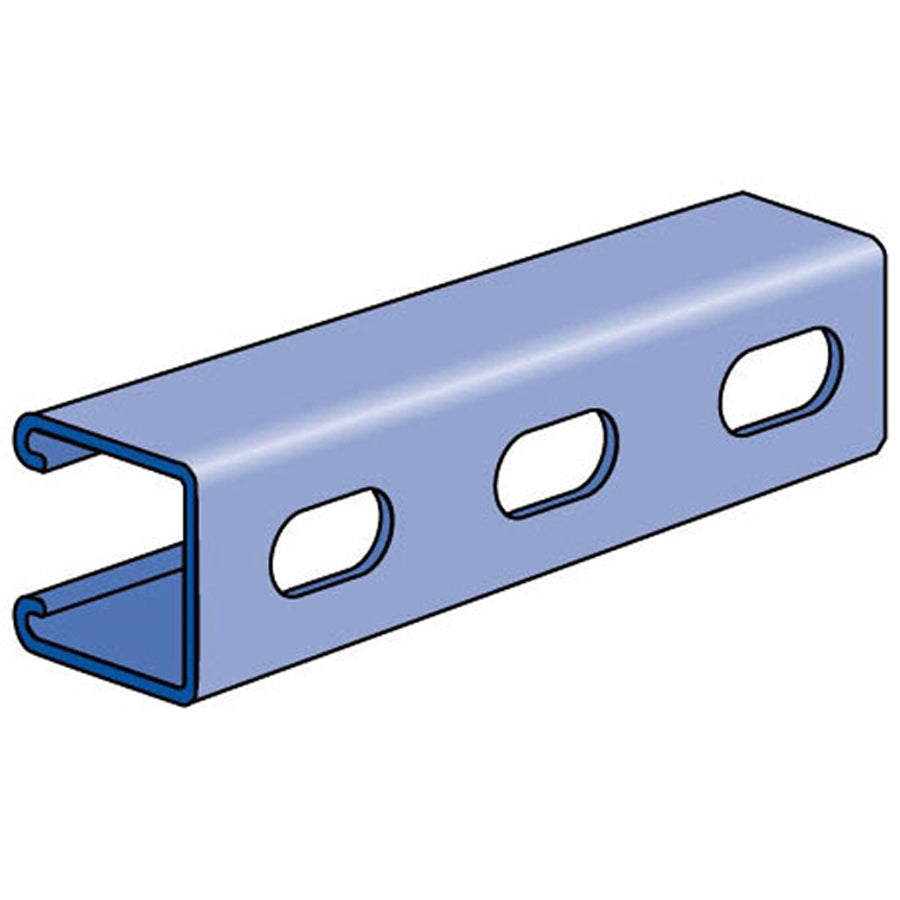

The UNISTRUT P1000T_10FT-PG is a single, slotted metal framing strut channel measuring 1.625 inches wide by 1.625 inches tall by 10 feet long, fabricated at 12 gauge thickness with a pre-galvanized finish. Each slot measures 1.125 inches in length by 0.5625 inches in width, with slots centered on 2-inch spacing along the full channel length. This channel is a core structural component used in mechanical, electrical, and plumbing support assemblies. It is installed by electricians, pipefitters, HVAC technicians, and general contractors wherever a rigid, field-adjustable framing solution is required.

This strut channel is widely used in commercial and industrial construction for trapeze supports, seismic bracing systems, ceiling grid framing, pipe and conduit runs, duct supports, cable tray installations, equipment racks, and general structural framing applications. Its slotted configuration allows hardware to be positioned and repositioned along the full length of the channel without drilling, making it a practical choice for installations where layout changes are common. Suitable for both new construction and retrofit work.

Key Features

• 1.625 inches x 1.625 inches cross-section in standard 10-foot length
• 12 gauge steel construction for rigid structural support
• Slotted configuration with 1.125 inches x 0.5625 inches slots on 2-inch centers
• Pre-galvanized finish for corrosion resistance in interior and moderately exposed applications
• Single channel profile compatible with standard strut fittings, nuts, and hardware
• Suitable for trapeze, seismic bracing, cable tray, pipe, conduit, and duct support assemblies

Compatibility

Designed for use with standard 1.625-inch strut channel fittings, spring nuts, and hardware used in metal framing systems for mechanical, electrical, and structural support applications.

Installation Notes

Installation of strut channel support systems is typically performed by licensed electricians, pipefitters, or mechanical contractors in accordance with applicable NEC, IPC, or IFGC requirements and local building codes. De-energize all circuits and shut off relevant mechanical systems before working in proximity to existing equipment. Channel may be cut to length using a metal-cutting saw or angle grinder with appropriate blade. Verify that anchor points, fasteners, and fittings are rated for the intended load before placing the system in service.

Technical Specifications

• Width: 1.625 inches
• Height: 1.625 inches
• Length: 10 feet
• Gauge: 12 gauge
• Slot Size: 1.125 inches length x 0.5625 inches width
• Center Spacing: 2 inches
• Configuration: Slotted
• Number of Channels: 1
• Finish: Pre-Galvanized
• Material: Stainless Steel
• Weight: 1.85 pounds per foot

Standard Information

• Brand: UNISTRUT
• Manufacturer Part Number: P1000T_10FT-PG
