Unistrut P-2035 Tubing Clamp 1-5/8 inches O.D.

Product Description

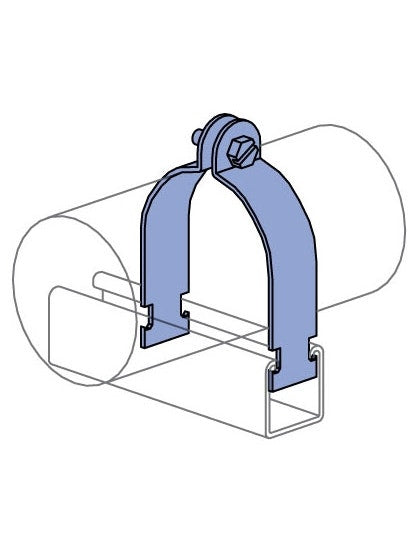

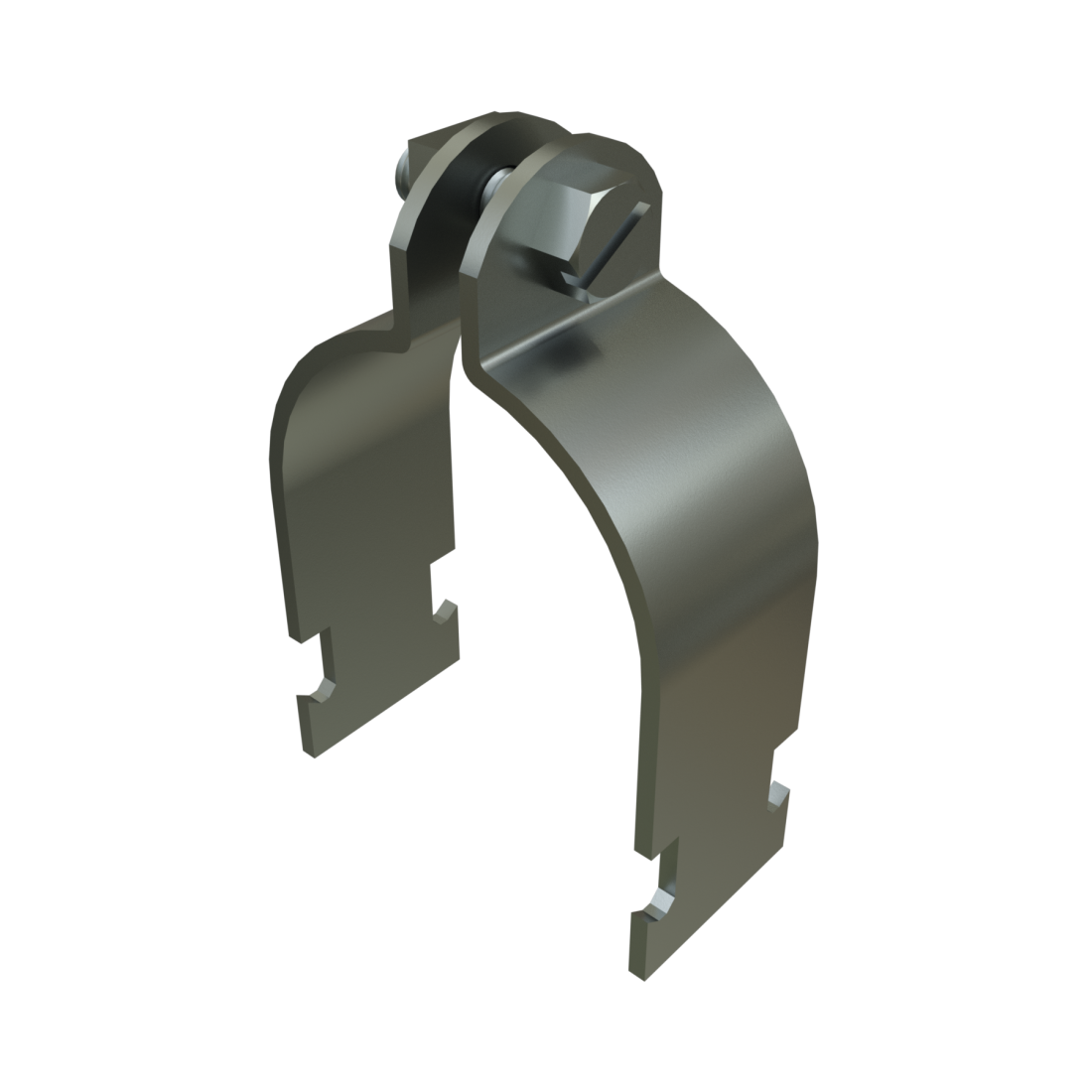

The UNISTRUT P-2035 is a tubing clamp designed for use with standard tube sizes. These clamps are commonly used for trapeze supports, wall supports, vertical runs, attachment to poles, OEM applications, and general framing needs. It features a weldless connection, eliminating welding and drilling, and is easily adjustable and reusable.

• Clamps standard tube sizes
• Easy installation
• This series is available in Electrogalvanized (EG), Hot-Dip Galvanized (HG), Stainless Steel (SS) and Aluminum (AL).
• Made in the USA

Product Highlights

The Unistrut P2035 tubing clamp is designed for the support of electrical and mechanical services. It features a unique weldless connection and is easily adjustable and reusable.

Product Information

Standard Information

• Brand: UNISTRUT
• Manufacturer Part Number: P-2035
• Country of Origin: USA

Technical Specifications

• Pipe Size (O.D.): 1-5/8"
• Brand: UniSTRUT
• Country of Origin: United States
• Type: Tubing to Strut
• Construction: 2-Piece
• Finish: Electrogalvanized
• Load Rating: 600 Pound
• Material: ASTM A1008/A575/A576/A635/A1011 SS GR 33/A1046/A36/B633 Type 3 SC1 Hot Rolled Pickled and Oiled 14 Gauge Steel
• Additional Info: Safety Factor 5; Includes Slotted Hex Head Screw and Nut; Approval CSA
• Trade Size: 1-1/4 Inch
• Outer Diameter: 1-5/8 Inch
