Unistrut Corp. P1546EG UNISTRUT P1546-EG 45D Angle Fitting

Product Description

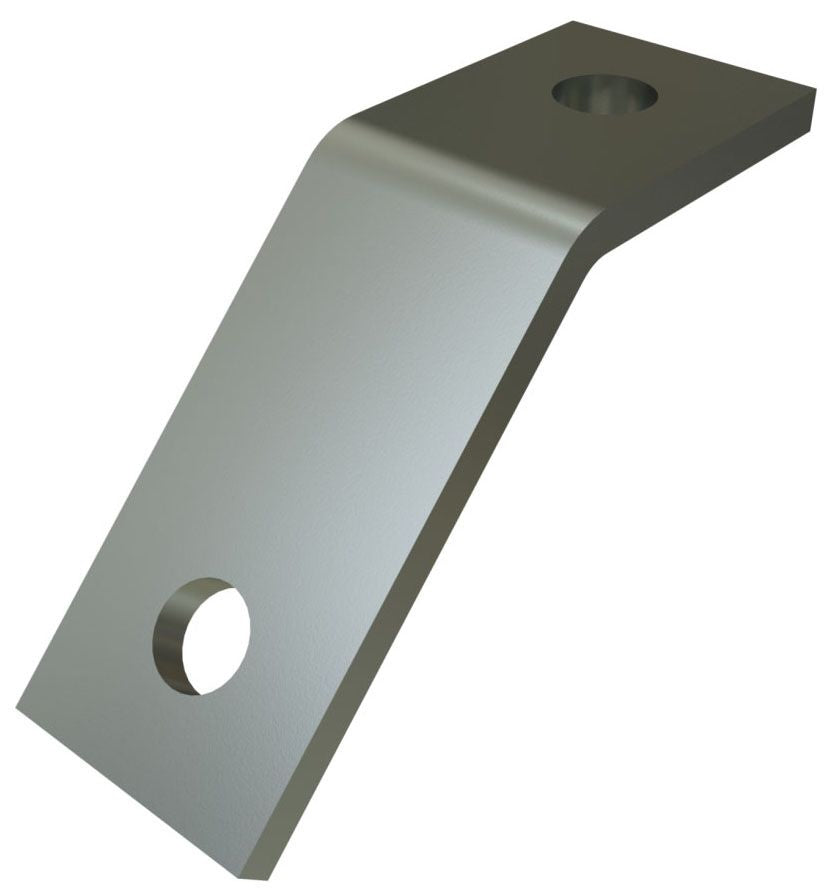

The Unistrut Corp. P1546EG 45D Angle Fitting is a robust metal bracket designed for structural support in various applications. Made from high-strength steel, this fitting is suitable for installation with P1000 series channels. It provides reliable angles for framing and mounting systems. This fitting measures two and five-sixteenths inches by three inches.

• Open angle, outside type fitting.
• Compatible with one and five-eighths inch channel width.
• Electrogalvanized finish for corrosion resistance.

Product Highlights

This fitting is part of a complete metal framing system. It meets UL and CSA standards, ensuring safety and effectiveness in various installations.

Product Information

Standard Information

• Brand: Unistrut Corp.
• Manufacturer: Unistrut Corp.

Technical Specifications

• MPN: P1546EG
• Material: ASTM A575/A576/A635/A1011 SS Gr 33/A36/B633 Type 3 SC1 steel
• Size: 2-5/16 inches x 3 inches
• Channel Width: 1-5/8 inches
• Thickness: 1/4 inch
• Weight: 0.58 pounds
• Hole Size: 9/16 inch diameter
• Bend Angle: 45 degrees
• Design Tension Load: 1500 pounds
