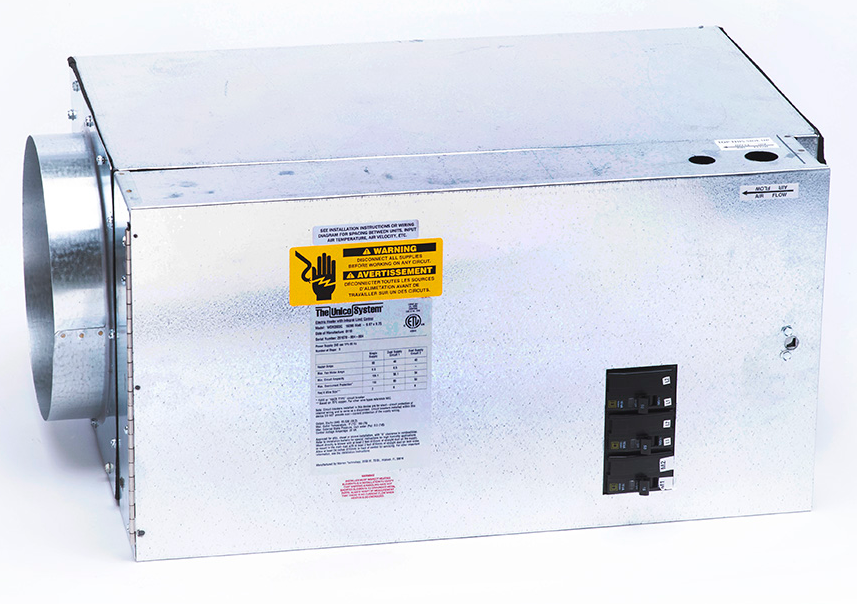

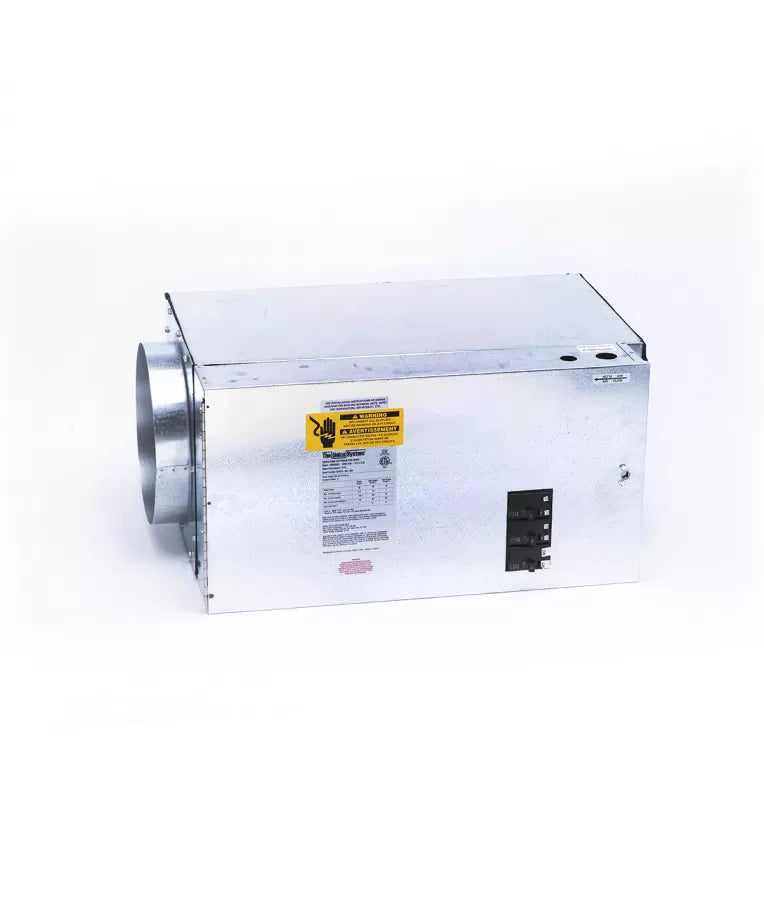

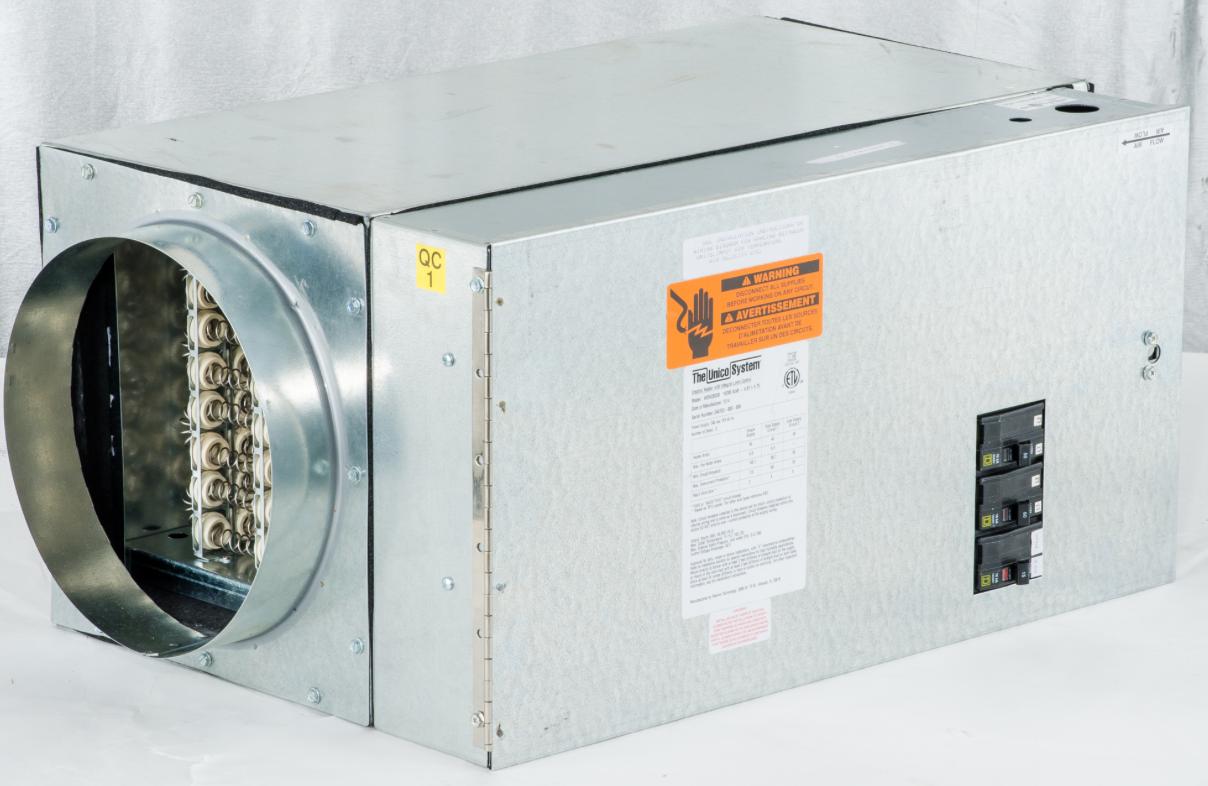

UNICONTROL WON2002-C Electric Furnace 20kW 1P 230V

Product Description

The UNICONTROL WON2002-C is an electric furnace module designed for attachment to blower units or installation in the supply air duct as a duct heater. This model is rated for twenty kilowatts at two hundred forty volts single phase.

• Compatible with air handlers 3036, 3642, and 4860.
• Includes built-in safety features such as a pressure air proving switch and an auto temperature limit.
• Two circuit breakers are included for disconnects and blower power.

Product Highlights

This electric furnace is an efficient option for heating applications in a variety of settings. It can be converted to function as a duct heater, providing flexibility for installation.

Product Information

Standard Information

• Brand: UNICONTROL
• Type: Electric Furnace

Technical Specifications

• Air Handler Compatibility: 3036, 3642, 4860
• Min Air Flow: 800 CFM
• Nominal Capacity: 68,240 Btu/hr (20.0 kW)
• Power Supply: 230/1/60
• Voltage: 240 Volts
• Product Line: WON Series
