UNICONTROL WON1002-C Electric Furnace 10kW 1P/230V

Product Description

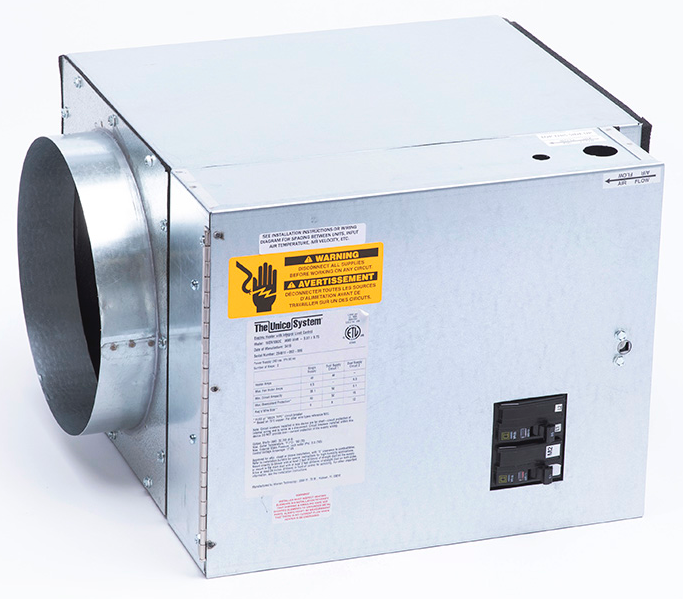

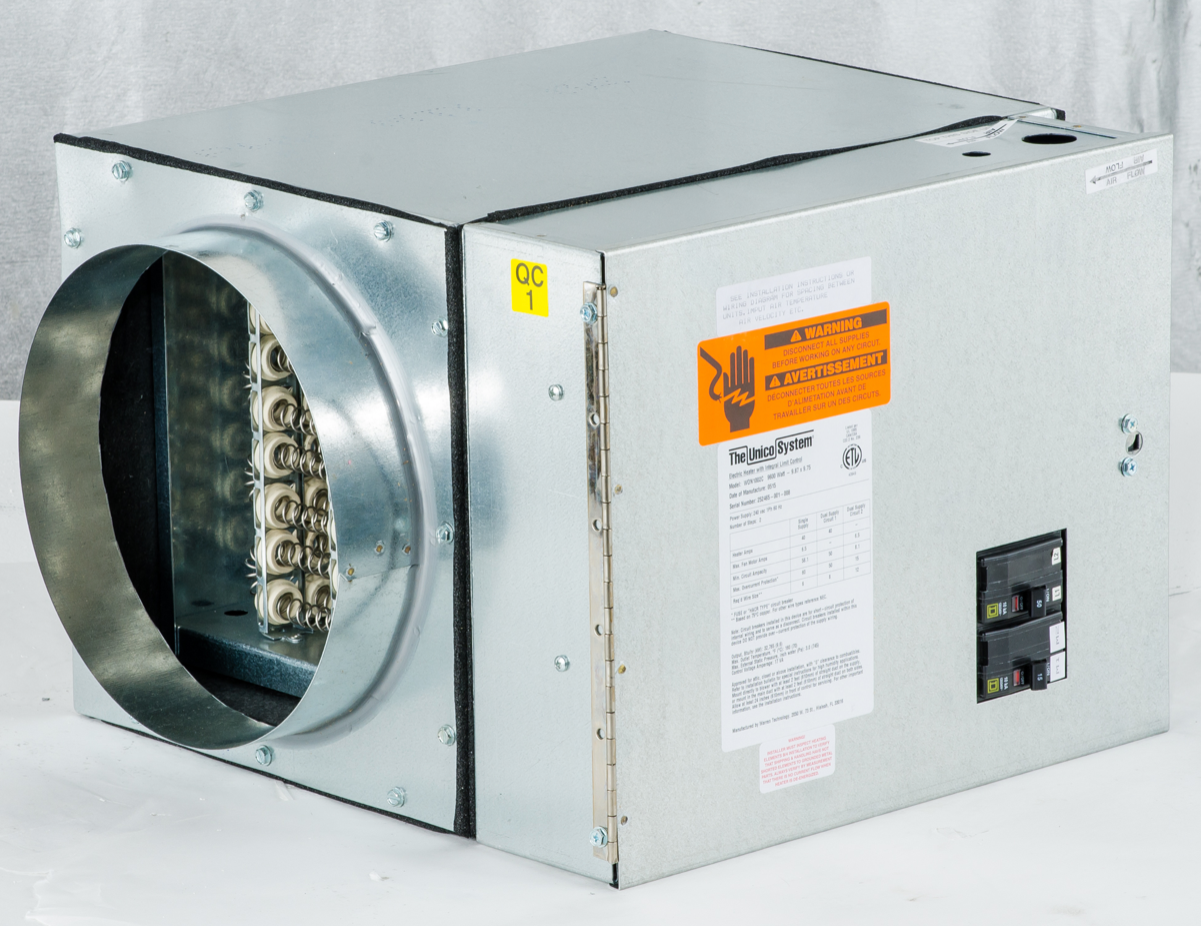

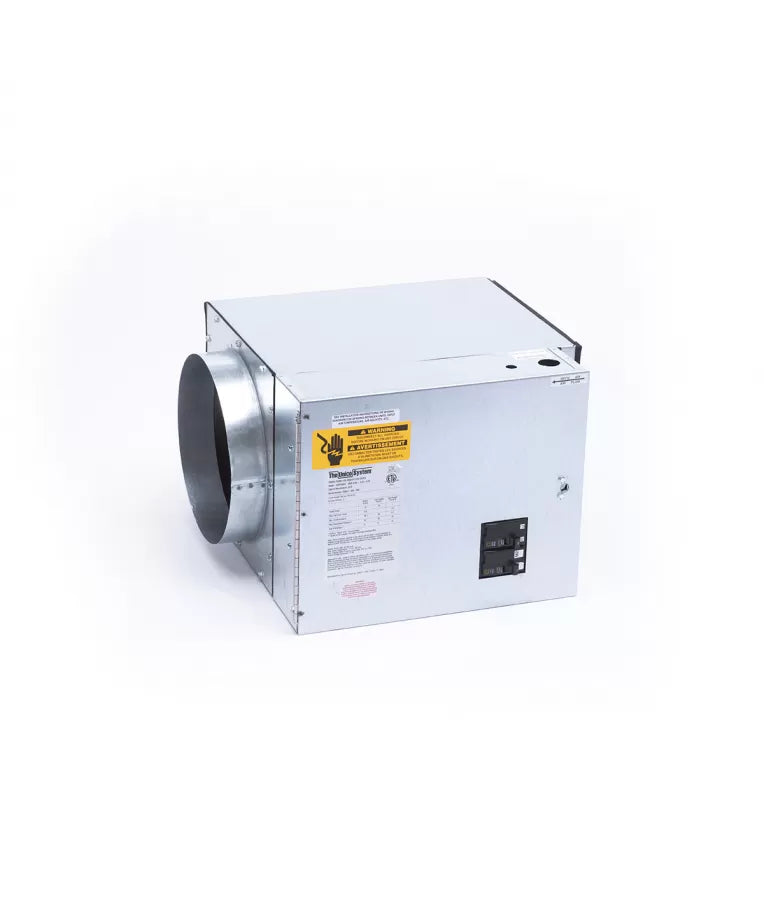

The UNICONTROL WON1002-C is an electric furnace module suitable for use with blower units or as a duct heater. It operates at ten kilowatts and requires a single-phase 230-volt power supply. This unit includes circuit breakers for safety, a fifteen amp breaker for the blower, and multiple integrated safety features such as a pressure air-proving switch and a fan relay switch. The device can be easily converted for duct heating applications.

• Nominal capacity of thirty-four thousand one hundred twenty Btu/hr.
• Includes a low voltage terminal strip for twenty-four volt control.
• Compatible with air handlers 2430, 3036, 3642, and 4860.

Product Highlights

The furnace features magnetic de-energizing contactors for each heating element, ensuring operational safety and efficiency.

Product Information

Standard Information

• MPN: WON1002-C
• Brand: UNICONTROL

Technical Specifications

• Nominal Capacity: 34,120 Btu/hr (10.0 kW)
• Power Supply: 230/1/60
• Min Air Flow: 500 CFM (0.24 m3/s)
• Voltage: 240 Volts
• Certifications: ETL
• Dimensions: 16.00 inches x 20.00 inches x 29.00 inches
• Weight: 28.00 lbs
