UNICONTROL WON0502-C Electric Furnace 5kW 1P/230V

Product Description

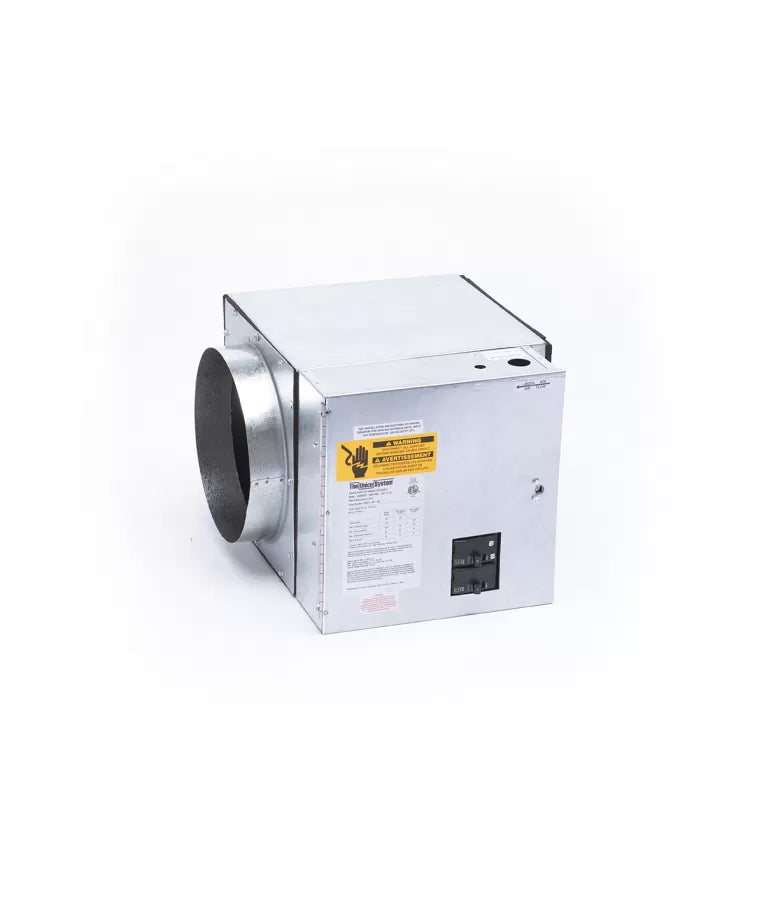

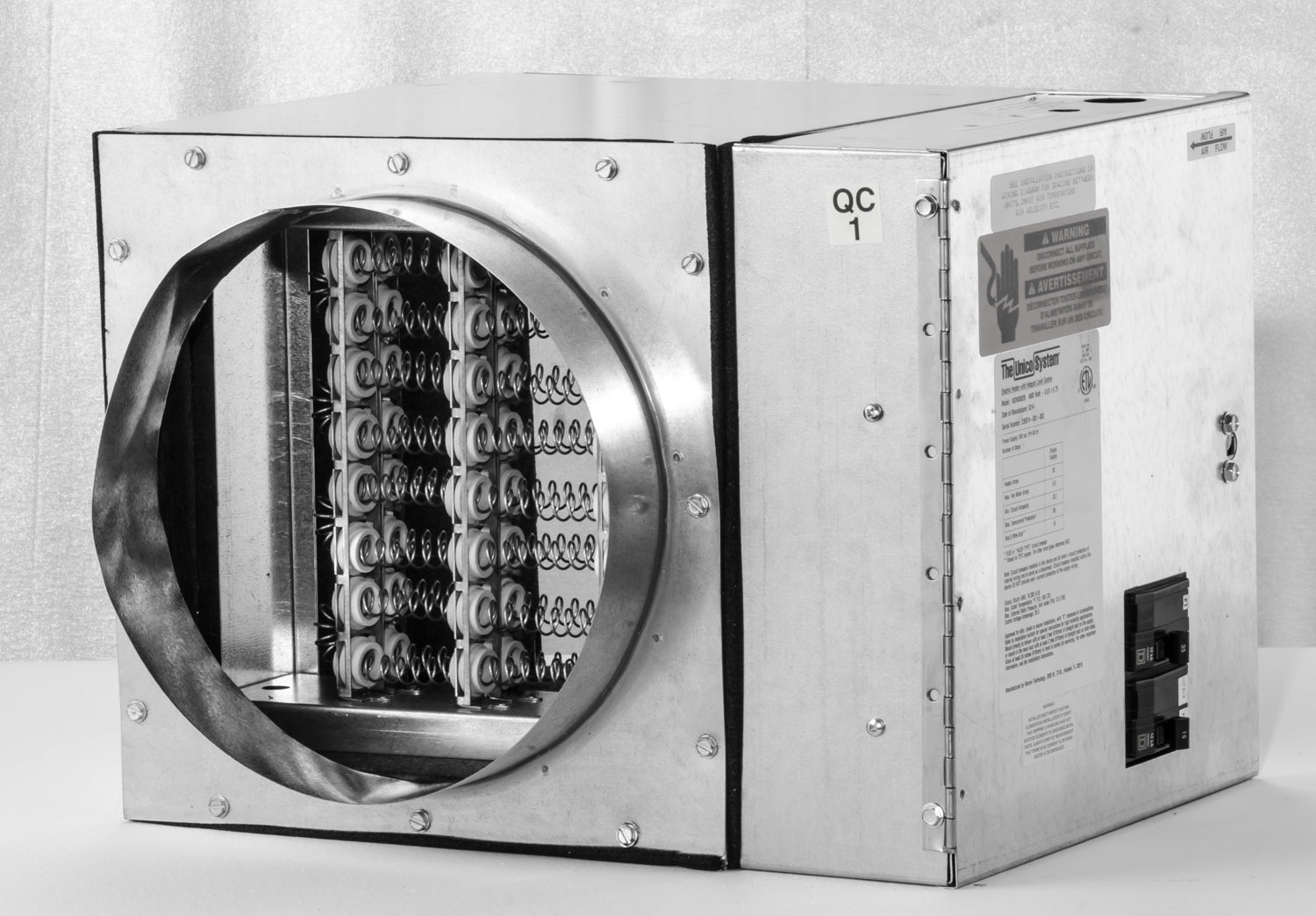

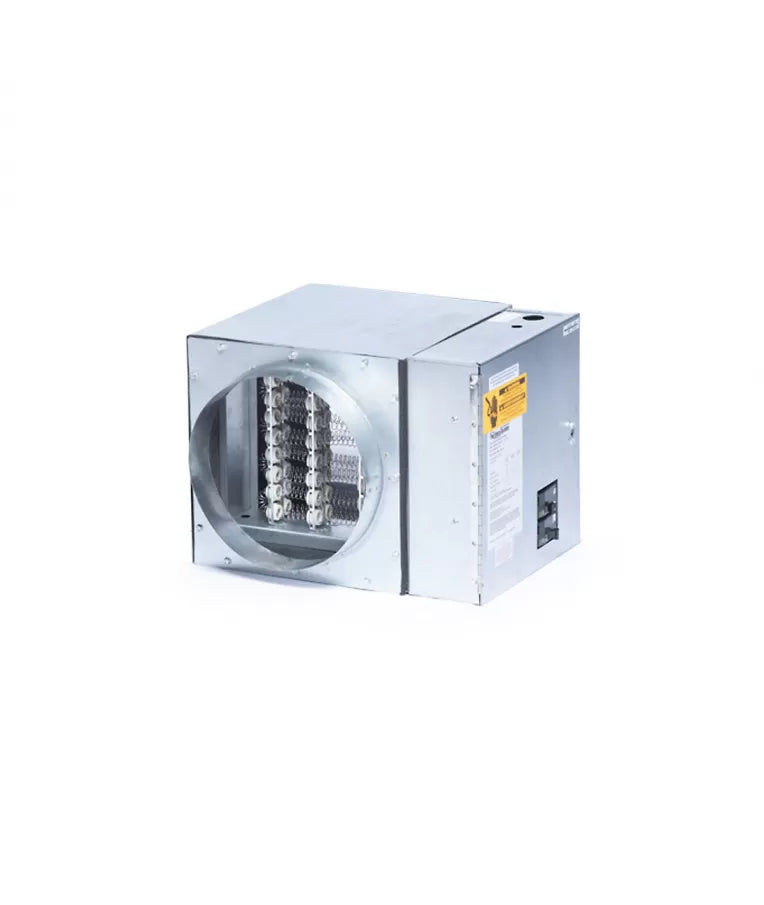

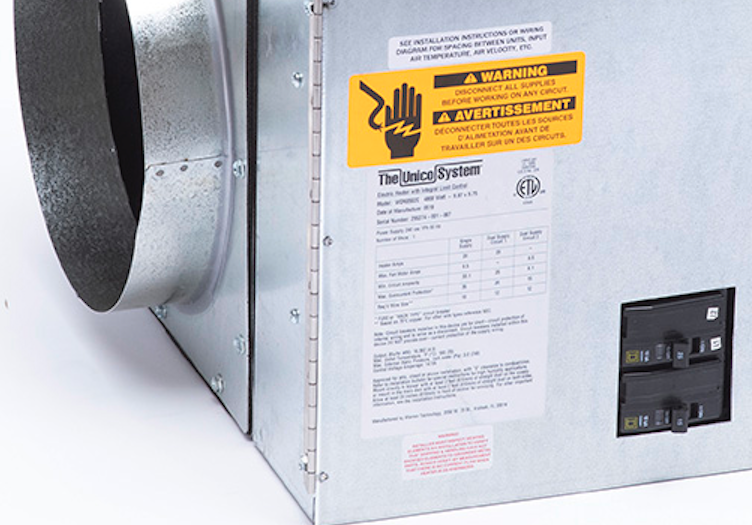

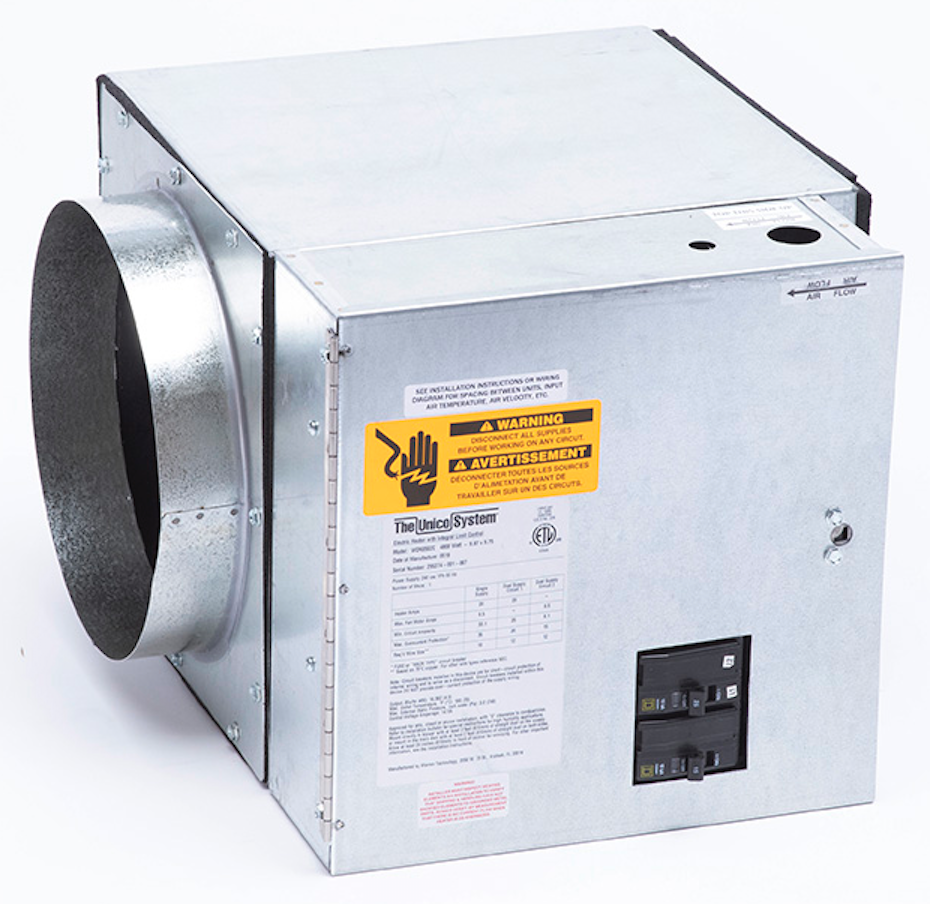

The UNICONTROL WON0502-C is an electric furnace module suitable for blower units or supply air ducts. It operates at a power of five kilowatts using a 230-volt single-phase supply. The design includes a circuit breaker for safety and a fifteen-amp breaker for the blower. The unit has several safety features like a pressure air proving switch, fan relay switch, auto temperature limit, and fuse links. It also includes a ten-inch round start collar and an eleven and a half-inch square start collar.

• Can be converted to a duct heater.
• Features magnetic de-energizing contactors for each element.
• Equipped with a low airflow pressure switch.

Product Highlights

This electric furnace is ideal for heating applications in residential or commercial settings and is compatible with various air handlers.

Product Information

Standard Information

• Brand: UNICONTROL
• MPN: WON0502-C

Technical Specifications

• Nominal Capacity: 17,060 Btu/hr (5.0 kW)
• Power Supply: 230/1/60
• Air Handler Compatibility: All sizes
• Min Air Flow: 250 CFM
• Voltage: 240 Volts
• Maximum Air Flow: 250 CFM
