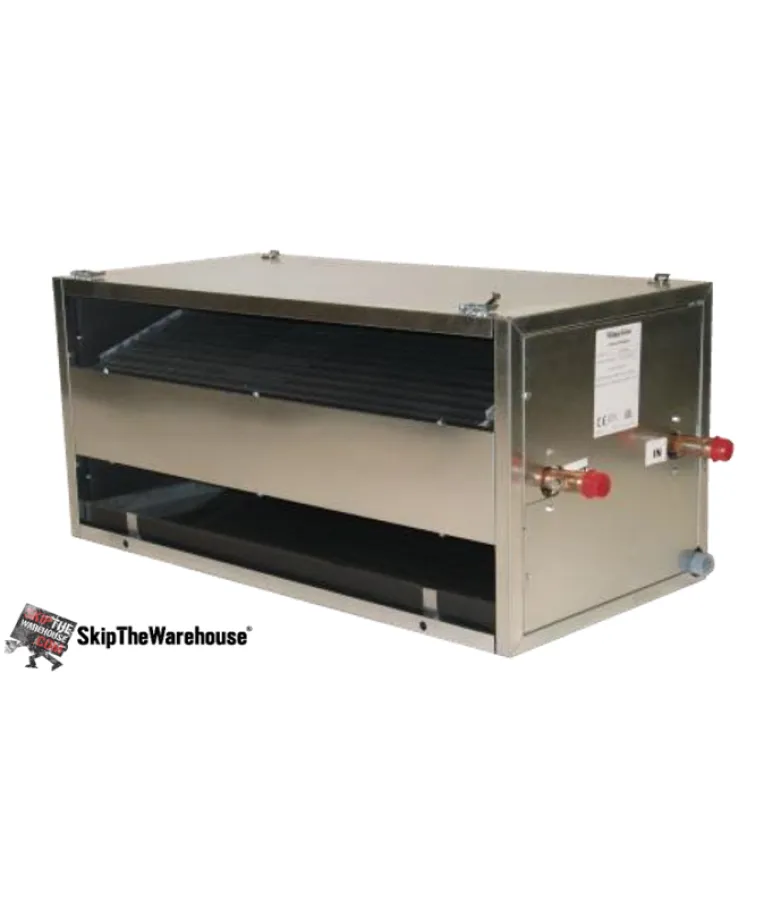

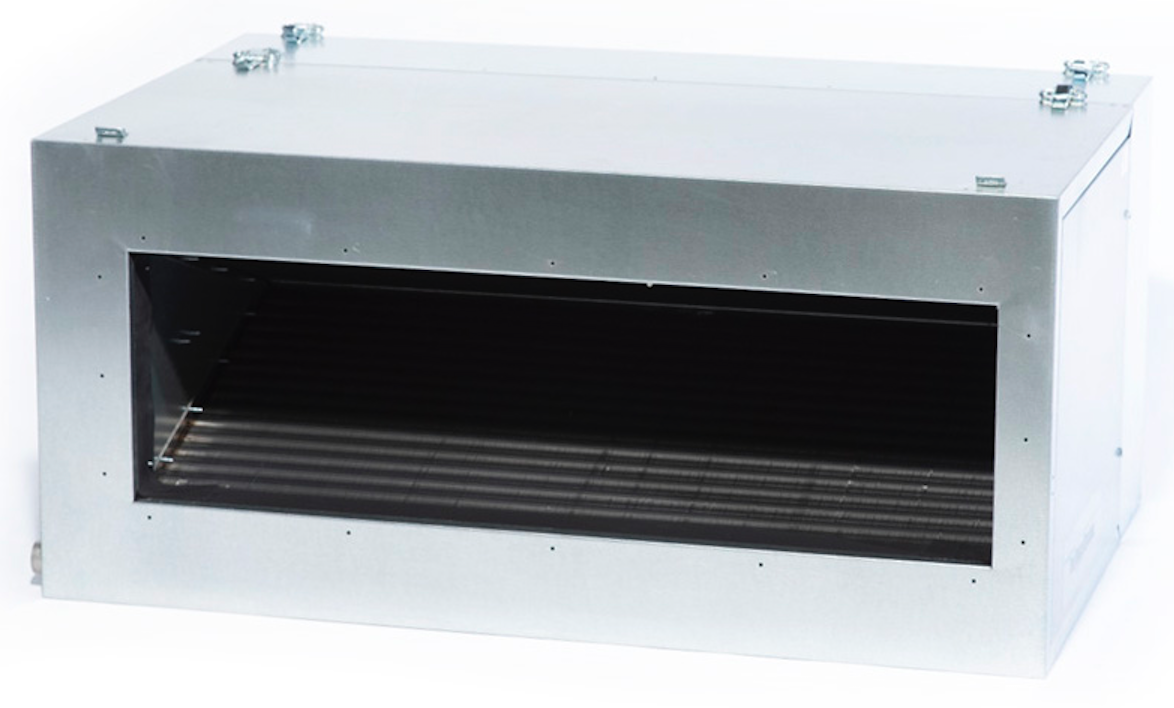

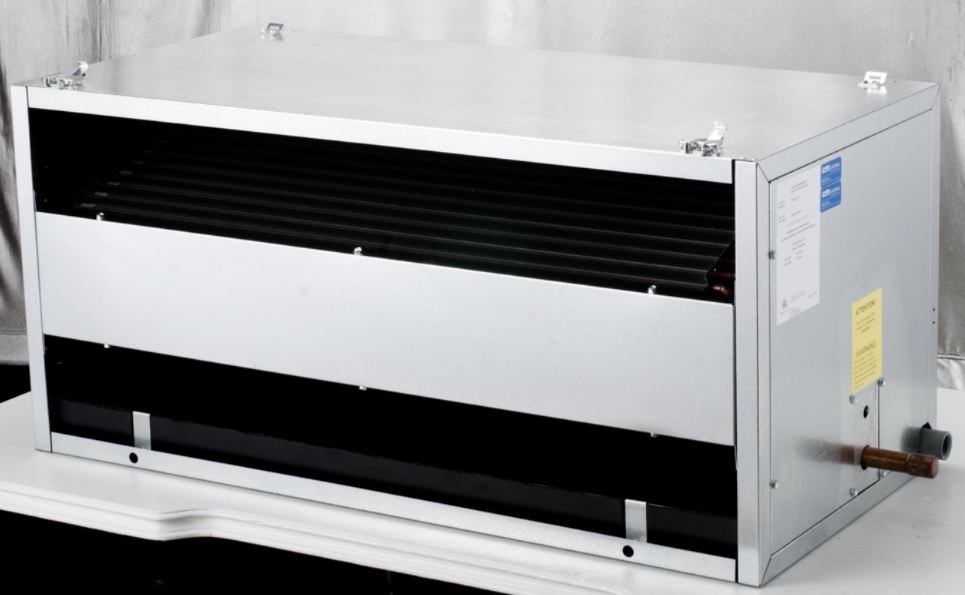

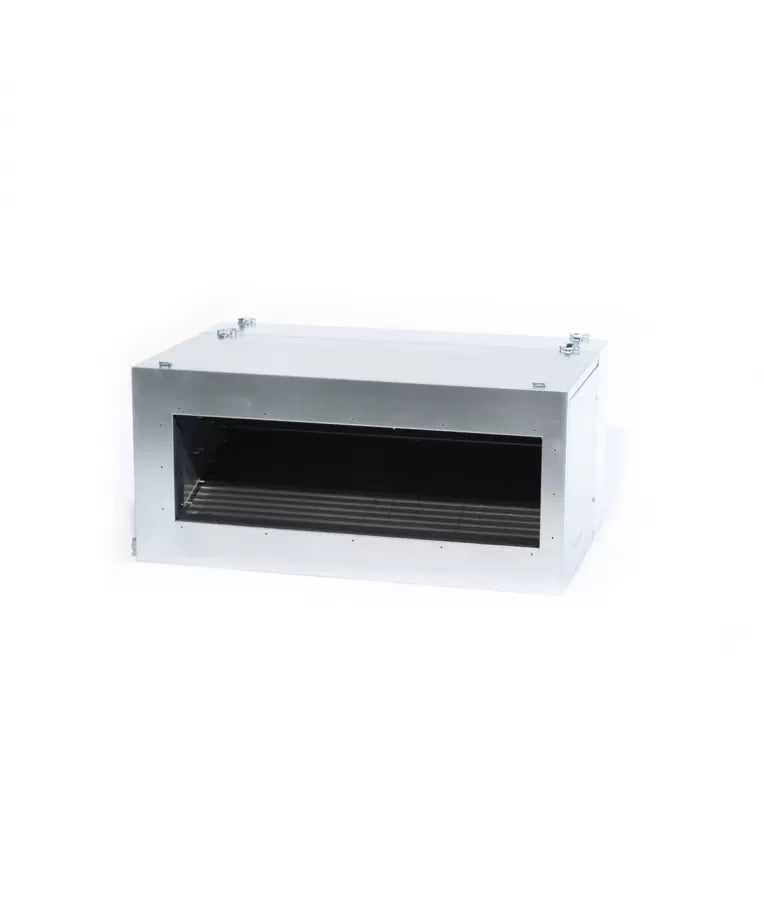

UNICONTROL M4860CL1-C Chilled Water Coil Module 4 to 5 Ton

Product Description

The UNICONTROL M4860CL1-C is designed for chilled water applications in cooling systems with a capacity of four to five tons. It has a stainless steel drain pan for reliable drainage and facilitates straightforward installation alongside compatible UNICONTROL blower modules.

• Modular construction allows for flexible configurations.

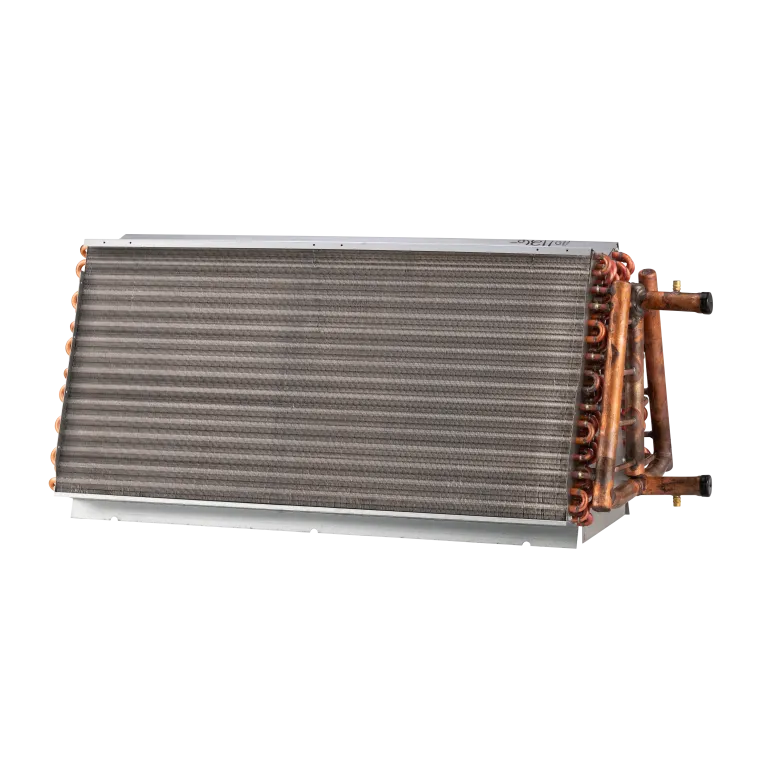

• Enhanced aluminum fins and copper tubes improve efficiency.
• Compatible with ground source chillers for geothermal systems.

Product Highlights

This chilled water coil module is ideal for both zone cooling in central chiller systems and connection with residential chilled water units. Multiple units can be integrated to cater to larger cooling requirements.

Product Information

Standard Information

• Model Series: M-Series
• Unico Model: 4860

Technical Specifications

• Coil Type: Chilled Water
• Tonnage: 4.0-Ton to 5.0-Ton
• Refrigerant Type: Water
• Design Pressure: 500 PSIG
• Water Connection: 3/4 Female Threaded
• Tube Diameter: 3/8
• Number of Rows: 4
• Fin Density: 15.5/in
• Net Coil Face Area: 7.44 ft² (0.69 m²)
• Nominal Capacity: 69,000 Btu/hr (17.5 kW)
• Maximum Air Flow: 1400 CFM
• Minimum Air Flow: 300 CFM
• Installation Orientation: Horizontal, Vertical Upflow
