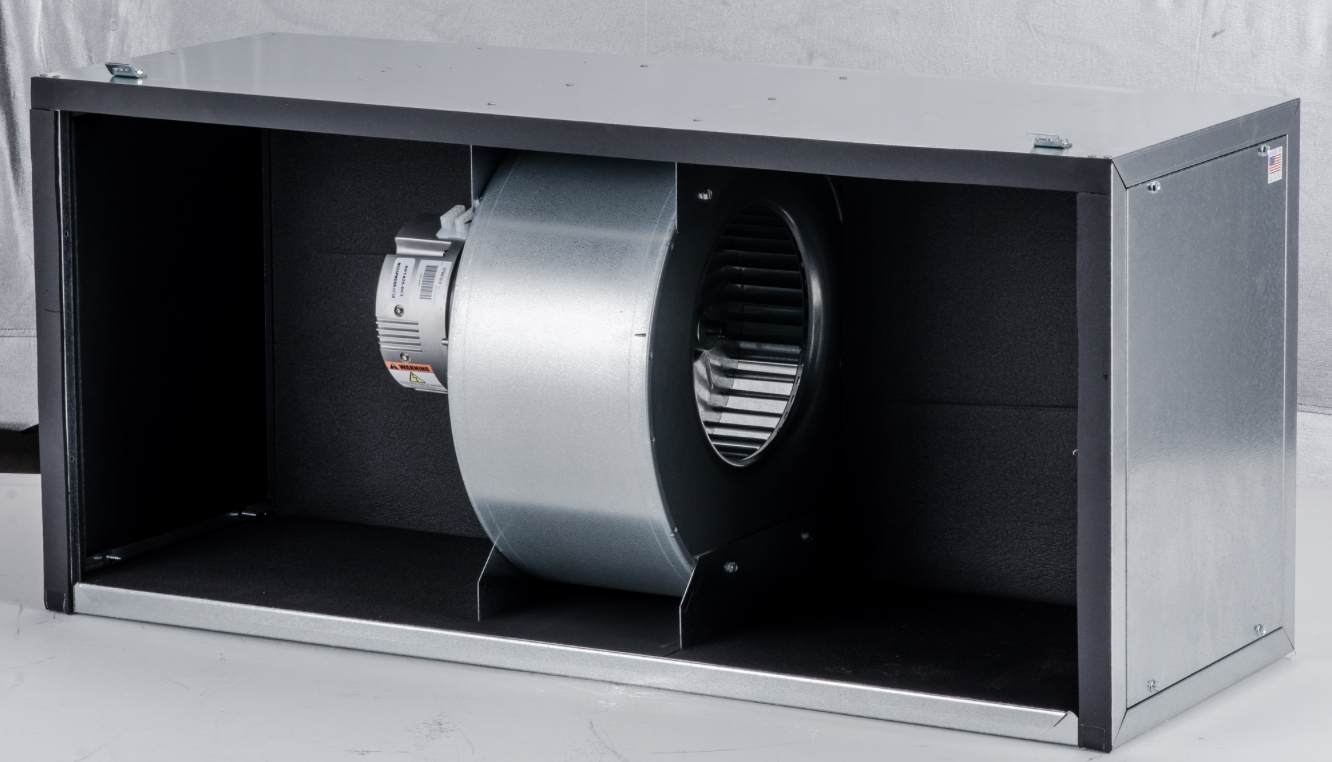

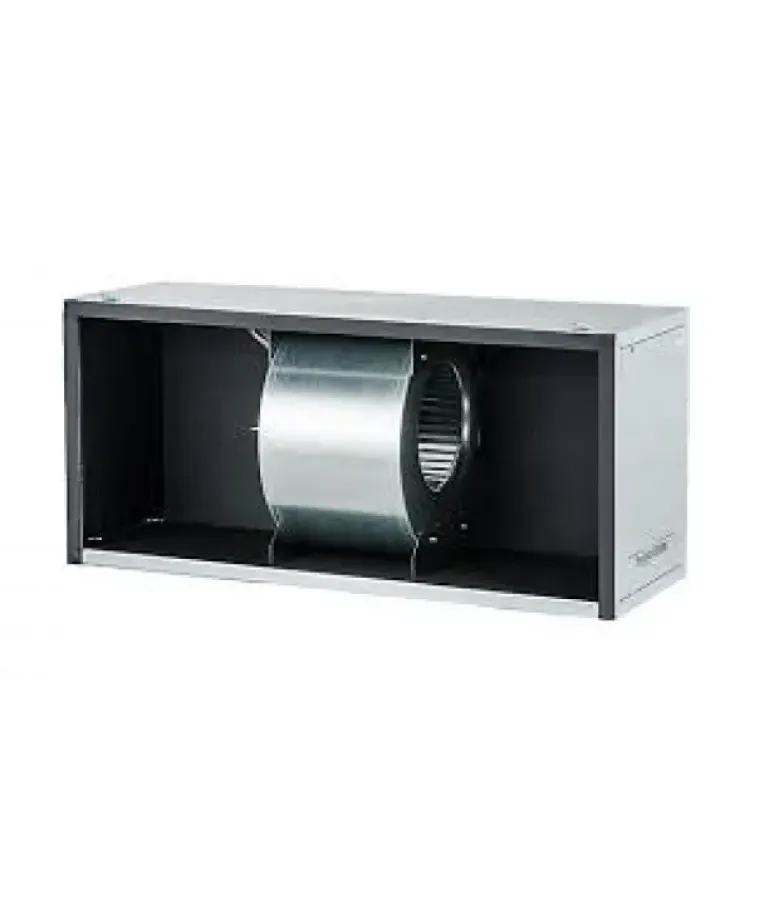

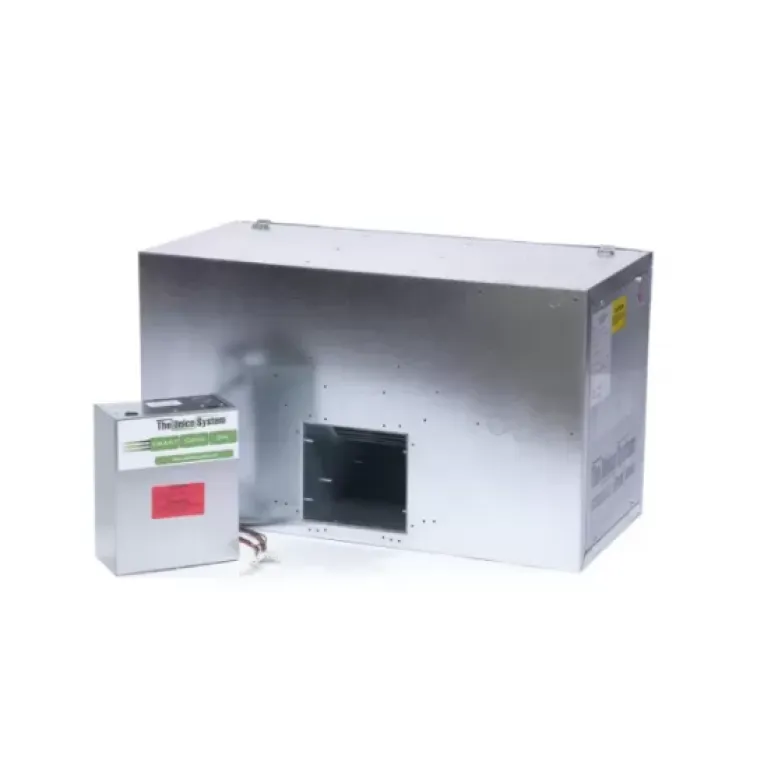

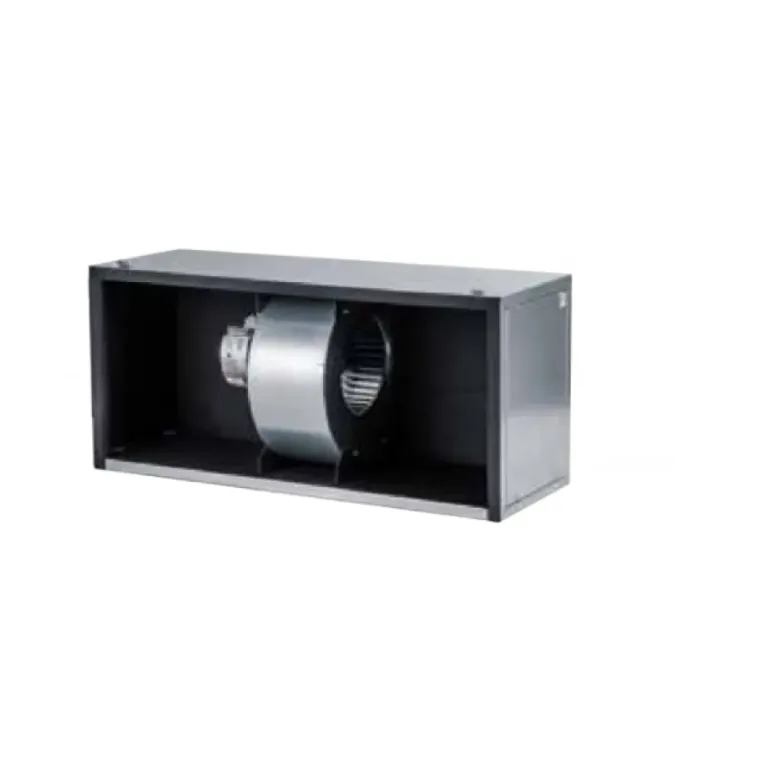

UNICONTROL M3642BL2-ST2 Blower Module 3.0-3.5 Ton PSC 230V

Product Description

The UNICONTROL M3642BL2-ST2 is a blower module built for small-duct high-velocity systems. This module operates at a capacity of three to three and a half tons and uses a single-speed PSC motor with a voltage of 208/230V. Its modular design supports different configurations, making it versatile for various setups. This blower meets the U.S. Department of Energy standards for efficiency in SDHV systems, achieving a minimum external static pressure of 1.2 inches of water when used with a compatible cooling module.

• Modular construction allows for multiple configurations.
• Designed specifically for small-duct high-velocity systems.
• Meets U.S. Department of Energy efficiency specifications.

Product Highlights

The UNICONTROL M3642BL2-ST2 is ideal for efficient airflow in high-velocity systems.

Product Information

Standard Information

• Brand: UNICONTROL
• MPN: M3642BL2-ST2

Technical Specifications

• Model Series: M-Series
• Motor Type: PSC
• Power Supply: 208-230/1/60
• Tonnage: 3.0-Ton, 3.5-Ton
• Motor HP: 1 HP
• Motor RPM: 1700 RPM
• Voltage: 208/230 V
• Motor Speed: Single Speed
• Capacity: 36,000 to 42,000 BTU/h
• Full Load Current: 6.2 A
• Starting Current: 17.4 A
• Min. Circuit Ampacity: 7.8 A
• Max. Overcurrent Protection: 15 A
• Allowable Breaker Sizes: 15 A
• Blower Wheel Diameter: 9.5 in
• Blower Wheel Width: 5.0 in
• Fan Motor Size: 1 HP
• Maximum Air Temperature Over Motor: 60 °F
• Supply Duct Size, Minimum: 9 in
• Sound Pressure Level: 56 dB(A)
• Nominal Capacity: 3 to 3.5 ton
• Flow Rate: 1100 CFM
