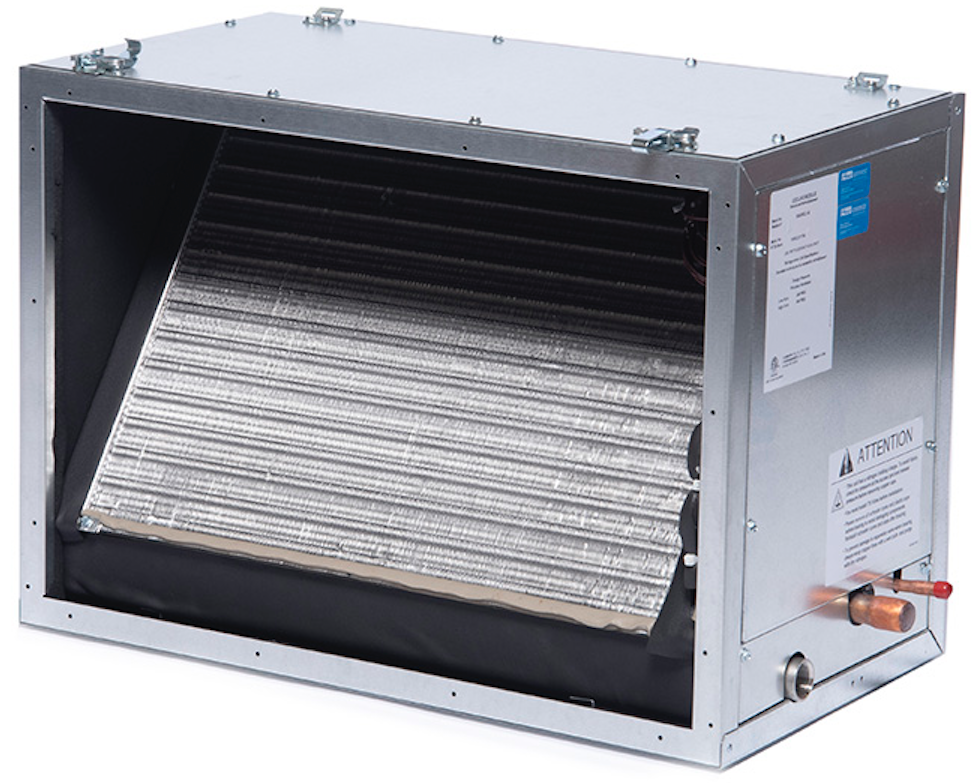

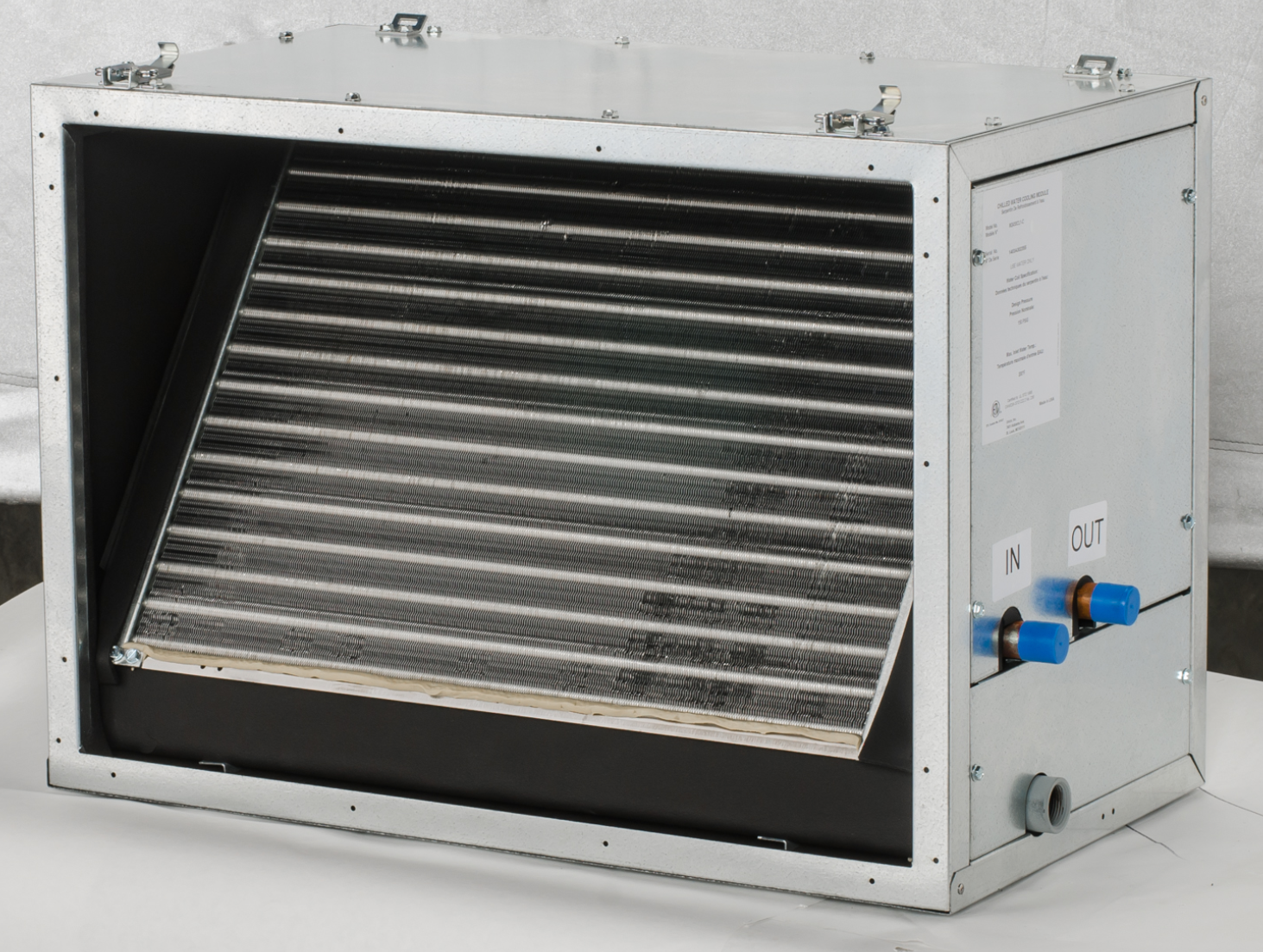

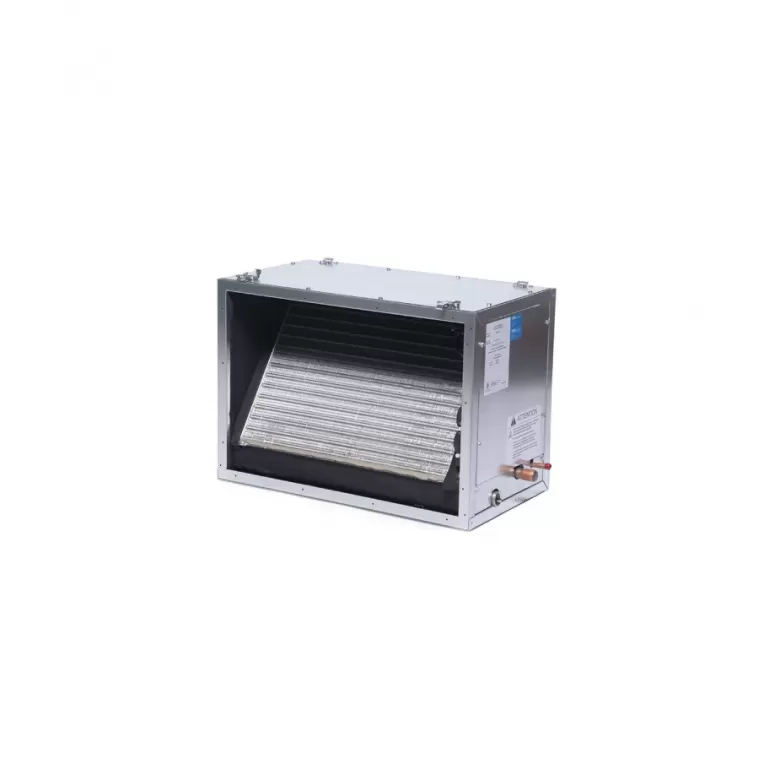

UNICONTROL M2430CL1-C 2-2.5 Ton Chilled Water Coil Module

Product Description

The UNICONTROL M2430CL1-C is a two to two point five ton chilled water coil module. It is ideal for zone cooling applications. The module integrates into a central chiller system or can operate with a residential chilled water unit. For extensive cooling needs, multiple units can work together to manage various zones. It is also compatible with ground source chillers, supporting geothermal setups.

• Modular construction allows for various configurations.

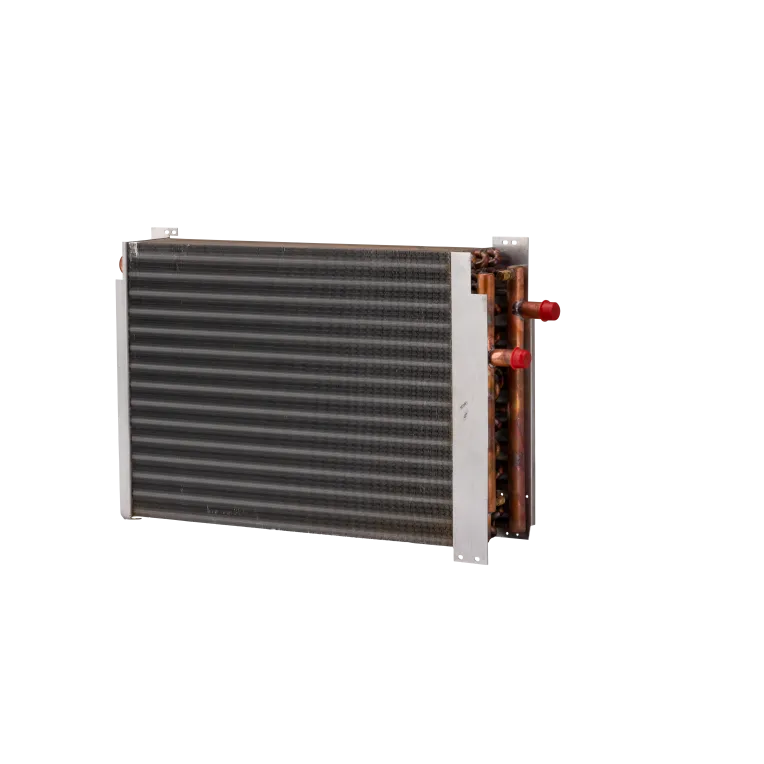

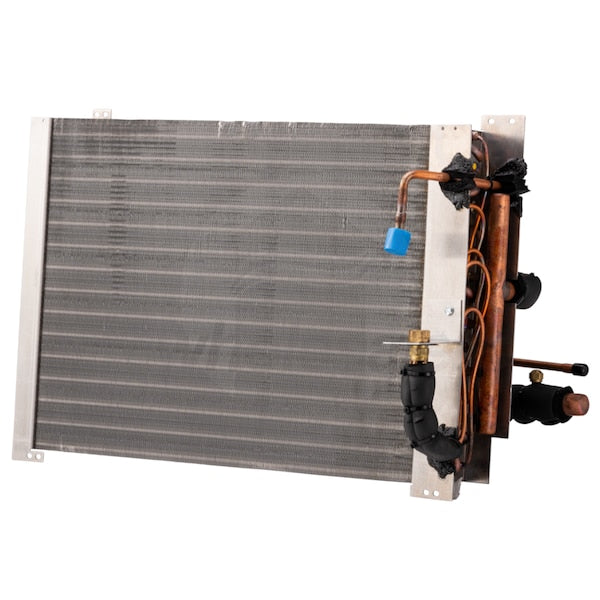

• Includes enhanced aluminum fins and copper tubes.
• Equipped with an EZ trap for easy maintenance.

Product Highlights

This coil module provides reliable cooling with an advanced design suitable for different installation types. It offers durability and efficiency in managing indoor climates.

Product Information

Standard Information

• Brand: UNICONTROL
• MPN: M2430CL1-C

Technical Specifications

• Tonnage: 2.0-Ton, 2.5-Ton
• Nominal Capacity: 37,900 Btu/hr (8.7 kW)
• Coil Type: Chilled Water
• Installation Orientation: Horizontal, Vertical Upflow
• Connection Size: 3/4 Inch
• Refrigerant Type: Water
• Tube Diameter: 3/8 in. (9.52 mm)
• Fin Density: 15.5/in. (610/m)
• Design Pressure: 500 psig (3.45 MPa)
• Net Coil Face Area: 2.13 ft2 (0.20 m2)
