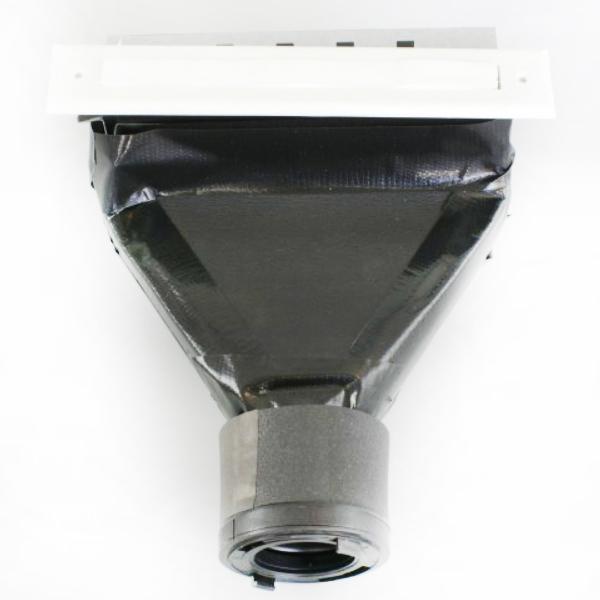

Unico upc-67ta 90 Degree Twist-fit Slotted Supply Outlet

Product Description

The UNICO upc-67ta is a 90-degree twist-fit slotted supply outlet designed for use with the Unico high-velocity air distribution system. It features a slotted opening of 1/2 inch by 8 inches and installs into a 2-inch round duct port at a 90-degree angle using a tool-free twist-lock connection. The outlet is constructed from white plastic and ships with a mounting bracket, hanger bars, and a white plastic trim plate included in the box. It is installed by HVAC technicians working on high-velocity mini-duct systems in residential and light commercial applications.

The upc-67ta is purpose-built for the Unico high-velocity mini-duct system, which uses significantly less building space than conventional ducted systems. A 2-inch round port accepts the twist-fit body, and the slotted face delivers high-velocity conditioned air in a pattern suited to small-duct layouts. This outlet is appropriate for both air conditioning and heat pump system configurations where supply outlets must be installed in tight wall, floor, or ceiling cavities.

Key Features

• 90-degree twist-fit connection installs without tools into a 2-inch round duct port
• Slotted face opening of 1/2 inch by 8 inches for high-velocity air delivery
• White plastic construction with matching white trim plate for finished appearance
• Includes mounting bracket and hanger bars for secure in-cavity positioning
• Compatible with air conditioning and heat pump system types
• Sold individually, one outlet per box

Compatibility

Designed for use with the Unico high-velocity mini-duct air conditioning and heat pump system. Fits 2-inch round supply duct ports standard to the Unico System layout.

Installation Notes

Installation is performed by a licensed HVAC technician familiar with high-velocity mini-duct systems. Power down the air handler and confirm the system is de-energized before handling duct connections or placing outlets. The twist-fit body seats into the 2-inch round port and locks with a quarter-turn rotation — do not force or over-rotate. Verify the trim plate sits flush against the finished surface before restoring system operation.

Technical Specifications

• Outlet Type: Slotted supply outlet, 90-degree twist-fit
• Port Size: 2 inches round
• Slotted Opening: 1/2 inch x 8 inches
• Overall Size: 2 inches x 4 inches
• Material: Plastic
• Color: White
• Includes: Mounting bracket, hanger bars, white plastic trim plate
• Application: Air conditioning and heat pump systems
• Packaging Quantity: 1 per box
• Warranty: 1 year limited

Standard Information

• Brand: UNICO
• Manufacturer Part Number: upc-67ta
