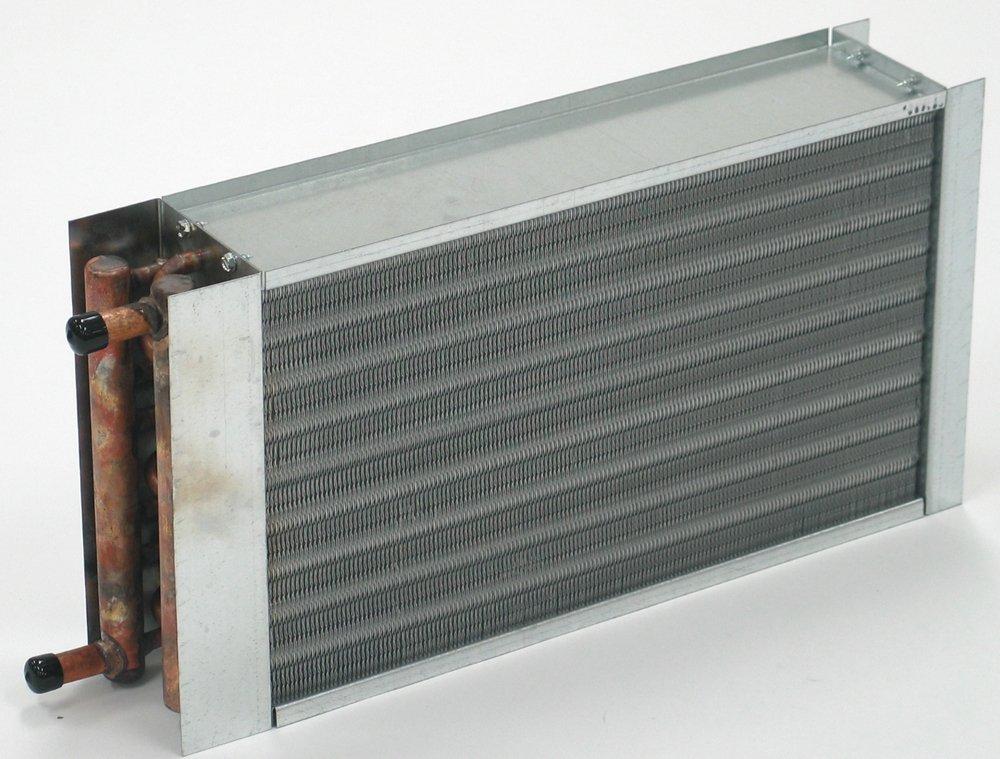

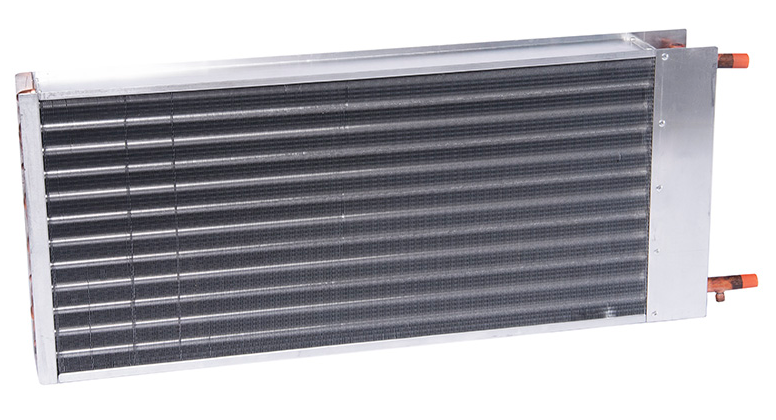

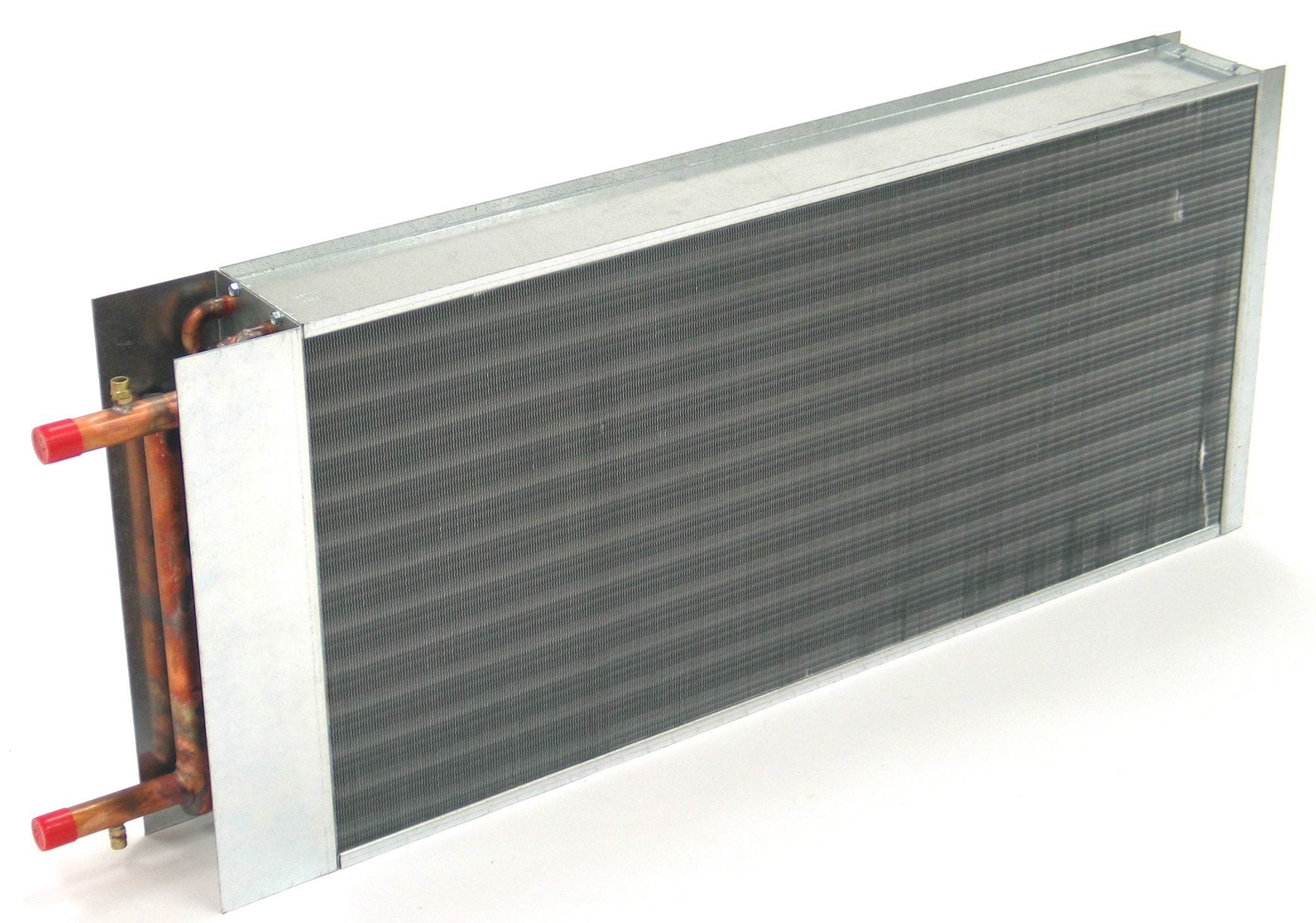

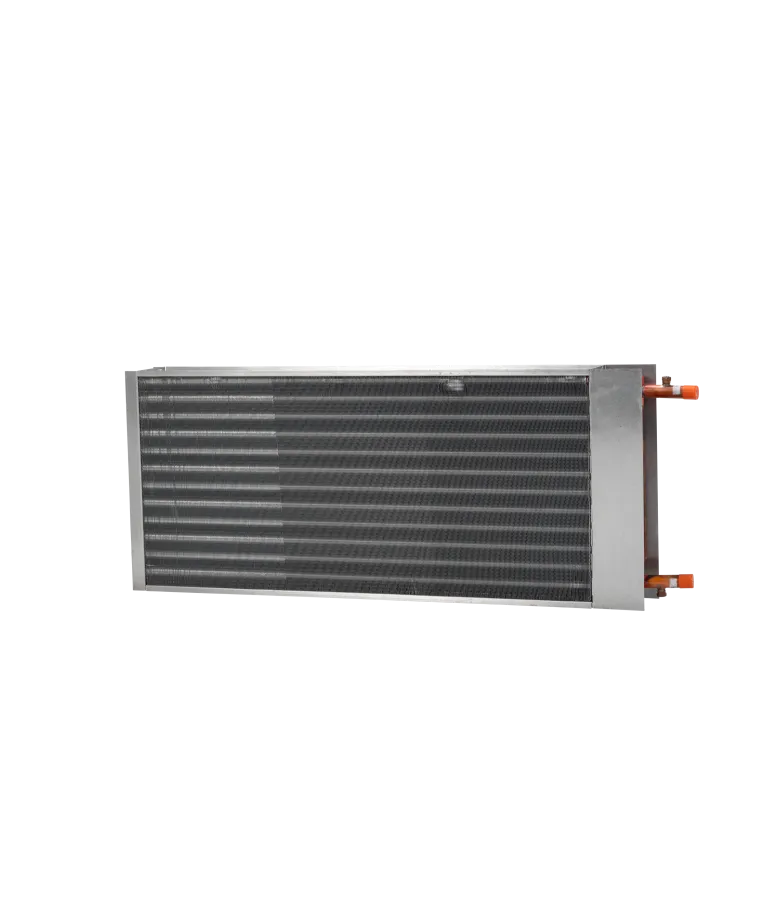

Unico HW4860 Hot Water Coil 4-5 Ton

Product Description

The UNICO HW4860 is a hot water coil designed for 4-5 ton modular units. It can be matched to a blower module for heating only or with a cooling module for both heating and cooling. Each system is pressure tested at the factory. It features corrugated aluminum fins mechanically bonded to copper tubes.

• Can be matched to a blower module for heating or heating and cooling systems
• Slide in hot water coil is supplied separately
• Each system is pressure tested at the factory

Product Highlights

The HW4860 hot water coil is designed to slide into the M4860CL1-X (horizontal hot water coil module) or the M4860V2 (vertical hot water coil module).

Product Information

Standard Information

• Brand: UNICO
• Manufacturer Part Number: HW4860

Technical Specifications

• Construction: 22 gauge galvanized steel
• Tubes: ½” diameter on staggered centers
• Fins: Corrugated aluminum fins mechanically bonded to copper tubes
• Brand: Unico
• URI Part Number: HW4860
• Vendor Part Number: HW-4860
