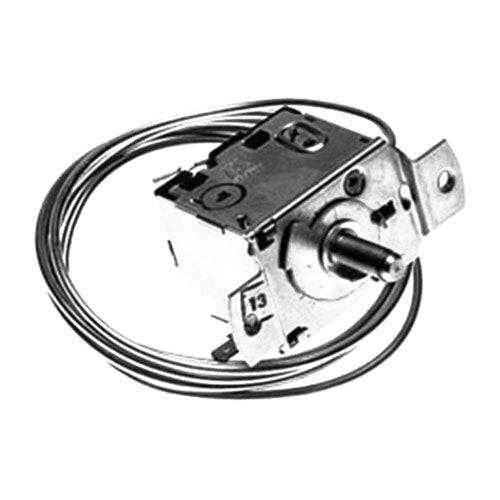

UNI LINE A30-263 Temperature Control 24/120/240/277 VAC SPST

Product Description

The Ranco A30-263 temperature control offers versatile voltage options of twenty-four, one hundred twenty, two hundred forty, and two hundred seventy-seven VAC. This single pole, single throw (SPST) configuration is reliable for various heating and cooling applications.

• Capillary length measures eighty-four inches.
• High contact ratings: twenty amperes full load and eighty amperes locked rotor at one hundred twenty/two hundred forty VAC.
• Effective temperature differential of twenty-two point five degrees Fahrenheit.

Product Highlights

This control is designed for high performance with laser-welded stainless steel bellows and high-amperage contacts. The pneumatic action is derived from vapor-filled capillary sensors, ensuring accurate temperature management.

Product Information

Standard Information

• Brand: UNI LINE
• Series: A30

Technical Specifications

• Capillary Length: 84 inches
• Configuration: SPST
• Contact Rating: 20 A Full Load, 80 A Locked Rotor at 120/240 VAC
• Contact Rating: 16 A Full Load, 60 A Locked Rotor at 277 VAC
• Pilot Duty: 240 VAC
• Differential Temperature: 22.5 deg F
• Normal On: 33.5 deg F
• Normal Off: 11 deg F
• Warm On: 47 deg F
• Cold Off: 0.5 deg F
• Cold On: 23 deg F
• Voltage Rating: 24/120/240/277 VAC
