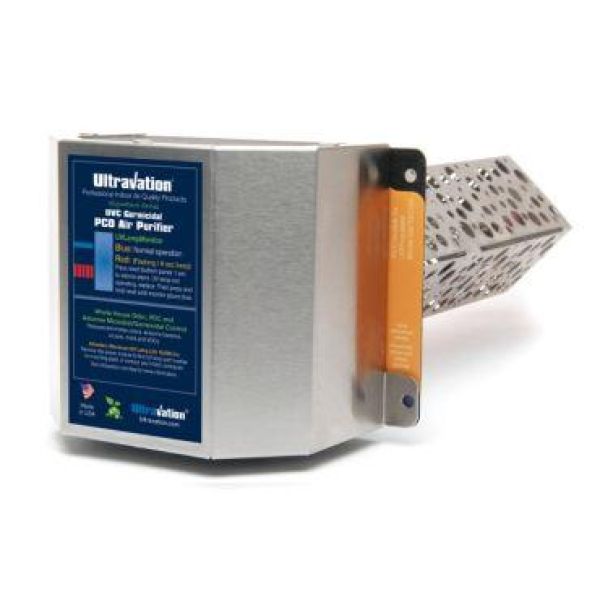

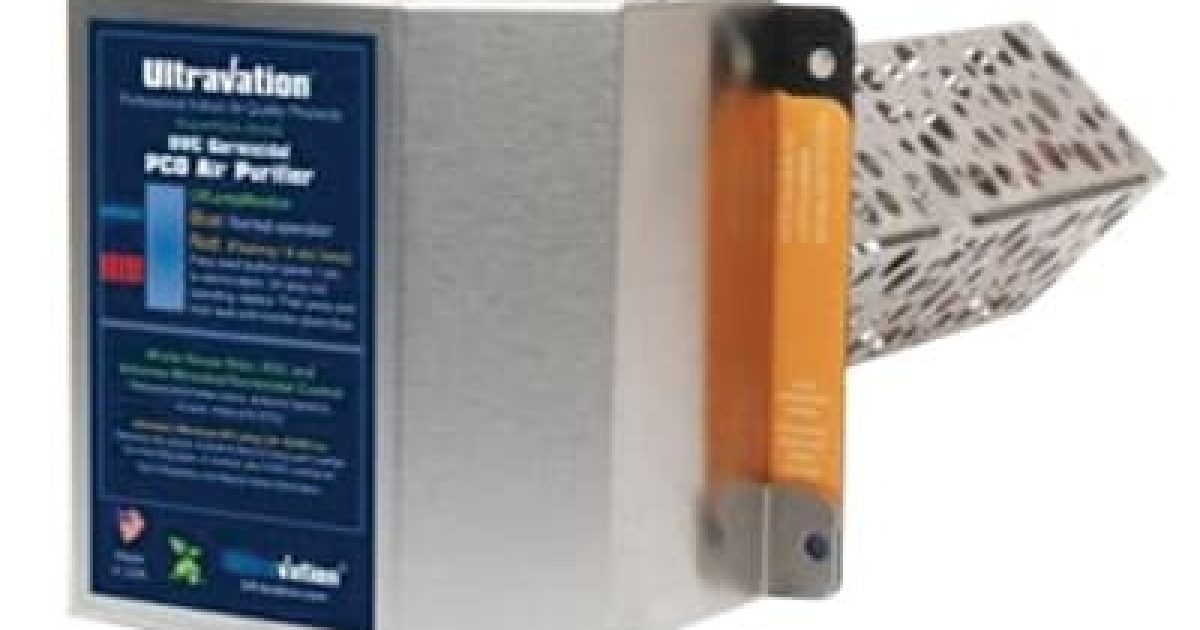

Ultravation SS-PTX-1200 UV PhotoMAX Signature Series Air Cleaner 120VAC (12 in Dual-Spectrum Lamp)

Product Description

Ultravation SS-PTX-1200 is a UV PhotoMAX Signature Series air cleaner that uses a 12 in dual-spectrum UV lamp and photo-oxidation reactor technology to reduce airborne bacteria, viruses, and odors in HVAC systems. Designed for whole-house integration, it treats air handlers up to 5 ton and spaces up to 5,000 sq ft. The unit includes a microprocessor-controlled lamp monitor, smart-power supply, and a modular stainless steel cabinet for duct installation.

• Dual-spectrum 12 in UV lamp with photo-oxidation (PCO) reactor and microprocessor-controlled lamp monitor; high-speed electronic power supply.
• Designed for HVAC integration and whole-house use; treats air handlers up to 5 ton and areas up to 5,000 sq ft; installs in ductwork with silent operation (no fans or motors).
• 304 stainless steel cabinet, compact footprint (7-1/4 in W x 4 in D); operates on 120-240 VAC; 2 years rated lamp life.

Product Highlights

Whole-house UV/PCO air purifier for HVAC systems with 12 in dual-spectrum lamp, microprocessor lamp monitor, 120-240 VAC operation, and up to 5,000 sq ft coverage.

Product Information

Standard Information

• Brand: ULTRAVATION
• Manufacturer Part Number: SS-PTX-1200
• Country of Origin: USA

Technical Specifications

• Manufacturer: Ultravation Inc.
• Manufacturer Part Number: SS-PTX-1200
• Brand: Ultravation
• Series: UVPhotoMAX Signature
• Model: SS-PTX-1200
• Input Voltage: 120 - 240 VAC
• Technology: Photo-oxidation (PCO) with dual-spectrum ultraviolet (UV)
• Lamp Size: 12 in dual-spectrum lamp
• Lamp Rated Life: 2 years
• Coverage Area: Up to 5,000 sq ft
• Compatible Air Handler Size: Up to 5 ton
• Application: For HVAC systems / whole-house integration
• Enclosure Material: 304 stainless steel cabinet
• Dimensions: 12 in L x 7.25 in W x 4 in H
• Features: Modular design; microprocessor-controlled smart-power and lamp monitor; high-speed electronic power supply; no fans or motors; direct remote power capability
• Certifications: ACCA; HARDI Certified; IHACI Certified
• UPC: 877241001352
• Country of Origin: United States
• Item Type Category: HVAC & Refrigeration / Air Purifier
• UNSPSC: 40101500
