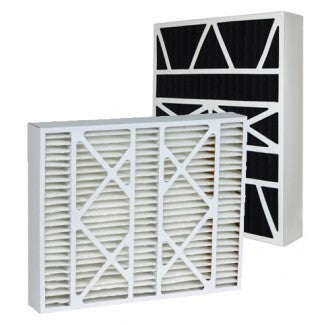

Ultravation 90-107 Pleated Air Filter 11 Merv 20x25x5

Product Description

The ULTRAVATION 90-107 is a pleated air filter rated MERV 11, designed for residential and light commercial HVAC air handling systems. Measuring 20 inches wide, 25 inches tall, and 5 inches deep, this filter fits deep-media filter housings and high-capacity filter cabinets commonly found in forced-air furnace and air handler applications. At MERV 11, it captures fine dust, pollen, mold spores, pet dander, and other mid-range particulates without excessive airflow restriction. Licensed HVAC technicians and mechanical contractors install this filter during routine preventive maintenance or system commissioning.

The 90-107 is suited for residential forced-air systems and light commercial applications where a 5-inch deep filter cabinet is installed. The 20x25x5 inch footprint fits dedicated media filter housings that accept high-capacity pleated cartridges. This filter is appropriate for systems requiring improved indoor air quality beyond standard 1-inch filter performance, without stepping up to HEPA-level filtration. Systems with allergy-sensitive occupants or moderate dust loads are common candidates for MERV 11 filtration.

Key Features

• MERV 11 rating captures fine particulates including pollen, mold spores, and pet dander
• Pleated media design increases surface area for longer service life between changes
• 5-inch depth fits high-capacity deep-media filter cabinets for extended filter intervals
• 20x25x5 inch nominal size for a wide range of compatible filter housings
• Balances particulate capture efficiency with acceptable static pressure drop for residential systems

Compatibility

Designed as an OEM-style replacement pleated air filter for 5-inch deep media filter housings accepting a 20x25x5 inch nominal filter cartridge in residential and light commercial forced-air HVAC systems.

Installation Notes

Pleated air filters of this type are installed by HVAC technicians or qualified service personnel. Before replacing the filter, set the system thermostat to off and shut down the air handler at the disconnect or breaker to prevent unfiltered air from bypassing during service. Note the airflow direction arrow printed on the filter frame and orient accordingly during installation. Follow local mechanical codes and the filter housing manufacturer's recommended replacement interval based on system runtime and environmental conditions.

Technical Specifications

• Filter Type: Pleated
• MERV Rating: 11
• Width: 20 inches
• Height: 25 inches
• Depth: 5 inches

Standard Information

• Brand: ULTRAVATION
• Manufacturer Part Number: 90-107
