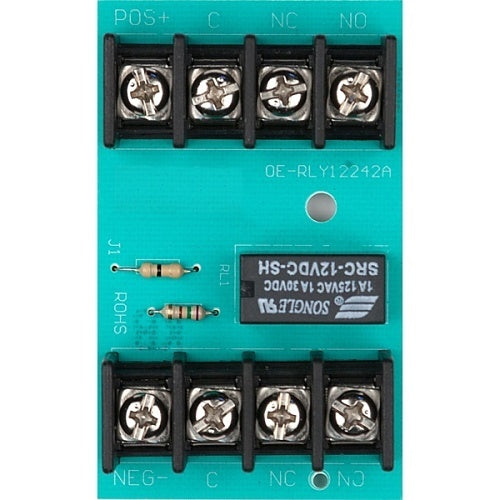

UltraTech 0E-RLY12242A Relay 1A 120VAC/2A 28VDC Module 12 or 24V DC

Product Description

The UltraTech 0E-RLY12242A is a relay module designed for various applications including intrusion systems, access control, and video surveillance. This module operates reliably with 1 amp at 120V AC or 2 amps at 28V DC. Select between 12V DC or 24V DC for flexible use. It includes double-sided foam mounting tape for easy installation.

• 12 or 24V DC selectable operation
• 1 amp 120V AC or 2 amp 28V DC contact options
• Low power consumption with a current draw of 15 mA

Product Highlights

Reliable relay operation with versatile voltage options.

Product Information

Standard Information

• Brand: UltraTech
• Manufacturer Part Number: 0E-RLY12242A

Technical Specifications

• Operating Voltage: 12 or 24V DC
• AC Input Required: 12V DC 1.8VA, 24V DC 3.6VA
• Operating Temperature: -13°F to 131°F
• Storage Temperature: -13°F to 158°F
• Humidity Range: 0 to 95%
• Contact Type: DPDT
• Application: Access Control, Intrusion, Video Surveillance
