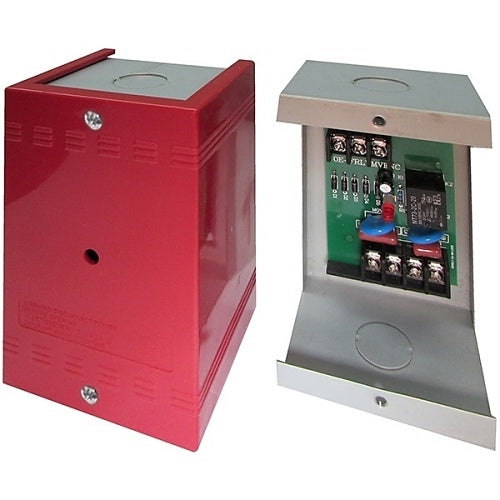

UltraTech 0E-FRLYMVENC Control Relay Multi-Voltage, Standalone

Product Description

The UltraTech 0E-FRLYMVENC is a multi-voltage relay designed for a variety of applications. It provides up to ten amperes of resistive contact for system status, electrical loads, and general-purpose switching. The inputs can connect to one of four voltage options by wiring to the correct terminal. A red LED on the device shows when the relay coil is energized.

• Multi-voltage operation: 24VDC or 24/120/230VAC
• DC control input available with polarized coil
• Dry Form C SPDT contacts for flexible use

Product Highlights

This relay is suitable for various systems such as fire alarms, security systems, HVAC, and lighting controls. It is effective for energy management purposes as well.

Product Information

Standard Information

• Brand: UltraTech
• Manufacturer: Ultratech

Technical Specifications

• Contact Type: SPDT
• Current Rating: 10A
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Voltage Options: 24VDC, 24VAC, 120VAC, 230VAC
• Current Draw: 11mA@18VDC; 22mA@35VDC; 38mA@18VAC; 76mA@35VAC; 29mA@120VAC, 60Hz
• UL Listing: UL 864
• Humidity Range: 10% to 85% RH
