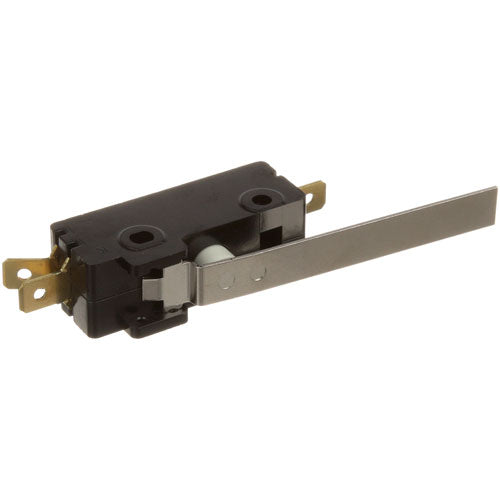

MICROSWITCH Power (3.5 / 1 / 0.5) ULTR18185 for Ultrafryer ULFULTR18185

Product Description

This item for Ultrafryer ULTR18185 is a microswitch designed for various applications. It serves as a door micro lever switch with momentary action. This switch supports a current of fifteen amps and voltages of up to 250 volts and 125 volts, making it suitable for numerous devices.

• Door micro lever switch for precise control.
• Rated for 15 amps and compatible with 250V/125V systems.
• SPST configuration with quarter tab terminals.

Product Highlights

This microswitch is ideal for controlling equipment within the food service industry. It is compact, allowing for easy installation in tight spaces.

Product Information

Standard Information

• Product Name: MICROSWITCH

Technical Specifications

• Current Rating: 15 amps
• Voltage Rating: 250V/125V
• Actuation Type: Momentary
• Switch Configuration: SPST
• Terminal Type: 1/4 tab terminal (3)
• Lever Length: 2-3/8 inches
• Length: 3.5 inches
• Width: 1 inch
• Height: 0.5 inches
